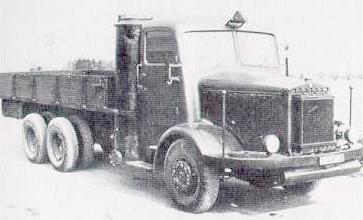

Tatra 81H
Years of production: (1940?)-1942
6x6 6,5-ton cargo truck
Overall production: 220 (including Tatra 81)
Engine: water cooling Imbert gas producer V8-cyl OHV, 14726cc, 150hp/?rpm
Dimensions: length - mm, width - ?mm, height - ?mm
Cargo platform: length - 9030mm, width - 2500mm, height - 2750mm
Wheelbase: 4560+1220mm
Front wheel track: ?mm, leaf-spring suspension
Rear track: ?mm, inverted leaf-spring suspension
Road clearance: ?mm
Water ford depth: ?mm
Turning radius: ? m
Compression ratio: ? : 1
Bore/Stroke: ?/?mm
Carburetter: ?
Battery: ? Volt, ? Ah
Radiator: from 7 replaceable standard sections
Clutch: ?
Gearbox: 4-speed + back
Ratios: I - ?, II - ?, III - ?, IV - ?
Transfer box: 2-speed, ratios: highway - ?, offroad - ?
Differential ratio: ?
Air brakes: on all wheels(?), hand brakes - on ... (?)
Weight: 8000 kg
Maximal speed on highway: ? km/h
Tyres: 9,75x20 inches
Fuel tank capacity: ? L
Fuel consumption: ? L/100km
Photos and data are from:
Bart Vanderveen's book "Historic Military Vehicles Directory", "After the Battle" publication, 1989.
