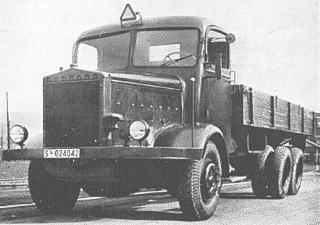

Tatra 81
Years of production: 1939-1942
6x6 6,5-ton cargo truck
Overall production: 220 (including Tatra 81H)
Engine: water cooling V8-cyl OHV, diesel 12.464cc 160hp/2000rpm
Dimensions: length - 8750mm, width - 2500mm, height - 2750mm
Cargo platform: length - 5900mm, width - 2350mm, board height - 500mm
Wheelbase: 4560+1220mm
Front wheel track: 2055mm, leaf-spring suspension
Rear track: 1800mm, inverted leaf-spring suspension
Road clearance: 260mm
Water ford depth: ?mm
Turning radius: ? m
Compression ratio: 14 : 1
Bore/Stroke: 115/150mm
Injector: Bosch - PE 8 B 75 D
Battery: ? Volt, ? Ah
Radiator: from 7 replaceable standard sections
Clutch: ?
Gearbox: 4-speed + back
Ratios: I - ?, II - ?, III - ?, IV - ?
Transfer box: 2-speed, highway - ?, offroad - ?
Differential ratio: 3,19 : 1
Air brakes: on all wheels, hand brakes - on ... (?)
Weight: 8 ton
Maximal speed on highway: 65 km/h
Tyres: 9,75x20 inches
Fuel tank capacity: ? Ltr.
Fuel consumption: 45 Ltr./100km
Photos and data are from:
BAhR Automotive History Pages,
Bart Vanderveen's book "Historic Military Vehicles Directory", "After the Battle" publication, 1989.
Thanks for help to Liucijus Suslavičius (Vilnius), automobile historian and author of numerous publications.
