Oldtimer picture gallery. Cars. Tatra 57A.
Tatra 57A
(Data for limousine)
Years of production: 1935-1938
Overall production: 22000 units, including 1931-1935 Tatra-57 and 1938-1942, 1947-1948 Tatra-57B
Body types: 2-door limousine, cabriolet, polokabriolet (cabrio-limousine), roadster, dodavka (pickup).
Engine: 20hp/3000rpm, aircooled 4-cyl Boxer OHV, 1155cc
Bore/Stroke: 70/75 mm
Length: 3720mm, width: 1560mm, height: ?mm (data for 2-seater roadster)
Wheelbase: 2550mm
Carburetter: vertical, Zentith or Amal
Gearbox: 4 speeds + rear
Weight: 870 kg (2-seater roadster), 900 kg (2-seater polokabriolet), 1070 kg (2-seater coupe)
Mechanical brakes on all wheels
Maximal speed: 90 km/h
Tyres: 5,25-16 inches
Fuel tank capacity: ? L
Fuel consumption: 9 - 11 L/100km
Price: ?

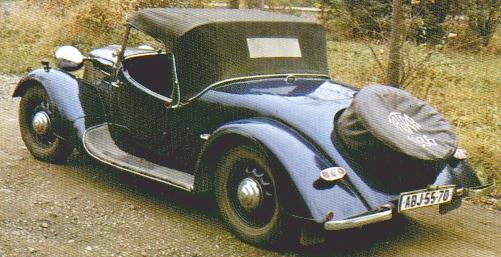

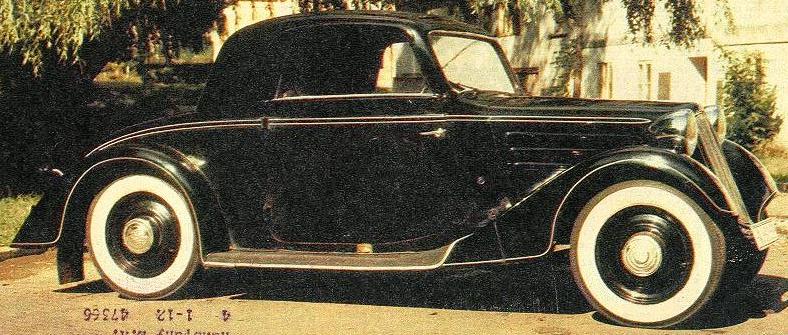

Photos are from "Svet Motoru" magazine, Czechoslovakia.
Thanks for help to Paul Seabury, England.
