Mercedes-Benz 170V (W136)

Years of production: 1935-1942,
1946-1950 (-1953)
Overall production: 71973 (+ 989 vans)
before 1942 , see Production table
Body modifications (price in RM):
2-door limousine (3750 RM), 1936-42
4-door limousine (3850 RM), 1936-42,
most popular
4-door cabriolimousine (3980 RM),
1937-42
2-door tourenwagen (4500 RM), 1936-37
4-door tourenwagen (4600 RM), 1937-40
Cabriolet B (4-light) (4750 RM), 1936-40, most popular among cabriolets
14k photo of 1939 Mercedes-Benz 170V Cabrio-Limousine, interior11k photo of Mercedes-Benz 170V Limousine of Wehrmacht72k photo of 1940 Mercedes-Benz 170V Cabriolet BRoadster 2(+2) (5500 RM), 1939-40
Cabriolet A (5980 RM), 1937-40
Polizei-Kübelsitzer (4350 RM),
1937-1938
Kübelsitzer (Kfz), 1938-1942
Kastenlieferwagen (delivery van)
(3900 RM), 1938-1942
Sanitätswagen
170VG - gas generator car, 1939-1943
Engine: 38hp/3200rpm, water cooled petrol straight 4-cyl. 4-stroke SV, 1,697cc
(by non-confirmed data pre-war 170V with Diesel motor existed)
Compression ratio: 6,0 : 1
Bore/Stroke: 73,5/100mm

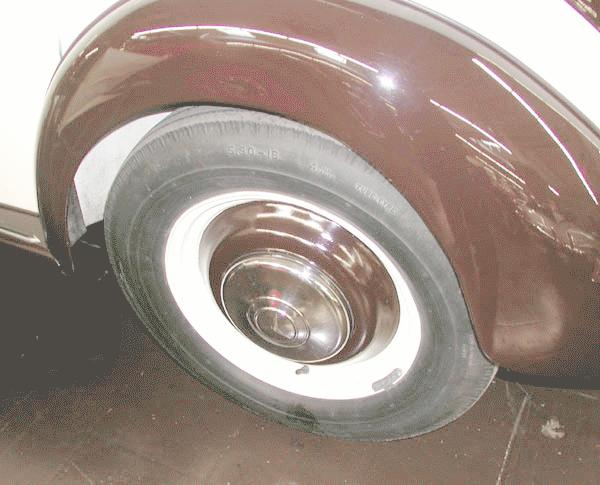

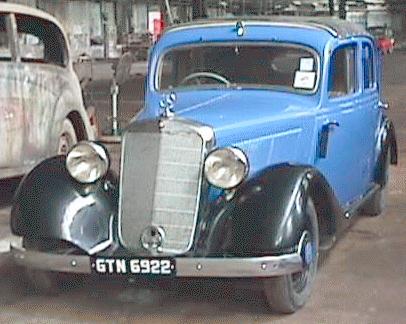

39k photo of 1940 Mercedes-Benz 170V Cabriolet B, rear wheel43k photo of 1937 Mercedes-Benz 170V Cabriolet A, dashboard29k photo of 1938 Mercedes-Benz 170V Cabrio-Limousine of Aniruddh KasliwalPistons type and material:
Nelson-Bonalite, AC alloyed aluminium
Cold clearance between tappet and valve
stem: intake - 0,12mm, exhaust - 0,12mm
Length: 4270mm, width: 1570mm,
height: 1560mm
Wheelbase: 2845mm
X-form oval-tubular frame
Front wheel track: 1320mm; toe-in: 6 - 8 mm; camber: 1o; caster: 4o

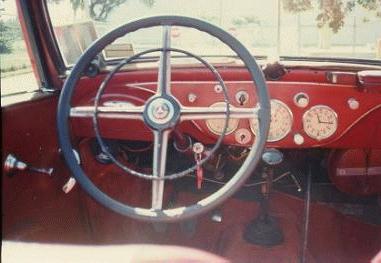

56k photo of 1940 Mercedes-Benz 170V Cabriolet B, dashboard17k photo of 1939 Mercedes-Benz 170V Cabrio-Limousine, dashboard15k photo of 1941 Mercedes-Benz 170V 4-door Limousine, dashboardRear track: 1310mm
Rear axle road clearance: 205mm
Turning radius: 5,5m
Oil filter: absorbing ECU
Carburettor: Solex 30BFLV(S), downdraft vertical
Dimensions (in mm and conditional units):
diffusor - 23,5mm; main jet - 112,5 x 51 cu; sprayer jet - 200cu (winter - 170cu); idling jet - 0,50mm
Ignition system: battery (Bosch, 6V), battery capacity - 75 A*h (under driver's seat)
14k photo of 1939 Mercedes-Benz 170V Cabriolet A, motor10k photo of 1939 Mercedes-Benz 170V Cabriolet A, rear compartment10k photo of Mercedes-Benz 170V Cabriolimousine of Wehrmacht, CreteInterrupter-distributor type:
Bosch VE4-BS197;
contact clearance: 0,4 - 0,5 mm
Generator type and power:
?; 90W (since late 1940 - 130W)
Starter type and power: ?; 0,6hp
Spark plugs type:
Bosch DM95TI; 18mm; electrode clearance: 0,6 - 0,7 mm
Cylinder firing order: 1-3-4-2

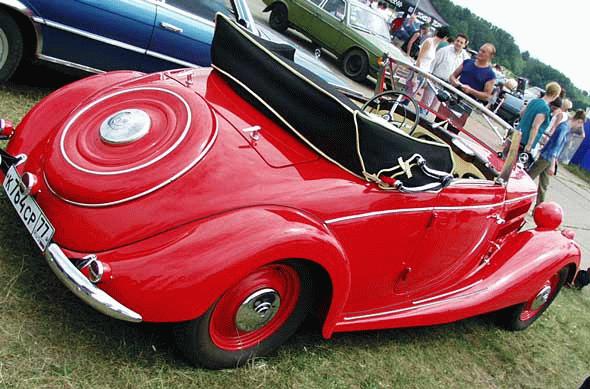

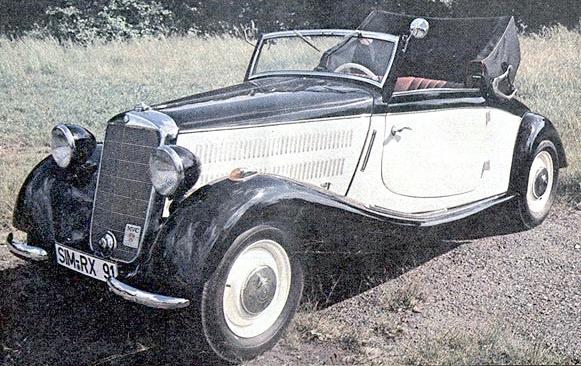

13k photo of 1939 Mercedes-Benz 170V Cabrio-Limousine67k photo of Mercedes-Benz 170V Cabriolet A56k photo of 1937 Mercedes-Benz 170V Cabriolet AClutch: dry single plate
Clutch pedal free run: 25mm
Gearbox: ZahnradFabrik (Aphon)
ZF-AKS-15, 4 forward, 1 back,
synchronized III and IV
(in 1940-1942 - synchronized I - IV)
Ratios (1936-1939): I - 4,32 or 4,17, II - 2,47, III - 1,42, IV - 1,00, rear - 3,72
Differential ratio: 4,125, bevel gears with spiral teeth
31k photo of Mercedes-Benz 170V Limousine of Wehrmacht19k photo of 1937 Mercedes-Benz 170V instruments14k photo of 1939 Mercedes-Benz 170V Cabrio-LimousineFront suspension: independent
Rear suspension: independent
Hydraulical shoe brakes on all wheels
Weight: 1100 - 1160 kg
Maximal speed: 108 km/h
Tyres: 5,25x16 inches
Tyre pressures (atmospheres): front - 1,5, rear - 2,0
Fuel tank capacity: 39+3 L (since 1939 - 43+3 L)

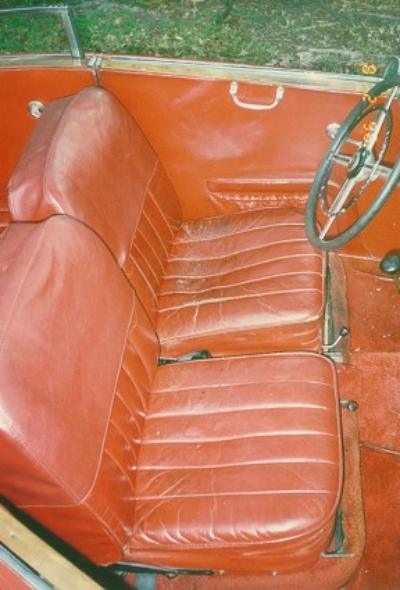

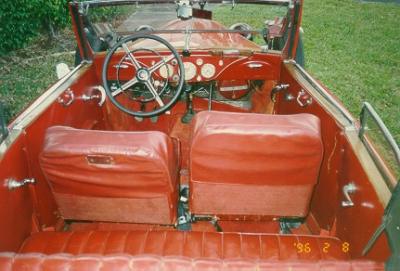

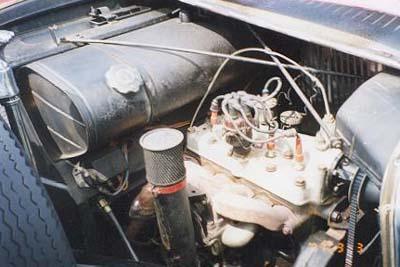

pre-1945 Mercedes-Benz 170V 4-door Limousine23k photo of 1937 Mercedes-Benz 170V Cabriolet B, interior23k photo of 1938 Mercedes-Benz 170V strange Cabriolet B, engineFuel consumption: 9,5-11,5 L/100km
Cooling system capacity: 11,0 Ltr.
Oil carter capacities:
engine - 5 Ltr.; gearbox - 1,5 Ltr.;
differential - 2,2 Ltr., steering - 0,25 Ltr.
Hill climbing: 35o with 1st gear

Production table by body types for Werk Sindelfingen (by Werner Oswald):

Body type\Year     1935                1936  1937  1938  1939  1940  1941     1942   Total

Limousine 2 Türen  13 (2- and 4-door)  3414  2943  1945  1488   116                   9906 (+13)
Limousine 4 Türen  13 (2- and 4-door)  5403  9957  9974  9613  1818   916            37681 (+13)
Cabrio-Limousine                       2384  3500  2723  2424   565   147            11743
Cabriolet B                            1182  1786  1976  1888   652   584             8068
Cabriolet A                              76   204   272   198    34    10              794
Roadster                                 82    70    73    38     8                    271
Tourenwagen                             158   314   220   226    48    27              993
Kastenwagen                              44    78   100   129   280   200              831
Kübelwagen                              125    11   968* 1973  7738  5500            16315

Total              13                 12868 18863 18251 17977 11259  7384 appr.3400  86615
*) - Most of them since October 1938.

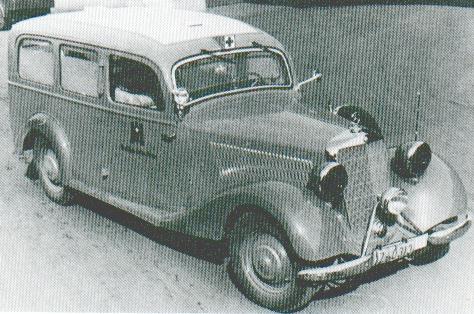

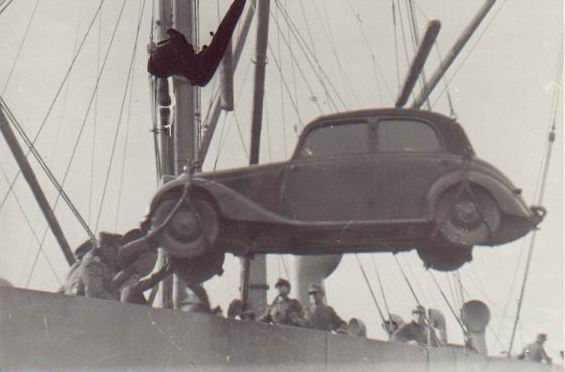

54k photo of 1937 Mercedes-Benz 170V Cabriolet A42k photo of prototype Mercedes-Benz 170V Sanitätswagen28k 1940? photo of Mercedes-Benz 170V Cabriolimousine of Wehrmacht, unloading in Trondheim
Photos and data are from:
"Avtopilot" magazine, Russia, article by
Denis Orlov, photo Vasiliy Shaposhnikov.
Specialcar Magazine.
Peter Hacker's Mercedes-Benz WWW-album, visit this site!
Schweizer Mercedes-Benz Veteranenclub, Switzerland (in German).

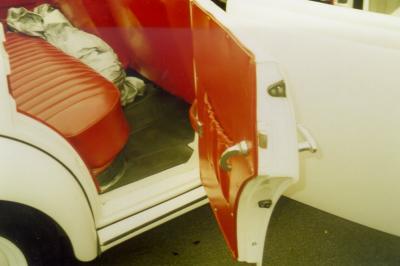

14k photo of 1938 Mercedes-Benz 170V 4-door Tourer, rear door12k photo of 1939 Mercedes-Benz 170V Cabrio-Limousine23k photo of 1938 Mercedes-Benz 170V strange Cabriolet B"Svet Motoru" magazine, Czechoslovakia.
Photo of 1938 Cabriolimousine (GTN
6922) was kindly sent by the owner,
Aniruddh Kasliwal from Bombay, India.
(28 IV 2000) Aniruddh Kasliwal is
seeking for fuel gauge assembly, steering
wheel and second hand spares for 170V.
Concourse D'elegance of Eastern United States.
14k WW2 photo of Mercedes-Benz 170V Limousine of Wehrmacht15k photo of 1941 Mercedes-Benz 170V 4-door Limousine67k photo of 1939 Mercedes-Benz 170V Cabriolet AduPont REGISTRY.
Werner Oswald's book "Mercedes-Benz
Personenwagen 1886-1986", 1987,
Motorbuch Verlag Stuttgart.
Classic Car Collection (France)
Emil Zasmeta, Plzen, Czech Rp.,
Sergey Riabsev (Cartinki.RU)
Molotok Auction (Russia).

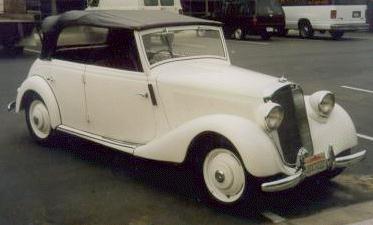

57k photo of Mercedes-Benz 170V Cabriolimousine of Wehrmacht, Tripoli13k photo of 1939 Mercedes-Benz 170V 4-door Limousine14k photo of 1938 Mercedes-Benz 170V 4-door tourerMaksim Belousov (Cherepovec,
Vologda region, Russia).
Mobile.de (Germany)
Trader Online
Veteran Bazar & Museum, Czech Rp..
Mercedes-Benz Veteranenclub
Deutschland e.V.
.
eBay Deutschland.
12k photo of 1937 Mercedes-Benz 170V Cabrio-Limousine9k photo of 1937 Mercedes-Benz 170V Roadster41k photo of 1936 Mercedes-Benz 170V Cabriolet BKlassische Automobile, Deutschland.

What else in the net:
Mercedes - Benz 170 V (in Polish) -
homepage of Marek Nadwyczawski,
Szczecin, Poland.


13k photo of 1937 Mercedes-Benz 170V 4-door Limousine17k photo of 1937 Mercedes-Benz 170V non-standard Cabriolet B39k photo of 1940 Mercedes-Benz 170V Cabriolet B28k photo of 1939 Mercedes-Benz 170V Cabriolet A

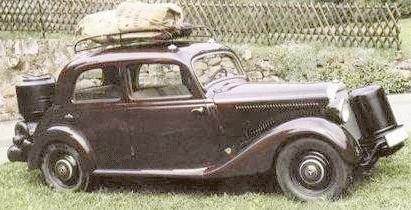

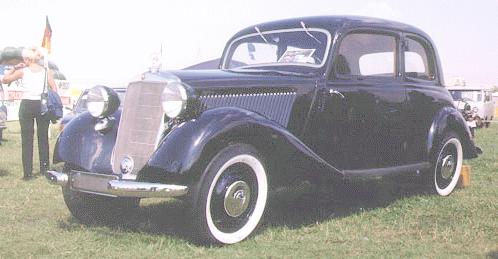

34k photo of 1937 Mercedes-Benz 170V Cabriolet A24k photo of Mercedes-Benz 170V 2-door Limousine36k photo of 1936 Mercedes-Benz 170V 2-door Tourenwagen26k photo of 1939 Mercedes-Benz 170VG 4-door Limousine

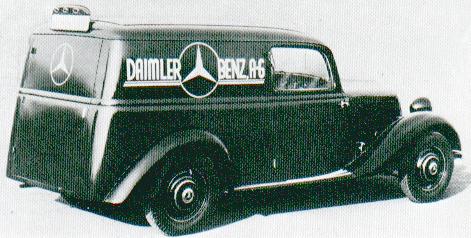

1939 Mercedes-Benz 170V Cabriolet B30k photo of 1938-42 Mercedes-Benz 170V Kastenlieferwagen20k photo of 1937 Mercedes-Benz 170V non-standard Cabriolet B42k photo of 1937-38 Mercedes-Benz 170V Polizei Kuebelsitzwagen

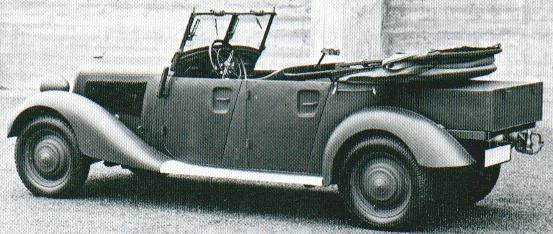

1939 Mercedes-Benz 170V Cabriolet A68k photo of Mercedes-Benz 170V 2-door Limousine87k photo of 1939 Mercedes-Benz 170V Cabriolet A24k photo of 1937-1940 Mercedes-Benz 170V 4-door Tourenwagen

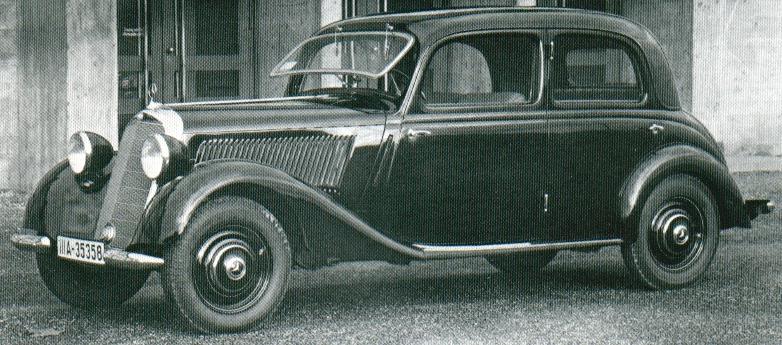

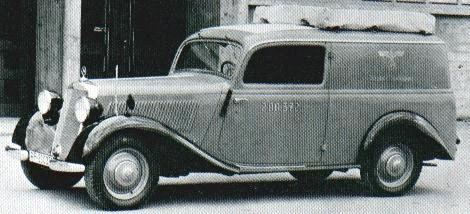

30k photo of 1938-42 Mercedes-Benz 170V Reichspost Kastenlieferwagen43k photo of 1936-37 Mercedes-Benz 170VR Geländesportwagen75k photo of 1936 Mercedes-Benz 170V 4-door Limousine42k photo of 1937-42 Mercedes-Benz 170V  2-door Limousine

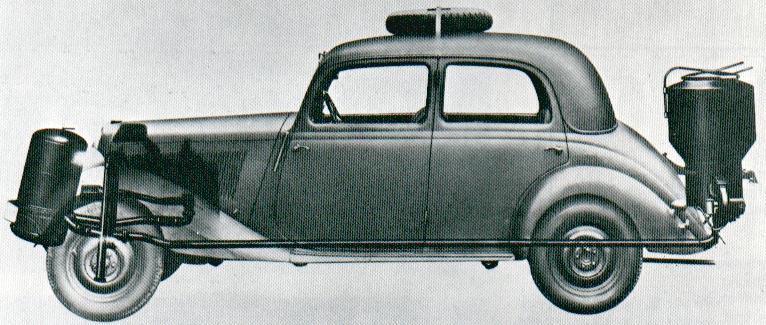

11k photo of 1939 Mercedes-Benz 170V 2-door Limousine6k photo of 1938 Mercedes-Benz 170V Cabriolet A35k photo of 1937-38 Mercedes-Benz 170V Polizei Kübelsitzwagen65k scheme of Gas-Generator system on Mercedes-Benz 170VG, 1939-43

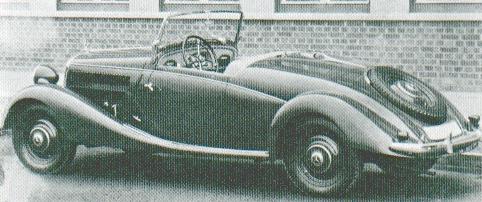

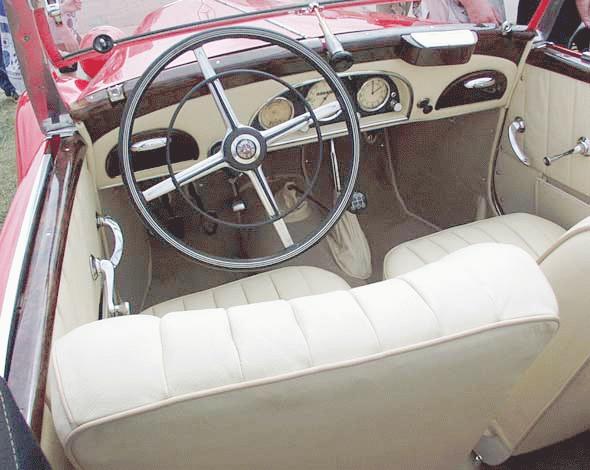

35k photo of 1937-42 Mercedes-Benz 170V Cabrio-Limousine35k photo of 1936 Mercedes-Benz 170V Cabriolet A27k photo of 1939-40 Mercedes-Benz 170V Roadster23k photo of 1937-40 Mercedes-Benz 170V Cabriolet B
