Oldtimer picture gallery. Trucks. MAZ-200.

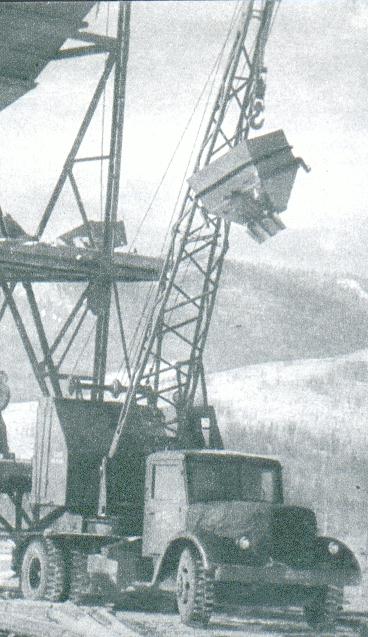

49k image of MAZ-200 crane49k photo of MAZ-200 fire ladder
MAZ-200
(data for 1964 MAZ-200)
Years of production: 1951 - 1965 (MAZ-200), 1951 - 1957 (MAZ-200G), 1962 - XII 1965 (MAZ-200P), 1947 - 1950 (YaAZ-200), ? (MAZ-200D)
Overall amount: ? units
4x2 7000kg truck (MAZ-200G has high boards transforming into side-benches)
Engine: YaAZ-M204A diesel: 110hp/2000rpm, 4-cyl, 4650cc (MAZ-200P - YaMZ-236 diesel: 180hp/2100rpm, V6-cyl, 11150cc)
Bore/Stroke: 108/127 mm (MAZ-200P -130/140 mm)
Length: 7620mm, width: 2650mm, height: 2430mm
8k image of MAZ-200Wheelbase: 4520mm, rear axis clearance: 290mm
Front wheel track: 1950mm
Rear track: 1920mm
Turning radius on front outer wheel: 9.2 m
Compression ratio: 16.0:1 (MAZ-200P - 16.5:1)
Gearbox: 5 speeds
Pneumatical brakes
Weight (without load): 6500 kg (MAZ-200G - 6750 kg, MAZ-200P - 6300 kg)

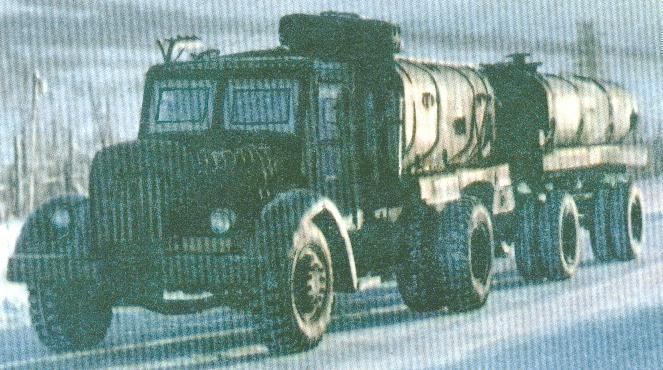

64k image of MAZ-200 tank truck84k image of MAZ-200Maximal speed (loaded, highway): 65 km/h (MAZ-200G - 52 km/h)
Tyres: 12.00-20 inches
Fuel capacity: 225 L
Fuel consumption: 27.5 L/100km (diesel)
Photos are from:

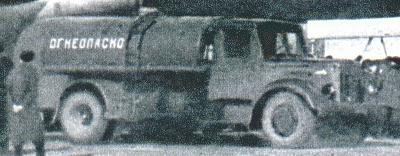

MAZ-200 with ZiF compressorMAZ-200 tank truck17k image of MAZ-200 Aeroflot fuellerLev Shugurov's book "Avtomobili Rossii i SSSR", Moscow, "Ilbi", Russia, 1993,
Old issues of "Ogonyok" magazine, USSR,
Denis Orlov, automobile history journalist, Moscow.
Thanks for help to Alexander Andryushin, Moscow.
In 1947-1950 YaAZ produced YaAZ-200 with horizontal grille bars and mascot of bear.
