Oldtimer picture gallery. Trucks. JaAZ.
1934 - II 1960, JaAZ - Jaroslavskiy AvtoZavod №3, Jaroslavlj, USSR. For post-1959 see KrAZ.
1925-1934, JaGAZ - Jaroslavskiy Gosudarstvennyi AvtoZavod №3, Jaroslavlj, USSR.
Pre-war trucks, tractors and buses:
Ja-11, 12, 13, 13F, 1942-1946, 2-ton full-track artillery tracktor:
Ja-12, 1943-1946, GMC 4-71 motor, 112hp, 2919 built (1943 - 218, 1944 - 965, 1945 - 1666 (1046 - to 9 V 1945), 1946 - 70), 64k photo
Ja-13F, 1944-1945, ZiS-MF motor, 95hp, 5 built by JaAZ (1944 - 3, 1945 - 2), in 1946 production transferred to Zavod Nr.40 (Mytischi, Moskva region), 18k photo
Ja-13, 1943, ZiS-5 motor, 73hp, 71 built
Ja-11, 1942, prototype, 2 x GAZ-M motors, 86hp, 5 built, 39k photo

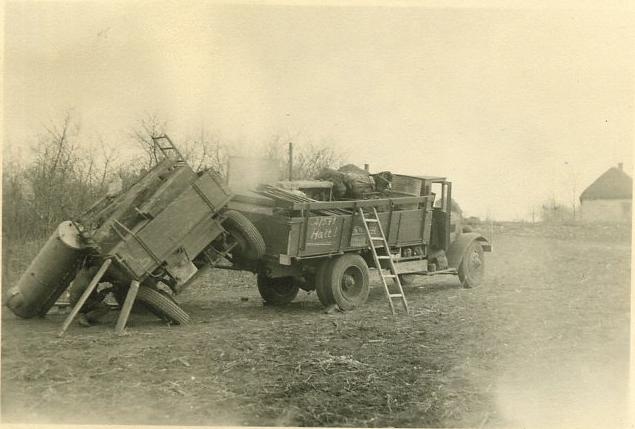

JaG-6, 1936-1942, 5-ton 4x2 cargo truck, 73hp ZiS-5 motor, 8074 built
JaG-6M, 1938-1941?, JaG-6 with 93,5hp Hercules YXC motor, 50 built (45 in 1938 + 5 in later years)
JaG-6A, 1940, JaG-6 with 82hp ZiS-15 motor, 15 built
JaG-6 NATI Kodzhu, 1938, JaG-6 with 105hp diesel motor, 2 built, 63k photo
JaG-6 with NATI gas producer, 1937, 1 built
JaS-3, 1936-1942, JaG-6 based 4-ton 4x2 dump truck, 4765 built, 37k-, 162k- and 107k photo

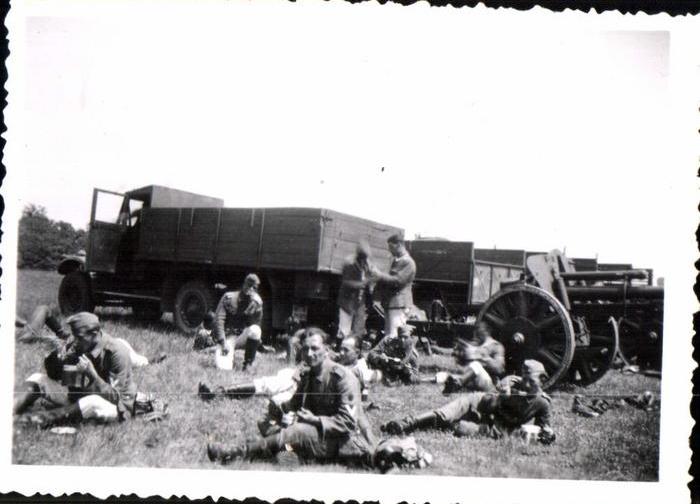

JaG-10, 1932-1940, 8-ton 6x4 cargo truck, 93,5hp Hercules YXC-B motor, 322 built, 4k-, 44k- and 11k photo
JaG-10, 1938-1940, 8-ton 6x4 cargo truck, 103hp Hercules YXC-3 motor, 10 built
JaG-10, 1934, 8-ton 6x4 cargo truck, diesel motor, 1 built, 94k photo
JaS-4, 1939, JaG-7 based 4,5-ton 4x2 dump truck, 1 built, 9k photo
JaG-7, 1938, 5-ton 4x2 cargo truck, 1 built, 9k photo
JaG-7 bus, 1938, JaG-7 based, 85hp ZiS-16 motor, 1 built, 6k photo
JaG-4, 1934-1936, 5-ton 4x2 cargo truck, 73hp ZiS-5 motor, 5348 built

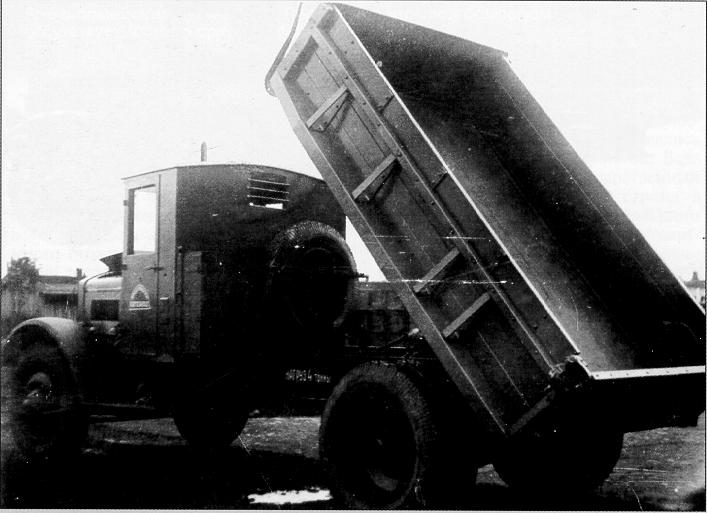

JaS-1, 1935-1936, JaG-4 based 4-ton 4x2 dump truck, 573 built, 164k-, 49k and 9k photo
JaG-5, 1934-1935, 5-ton 4x2 cargo truck, 73hp ZiS-5 motor, JaG-4 export version for Mongolia, 16 built, 181k photo
JaSP, 1935, JaG-4 based 2-ton semi-tractor truck, 93,5hp Hercules YXC-B motor, 1 built, 60k photo
JaG-3, 1932-1934, 4-ton 4x2 cargo truck, 60hp AMO-3 motor, 2680 built, 40k- and 37k photo
JaG-3 with gas producer, 1933, ?-ton 4x2 cargo truck, 1 built
Ja-5, 1929-1934, 5-ton 4x2 cargo truck, 93,5hp Hercules YXC-B motor, 2284 built, 11k- and 151k photo

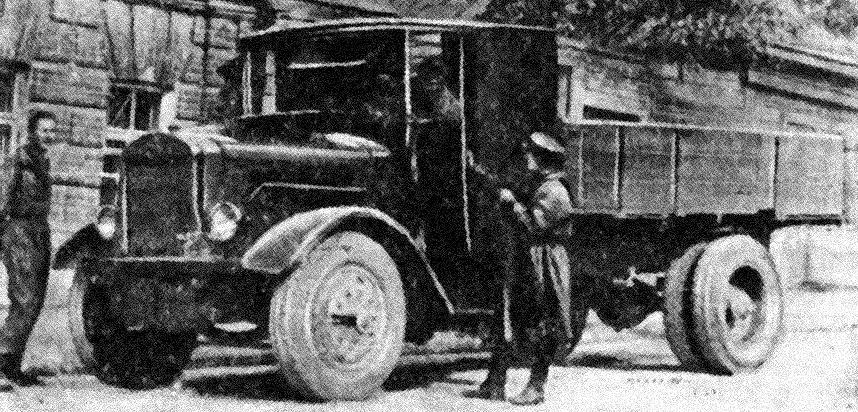

Ja-5 with BAMM gas producer, 1934, ?-ton 4x2 cargo truck, 1 built, 139k photo
Ja-5 Kodzhu, 1933, Ja-5 with 82hp own Kodzhu diesel motor, 2 built, 22k photo

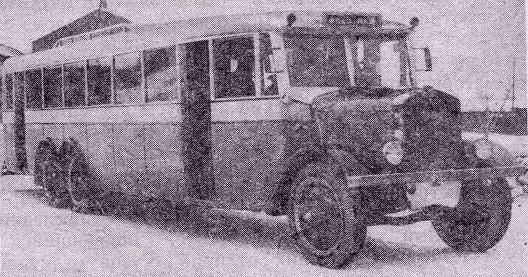

JaA-2, 1934, 6x4 100-passenger (54-seater) bus, 120hp Continental 22R motor, 1 built, 56k b/w photo
Ja-12D, 1933, 4x2 tractor for 10-ton semitrailer by Lapeer-Houlmore, 102hp Continental 21R motor, 1 built, 85k photo

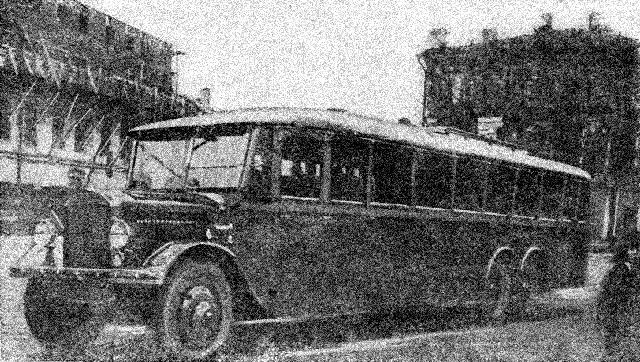

Ja-6, 1929-1932, 27-35-pass. bus, ? built, 98k-, 61k- and 72k photo
chassis for JaA-2, 1932, 6x4 80-passenger (50-seater) bus (body by ATUL, worktime 1933-1937), 103hp Hercules YXC-B motor, 1 built
JaG-12, 1932, 12-ton 8x8 cargo truck, 120hp Continental 22R motor, 1 built, 12k photo

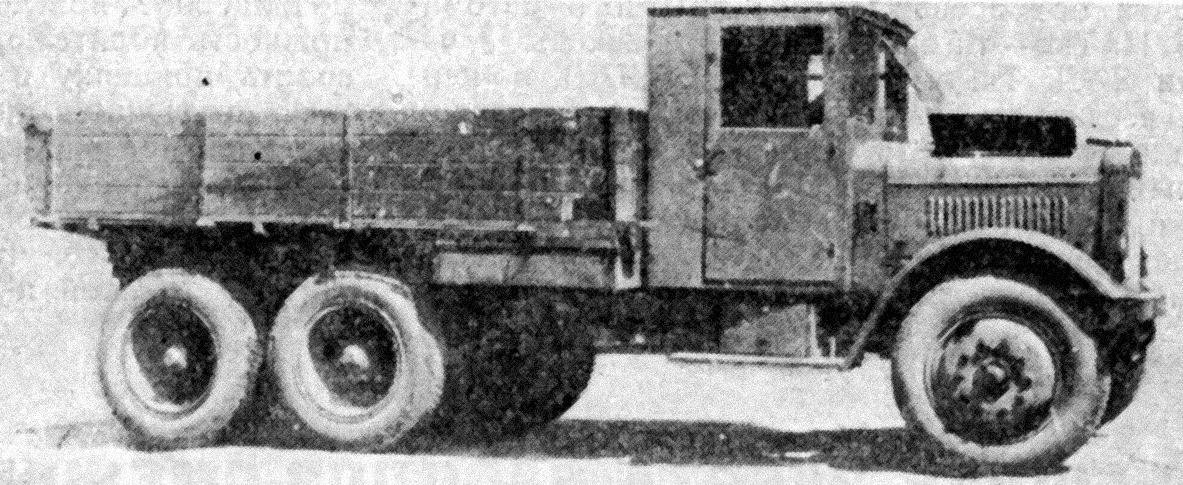

Ja-9D, 1932, 6x4 8-ton truck, one truck - 102hp Continental 21R, another one - 93,5hp Hercules YXC-3 motor, 2 built, 150k photo
Ja-8D, 1932, 4x2 5-ton truck, 102hp Continental 21R motor, 4x2-speed gearbox, wheelbase - 4750mm, 1 built
Ja-8, 1932, 4x2 5-ton truck, 102hp Continental 21R motor, 4-speed gearbox, wheelbase - 4750mm, 1 built
Ja-7D, 1932, 4x2 5-ton truck, 102hp Continental 21R motor, 4x2-speed gearbox, wheelbase - 4250mm, 1 built
Ja-7, 1932, 4x2 5-ton truck, 102hp Continental 21R motor, 4-speed gearbox, wheelbase - 4250mm, 1 built

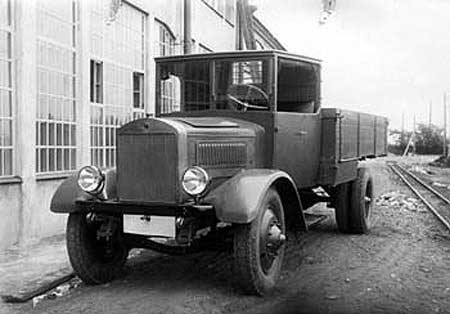

Ja-4, 1928-1929, 4-ton 4x2 cargo truck, 70hp Mercedes motor, 137 built, 21k- and 87k photo

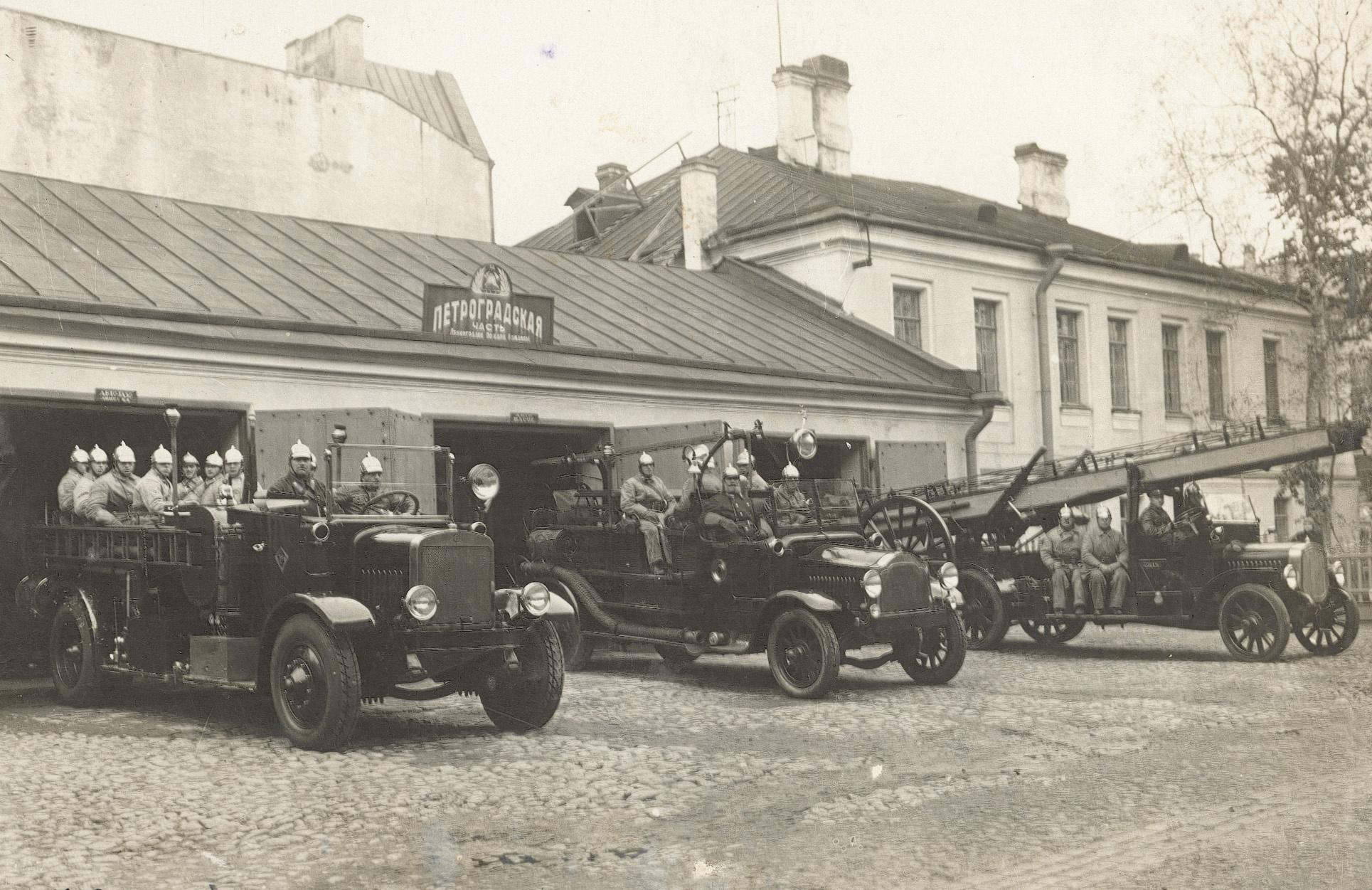

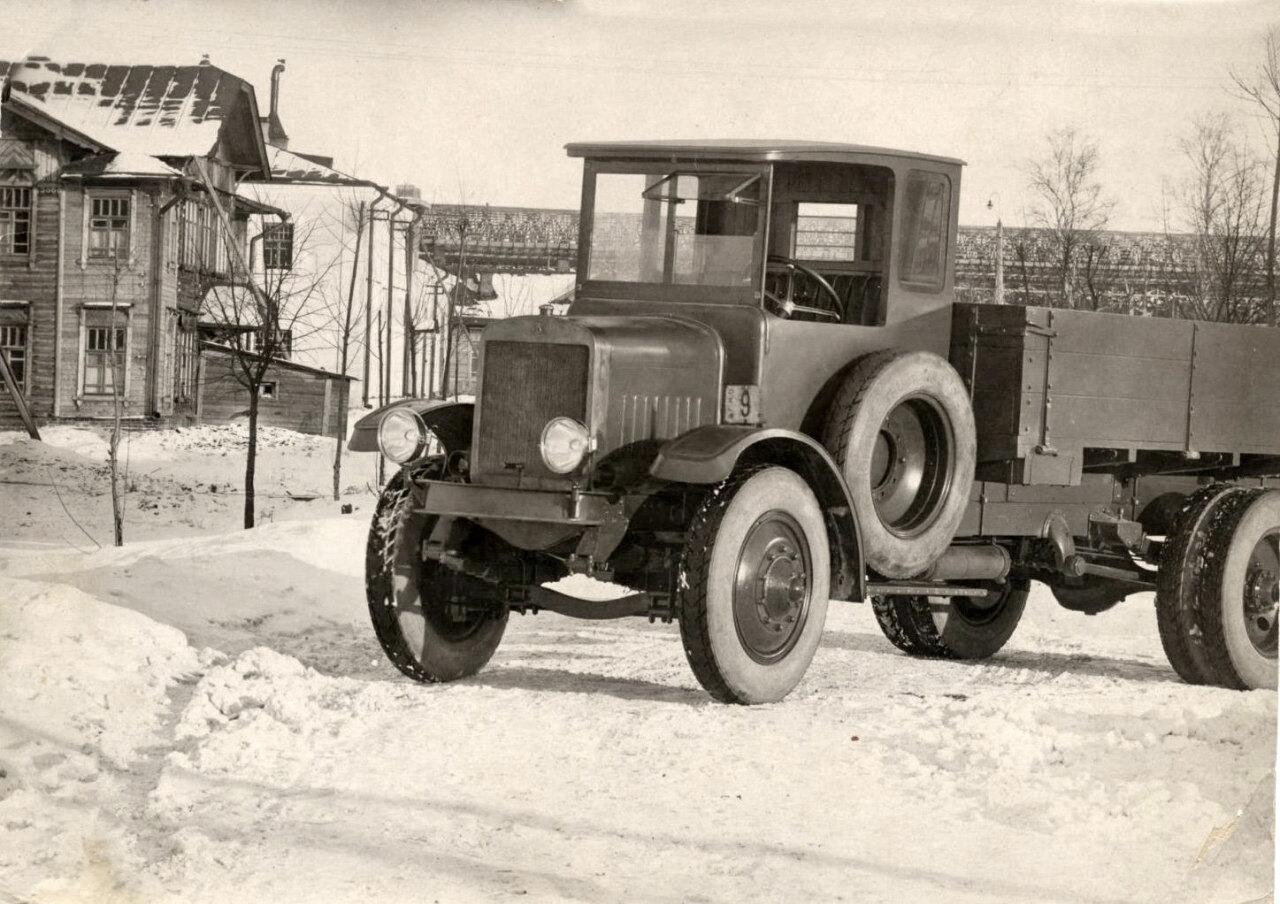

Ja-3, 1925-1928, 3-ton 4x2 cargo truck, 35hp White-AMO motor, 170 built. 44k photo, fire truck, 369k photo

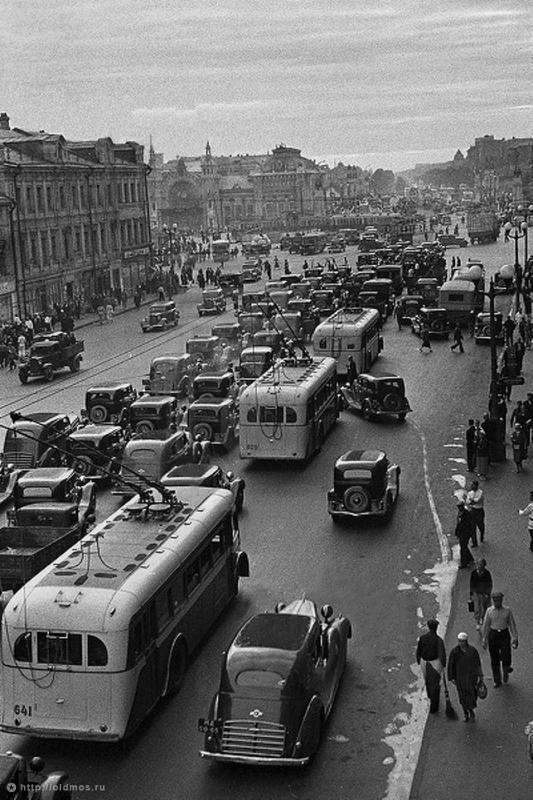

Pre-war trolleybuses (846 built in 1936-1941):
JaTB-5, 1941, 49-passenger (35-seater), central position of the engine, 1 built
JaTB-4, 1938-1941, 48-passenger (34-seater), ? built, 94k-, 68k and 28k photo
JaTB-4A, 1939, 1941, 49-passenger (35-seater), 2 built in 1939, ? - in 1941, 60k photo

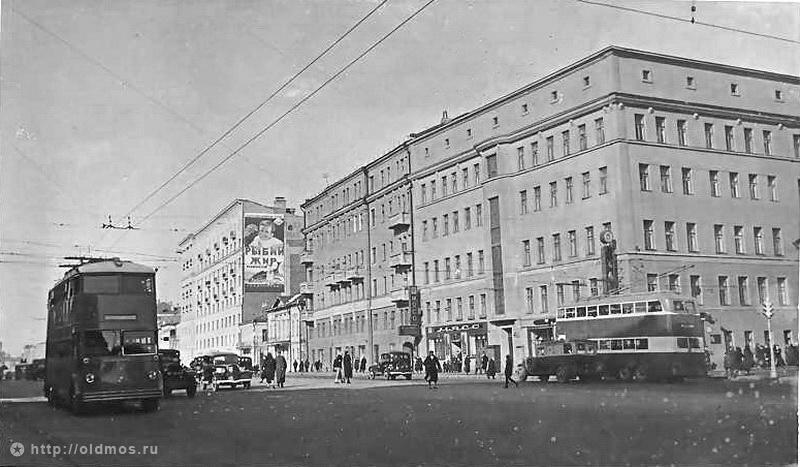

JaTB-3, 1938-1939, 100-passenger 2-decker (32-seater down + 40-seater up), 10 built, 87k-, 57k and 72k photo
JaTB-2, 1937-1938, 48-passenger (34-seater), ? built, 92k photo
JaTB-1, 1936-1937, 50-passenger (35-seater), ? built, 173k-, 91k and 50k photo
Post-war models:
JaAZ-200, 1947-1951, 4x2 7-ton cargo truck, 1745 built, 10k b/w photo
JaAZ-205, 1947-1948, JaAZ-200 based 5-ton 4x2 dump truck, 22 built + 99 chassis for MAZ
JaAZ-200V, 1950-1951, JaAZ-200 4x2 tractor for 16,5-ton semi-trailer, 54 built

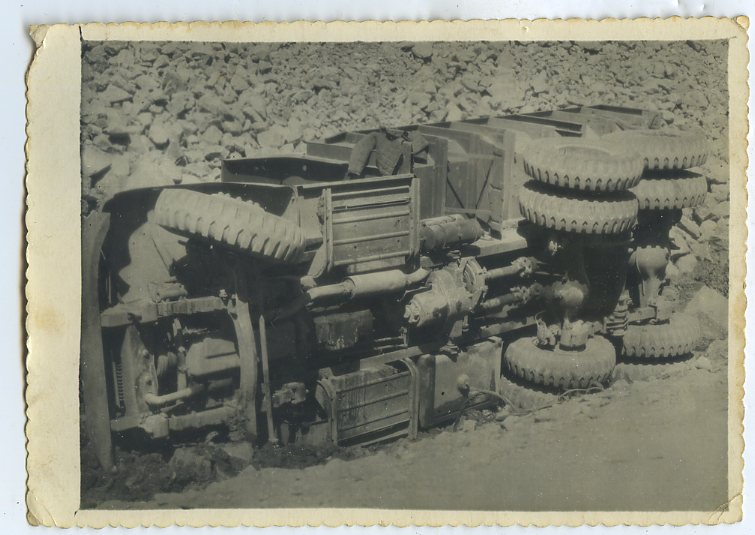

JaAZ-210, 1951-1958, 6x4 12-ton cargo truck (JaAZ-210A - with winch), 1446 built
JaAZ-210G, 1951-1958, 6x4 ballast tractor for 40-ton trailer, 2303 built, 36k- and 71k photo
JaAZ-210D, 1952-1958, 6x4 tractor for 40-ton semi-trailer, 2173 built, 37k image, courtesy of Jan First from Switzerland, 53k photo.

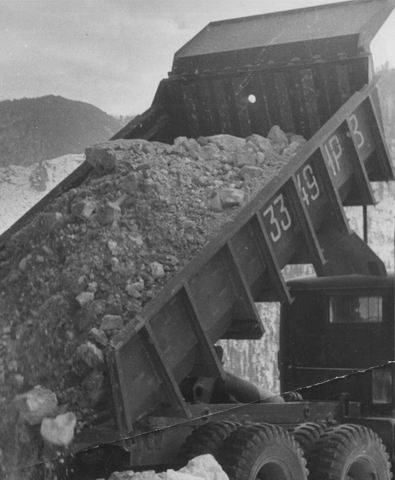

JaAZ-210E, 1950-1958, 6x4 10-ton dump truck, 4930 built, 50k-, 30k and 79k photo
JaAZ-218, 1957, JaAZ-210E based 6x4 10-ton 2-sided dump truck, very few prototypes built
JaAZ-214, 1957-1960, 6x6 7-ton cargo truck, 1265 built, 73k photo

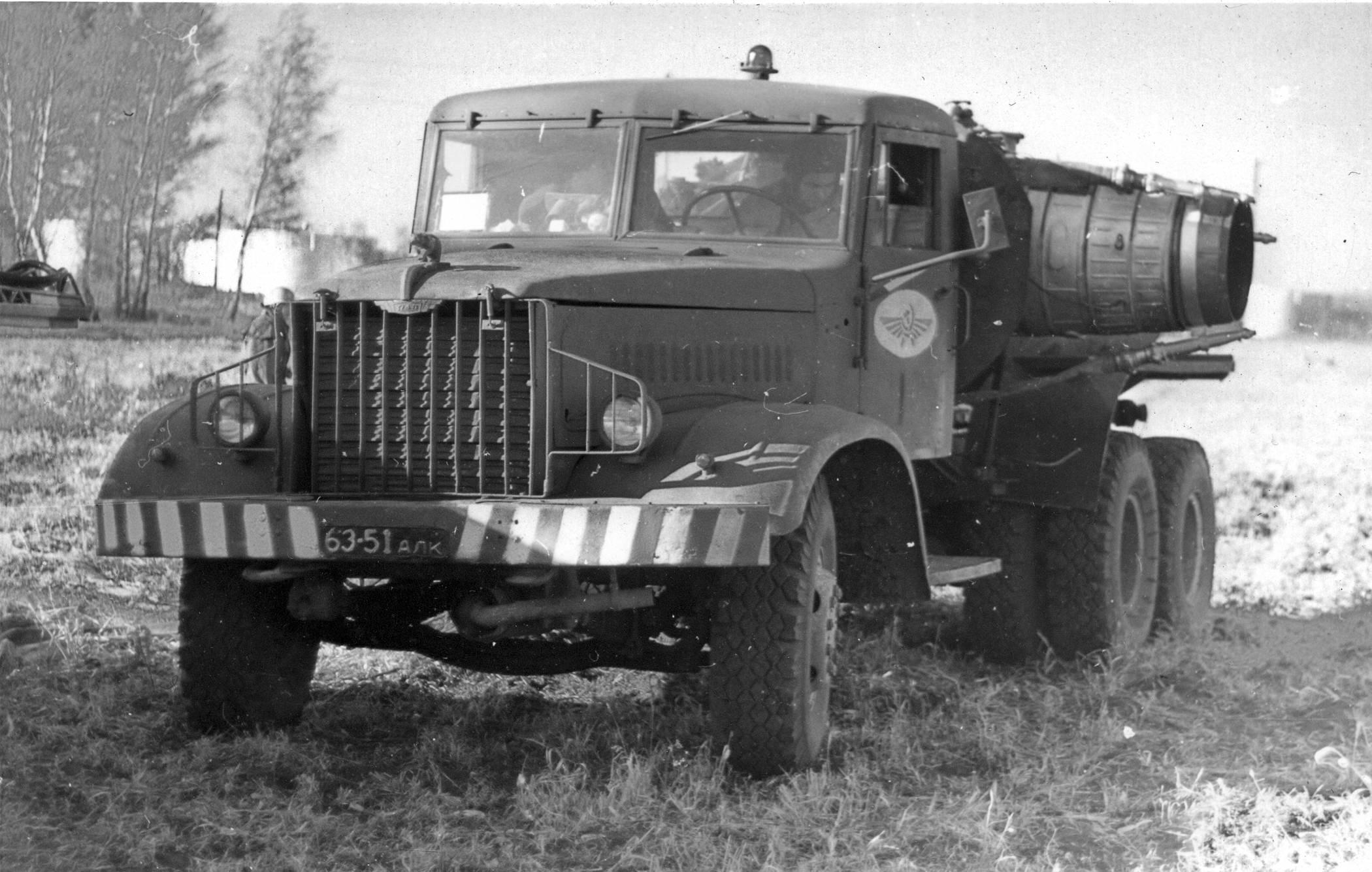

JaAZ-219, 1958-1960 - 6x4 12-ton cargo truck, 2769 built, 348k photo
JaAZ-221, 1958-1960 - 6x4 JaAZ-219 based tractor for 30-ton semi-trailer, 483 built, 24k photo

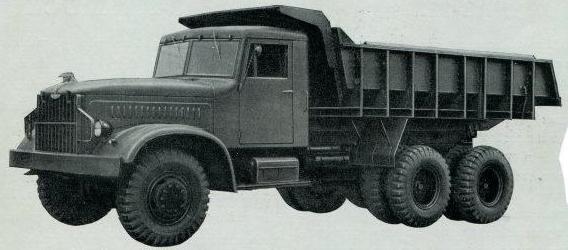

JaAZ-222, 1958-1960 - 6x4 JaAZ-219 based 10-ton dump truck, 2970 built, 25k photo
