Tatra 85, 85A
Years of production: 1936-1938 (Tatra 85), 1939-1941 (Tatra 85A)

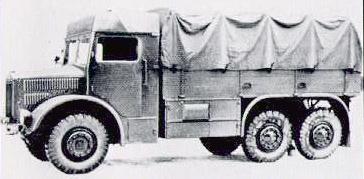

6x4 4-ton cargo truck, model 85/91 - forward-control variant

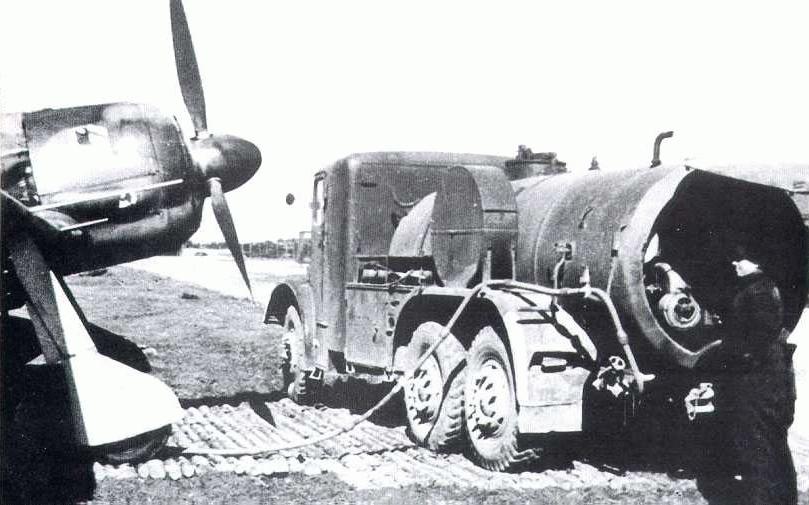

Overall production: 314 (224 Kfz.384 Lüftwaffe fuel tankers + 90 cargo)
Engine: water cooling 4-cyl. OHV, 8143cc, 80hp/1500rpm
Dimensions (cargo): length - 7300mm, width - 2350mm, height - 2600mm
Cargo platform: length - ?mm, width - ?mm, board height - ?mm
Wheelbase: 3500+1150mm, 3000+1180mm
Front wheel track: 1700mm, independent transversal leaf-spring suspension
Rear track: 1700mm, longitudinal leaf-spring suspension
Road clearance: ?mm
Water ford depth: ?mm
Turning radius: ? m
Compression ratio: ? : 1
Bore/Stroke: 120/180mm
Carburetter: Solex 46 MOVLS, 48KB
Battery: ? Volt, ? Ah
Clutch: dry single plate
Gearbox: 4-speed + back
Ratios: I - 5,2, II - 2,73, III - 1,53, IV - 1,1, back - 6,85
Transfer box: 2-speed, highway - 1 : 1, offroad - 2,74 : 1
Differential ratio: ?
Air brakes: on all wheels, hand brakes - on cardan
Weight: 6000 kg
Maximal speed on highway: 60 km/h
Tyres: 9,75x20 inches
Fuel tank capacity: 168+28 Ltr.; 201+39 Ltr.
Fuel consumption: 45-50 Ltr./100km
Photos and data are from:
Reinhard Frank's book "Lastkraftwagen der Wehrmacht", PODZUN-PALLAS, 1992,
BAhR Automotive History Pages,
Bart Vanderveen's book "Historic Military Vehicles Directory", "After the Battle" publication, 1989.
Thanks for help to Liucijus Suslavičius (Vilnius), automobile historian and author of numerous publications.
