Oldtimer picture gallery. Trucks. Dodge T207, T211, T215.
Oldtimer picture gallery. Cars. Dodge T207, T211, T215.
Dodge T207 (WC1 ... WC11),
T211 (WC12 ... WC20),
T215 (WC21 ... WC27, WC40 ... WC43)
Years of production: 1941 (T207, T211),
1941-1942 (T215)
Overall production: 31935 units (T207) +
14566 units (T211) + 28537 units (T215)
4x4 allwheeldrive frontmotor 0,5-ton car or truck
Body modifications (WC goes for Weapon Carrier):
T207
WC1, closed-cab Pickup without winch, longitudinal seats (2572 built, the first 1175 - Dodge VC3 with T207 engine)

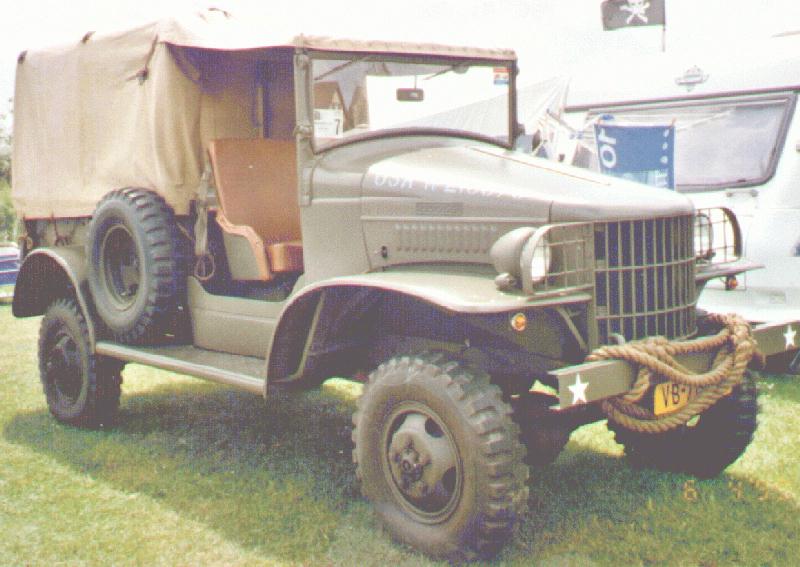

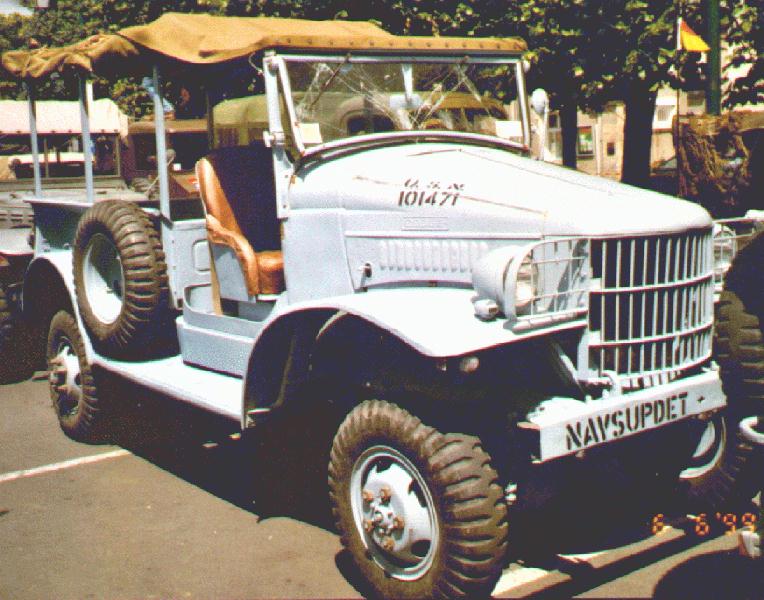

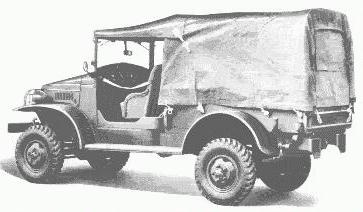

WC3, open-cab Pickup without winch, transverse seats (7808 built)
WC4, open-cab Pickup with winch, transverse seats (5570 built)
WC5, closed-cab Pickup Emergency Repair with B Seal, without winch (60 built + 1 Emergency Repair)
WC6, Command Reconnaissance without winch (9365 built)

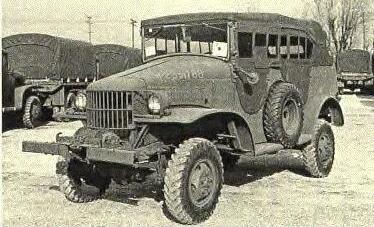

WC7, Command Reconnaissance with winch (1438 built)
WC8, Command Reconnaissance Radio without winch (548 built, the first 7 - Dodge VC2 with T207 engine)
WC9, Ambulance without winch (2288 built)

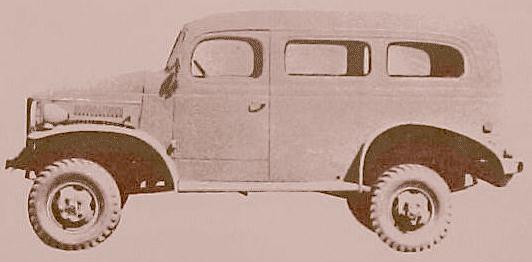

WC10, Carryall without winch (1643 built)
WC11, Panel Truck without winch (642 built)
T211

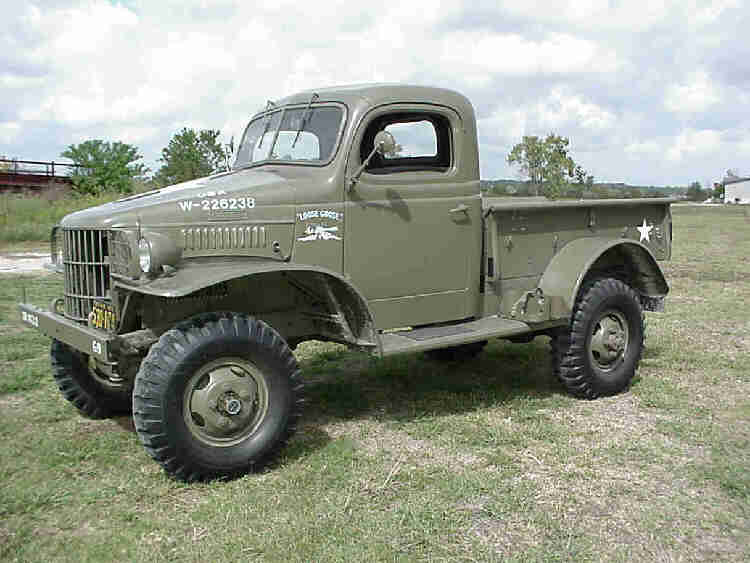

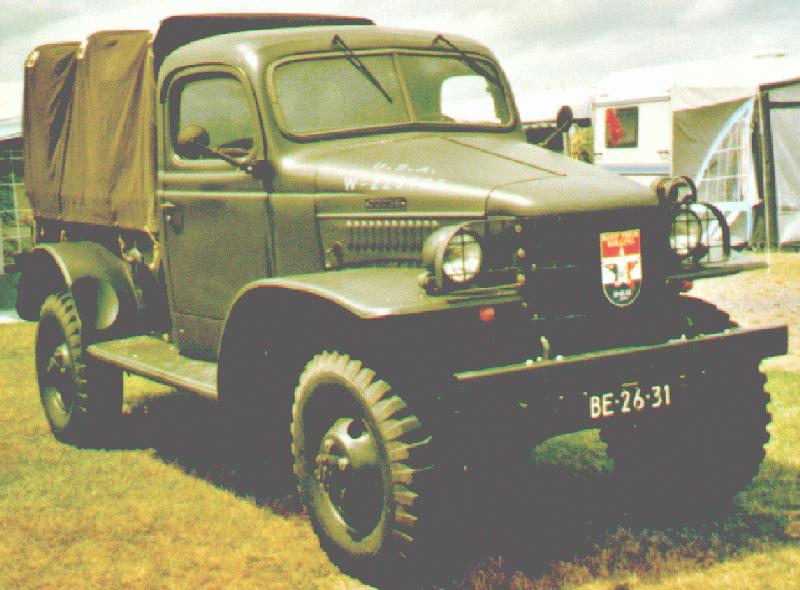

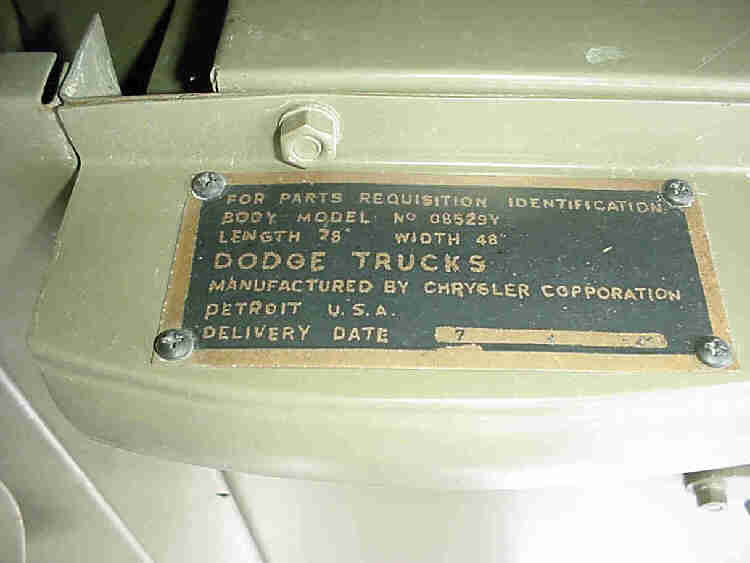

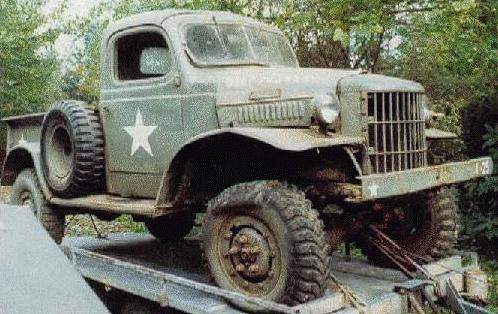

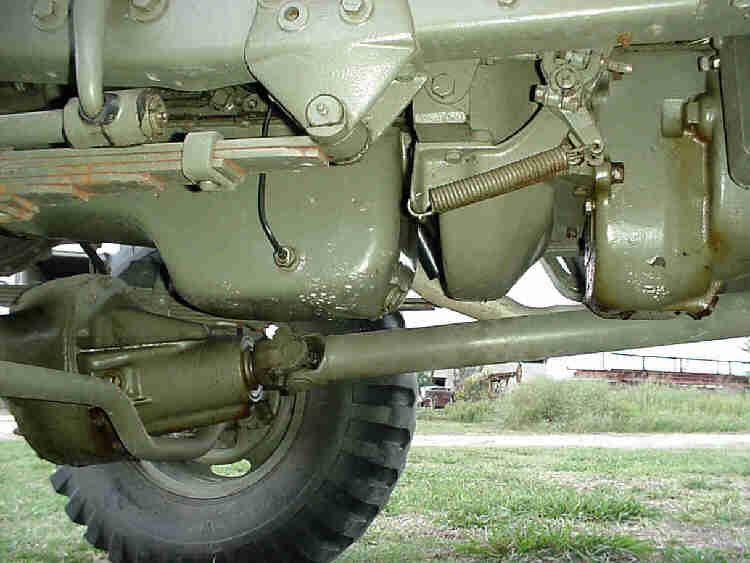

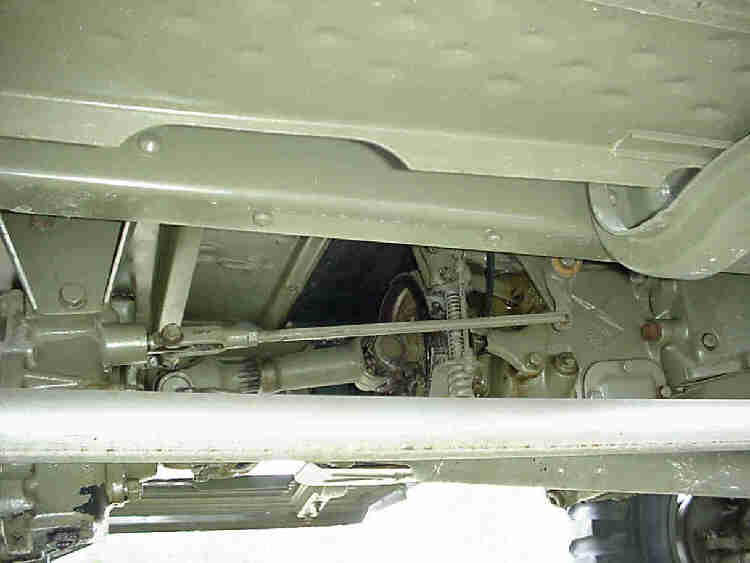

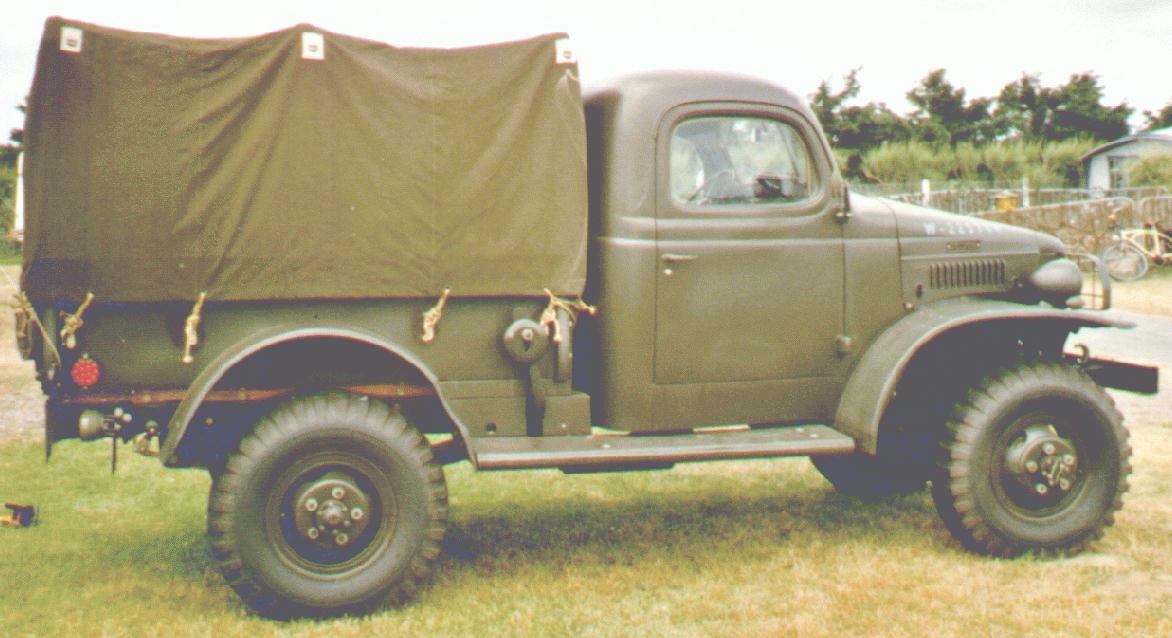

WC12, closed-cab Pickup without winch (4146 built (1 WC12 - chassis for oil servicing) + 1901 with T215 engine (included in T215))
WC13, open-cab Pickup without winch, bucket seats (4019 built)
WC14, closed-cab Pickup Emergency Repair with B Seal, without winch (268 built)

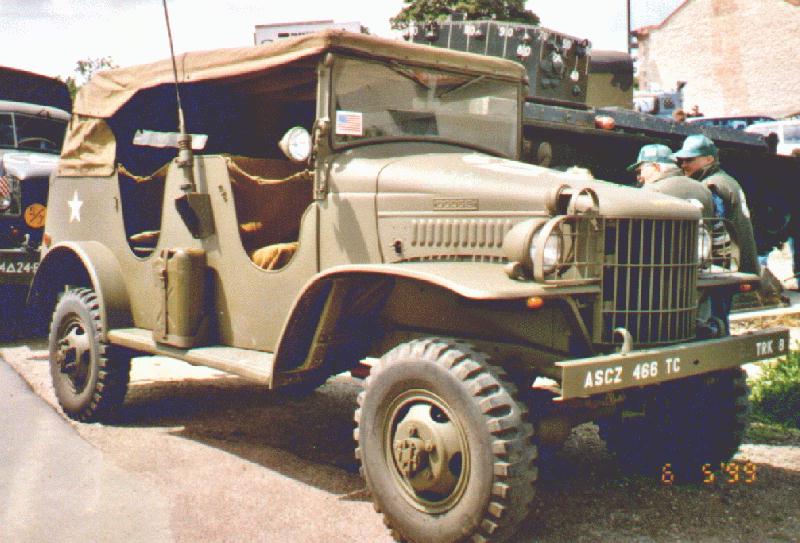

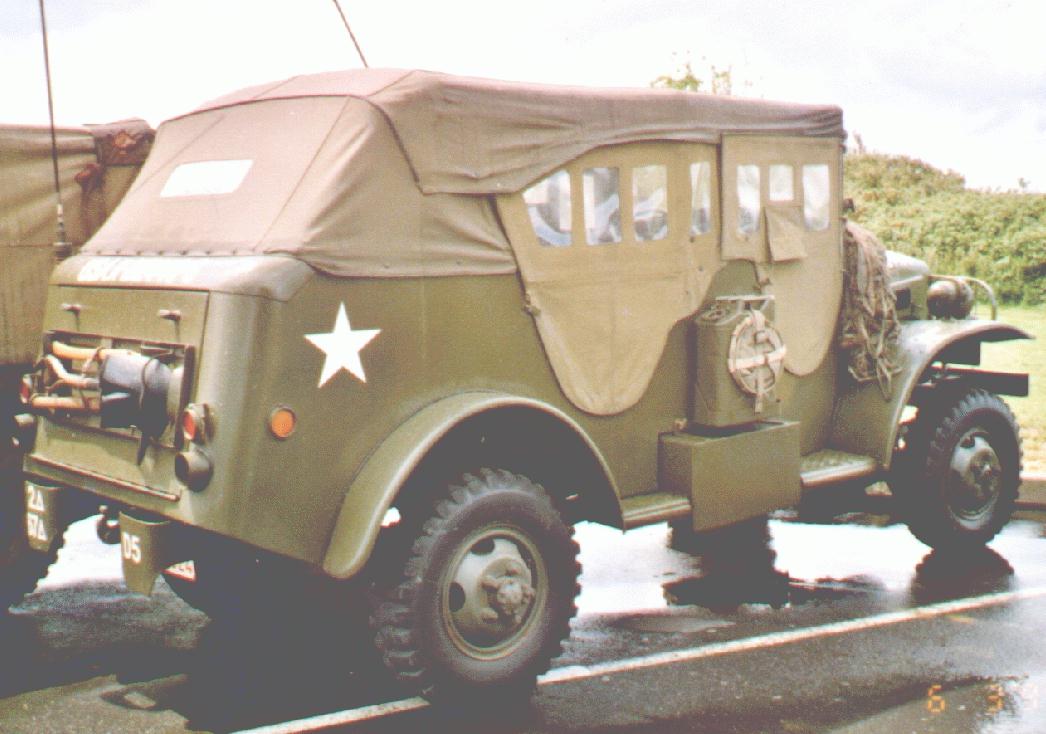

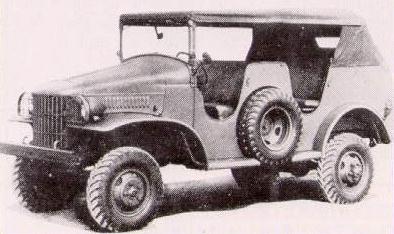

WC15, Command Reconnaissance without winch (3980 built)
WC16, Command Reconnaissance Radio without winch (876 built + 408 with T215 engine (included in T215))

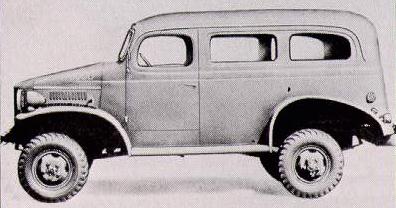

WC17, Carryall without winch (274 built)

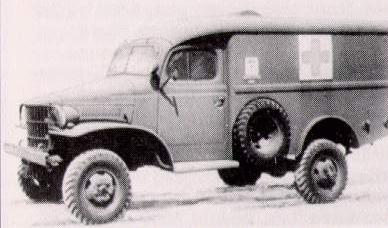

WC18, Ambulance without winch (870 built + 685 with T215 engine (included in T215))
WC19, Panel Truck without winch (103 built)
WC20, closed-cab chassis for Emergency Repair without winch (30 built)
T215

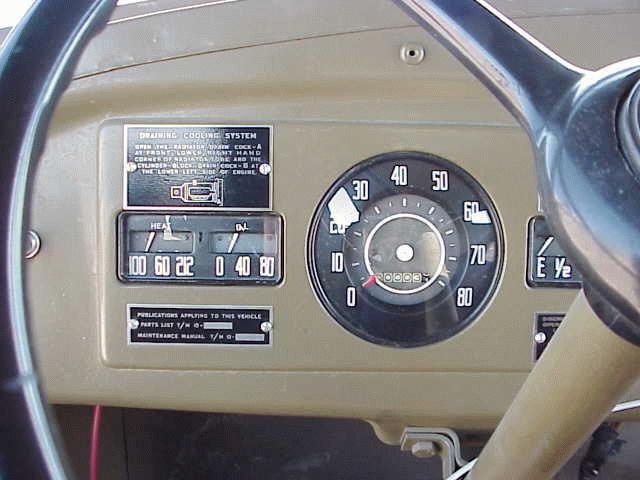

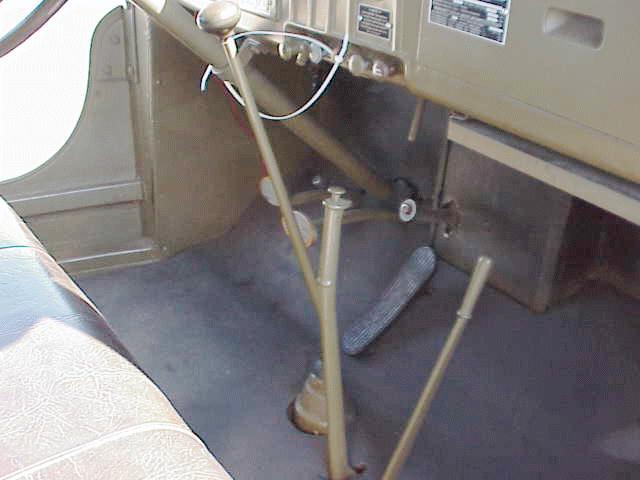

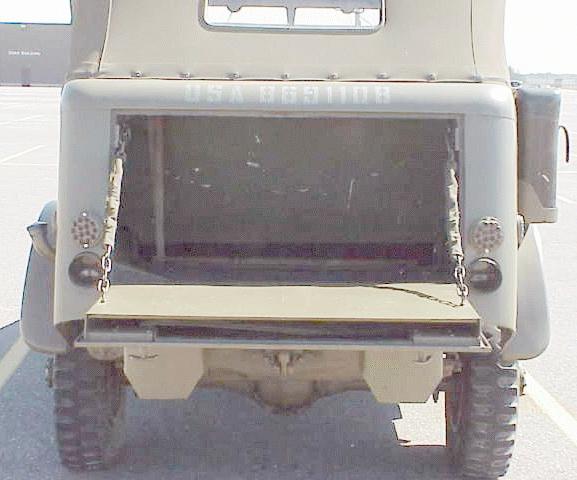

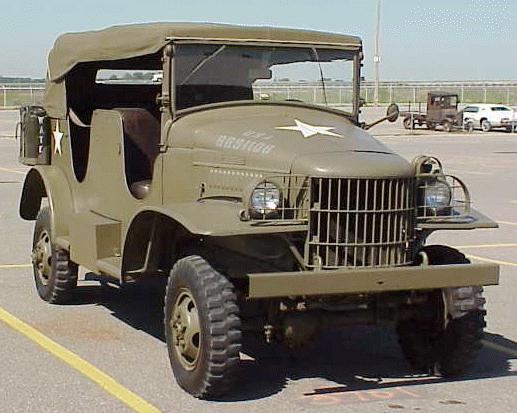

WC21, open-cab Pickup without winch (10787 built + 1901 WC12 with T215 engine)
WC22, open-cab Pickup with winch, transverse seats (1900 built)
WC23, Command Reconnaissance without winch (2637 built)

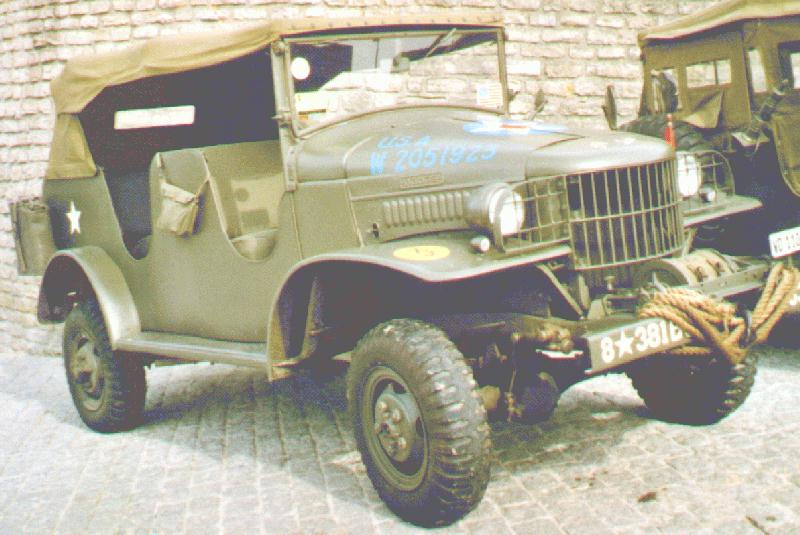

WC24, Command Reconnaissance with winch (1412 built)
WC25, Command Reconnaissance Radio without winch (1650 built + 408 WC16 with T215 engine)

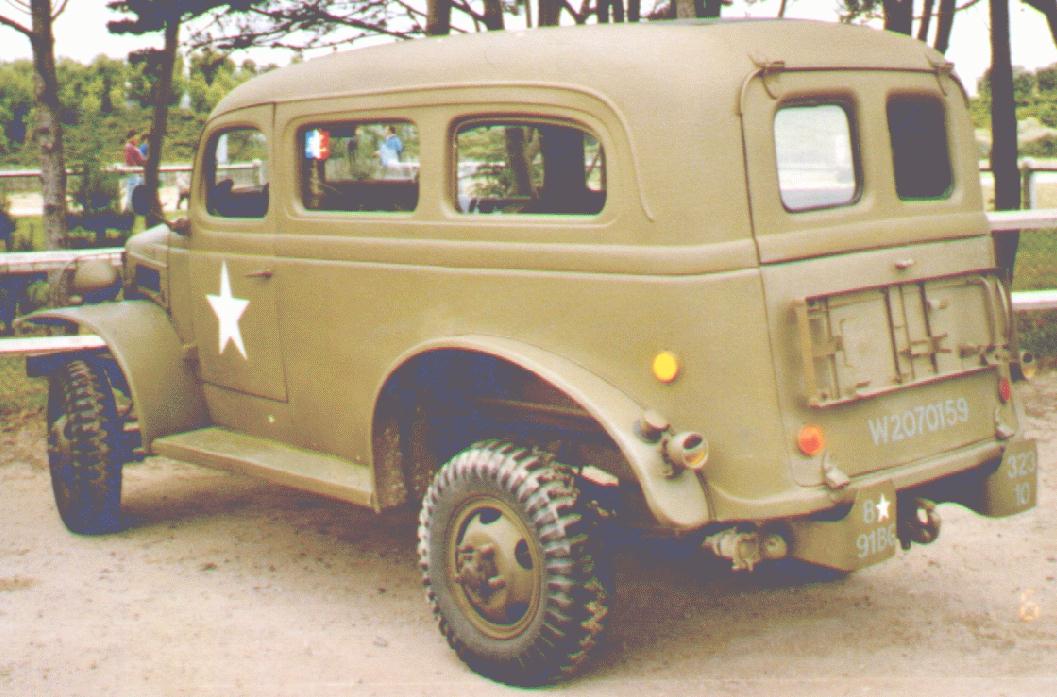

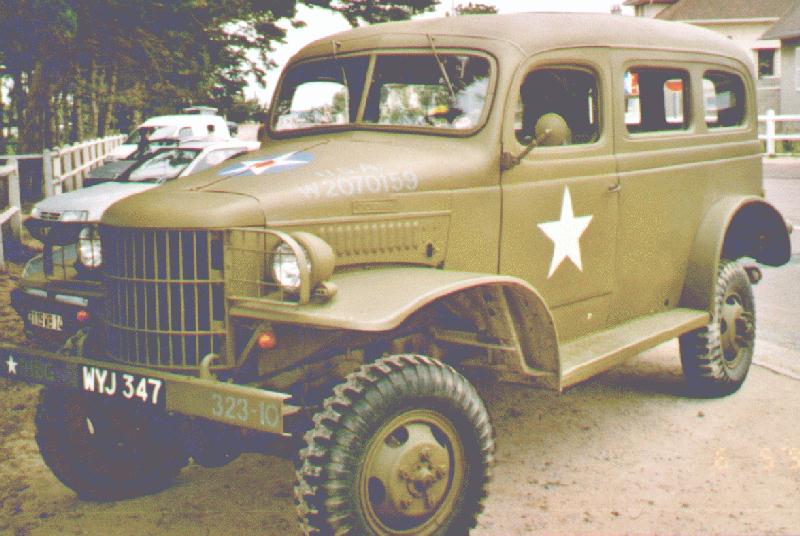

WC26, Carryall without winch (2900 built)
WC27, Ambulance without winch (2579 built + 685 WC18 with T215 engine)
WC40, closed-cab Pickup without winch (275 built)

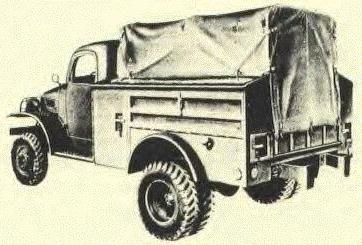

WC41, closed-cab chassis for Emergency Repair without winch (dual rear wheels) (383 built, 39 of them have 116-in wheelbase)

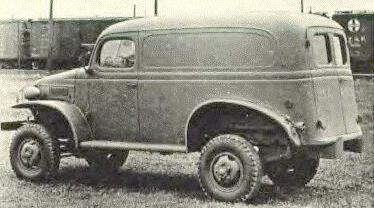

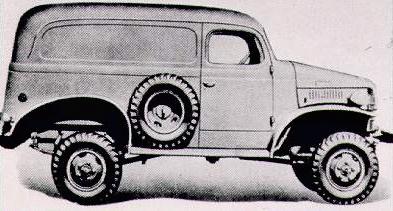

WC42, Panel Radio with winch (650 built)
WC43, Telephone Installation (Maintenance) without winch (370 built)
Engines:
T207: own T207 85hp/?rpm, Straight 6 - cyl SV, 218 cid
Bore/Stroke: ?/? inches
Compression ratio: ? : 1
T211: own T211 85hp/?rpm, Straight 6 - cyl SV, 218 cid
Bore/Stroke: ?/? inches
Compression ratio: ? : 1
T215: own T215 92hp/3100rpm,
Straight 6 - cyl SV, 230,2 cid
Bore/Stroke: ?/? inches
Compression ratio: ? : 1
Dimensions:
(for some models I didn't find any)
Length: 179 in, width: 75 in, height: 83 in
(4546 x 1905 x 2108 mm) (WC6, WC8,
WC15, WC16, WC23, WC25)
Length: 191 in, width: 74 in, height: 77 in (4851 x 1880 x 1956 mm) (WC10, WC11, WC17, WC19, WC26, WC42)
Length: 191 in, width: 76 in, height: 88 in
(4851 x 1930 x 2235 mm) (WC4, WC22)
Length: 195 in, width: 76 in, height: 90 in
(4953 x 1930 x 2286 mm) (WC9, WC18,
WC27)
Wheelbase: 116 inches (2946mm) (WC9,
WC18, WC20, WC27 and almost all WC41
- 123 inches (3124mm))
Road clearance: 9 in (229mm)
6 Volt electrics
Carburettor: ?
Gearbox: 4 speed + back
Single speed transfer box with front axle
disconnect
Clutch: dry plate
Hydraulic brakes
Rigid axles with semi-elliptic leaf springs
Axle gear ratio: 4,89 : 1

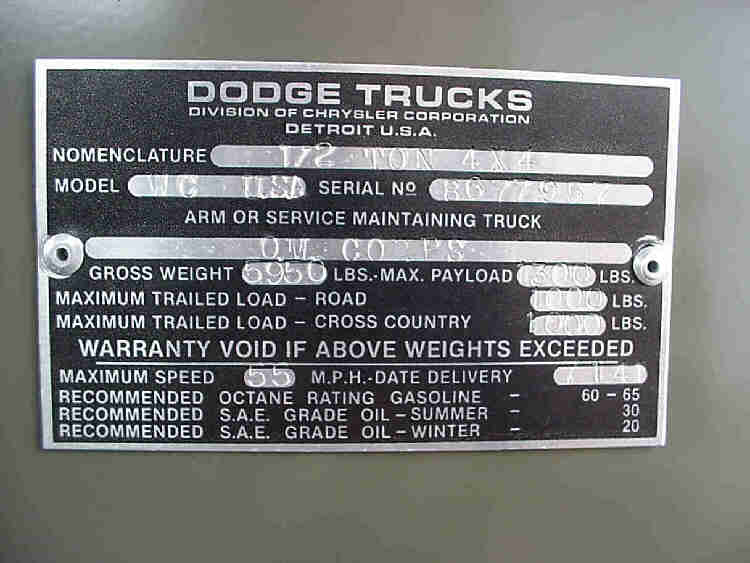

Weight: 3595lb (WC17), 4775 lb (WC4), 5070 lb (WC15), 5640 lb (WC18); gross weight: 5950 lb (2699 kg, WC12)
Maximum trailed load (road/cross country): 1000 lb (WC12)
Maximal speed: 55 mph (WC12)
Tyres: 7,50x16 inches
Fuel tank capacity: 25 gallon
Fuel consumption: ? L/100km

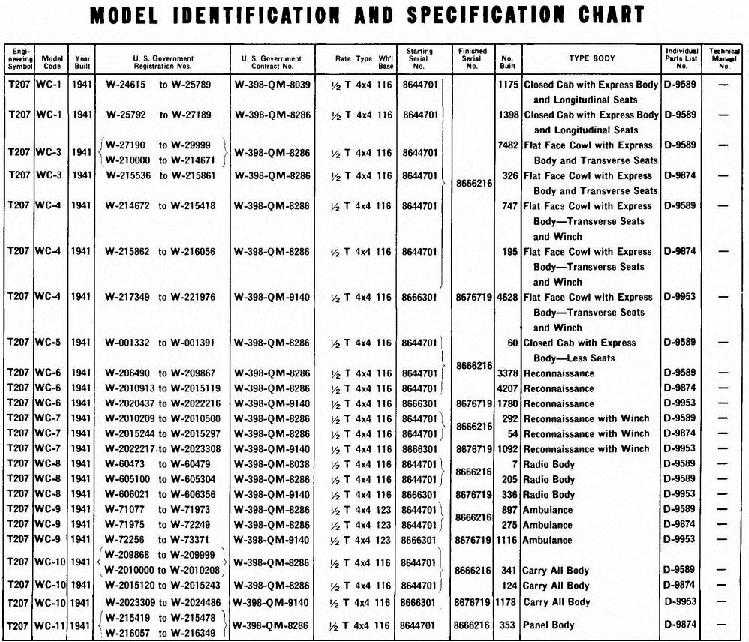

T207 Model Identification and
Specification Chart (111kByte).

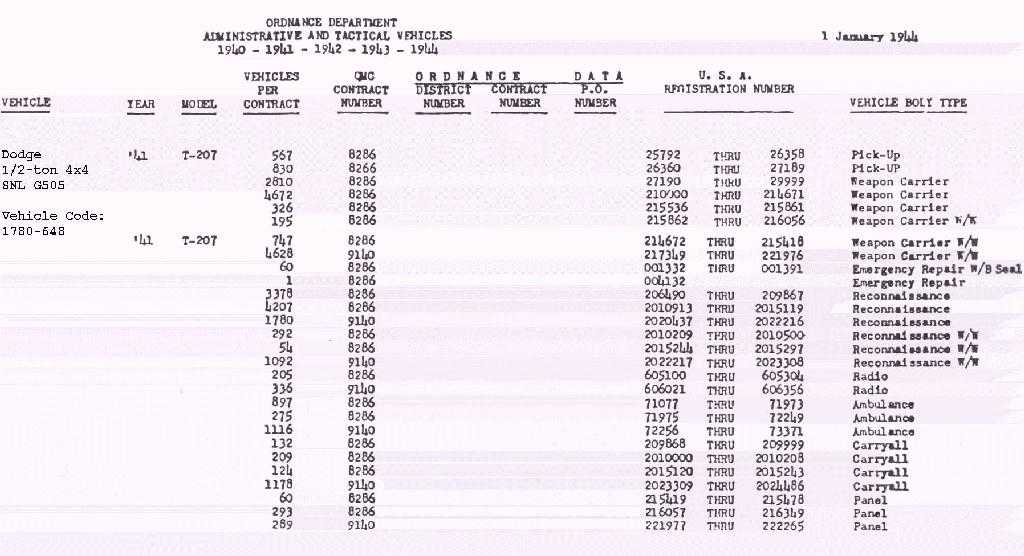

T207 Contracts, registration and other
information table (65kByte).
T211 Model Identification and Specification Chart (71kByte).
T211 Contracts, registration and other
information table (129kByte).

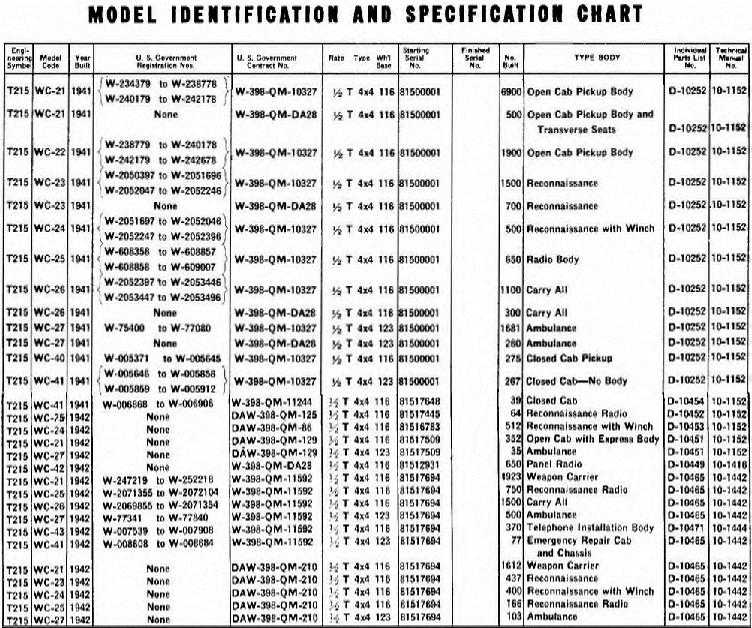

T215 Model Identification and
Specification Chart (108kByte).

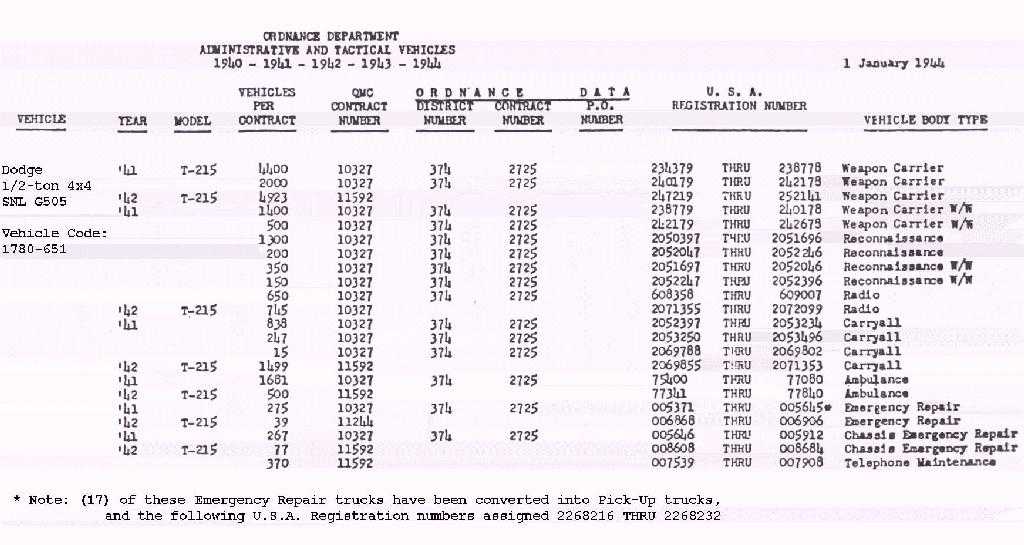

T215 Contracts, registration and other
information table (70kByte).
Photos and data are from (thanks a lot to
these people!):
Pat De Moss (Kokomo, Indiana, USA),
Bart Vanderveen's book "Historic Military
Vehicles Directory", An After the Battle
publication, 1989,
eBay,
Jan Szatan, Poland (homepage),
Military Vehicles Sales & Appraisal
Service,
Thomas Winkelbauer, Vienna (Steyr Geschichte),
Specialcar Magazine,
Trader Online.
"US Army Vehicles of WW2" by Boniface & Jeudy - Haynes
If I didn't mention anybody's authorship,
please let me know, - sometimes photos
arrive through 3rd hands.
You are welcome to write me by E-mail Contact. Andrei Bogomolov.
