Oldtimer gallery. Motorcycles. Zündapp-K800.

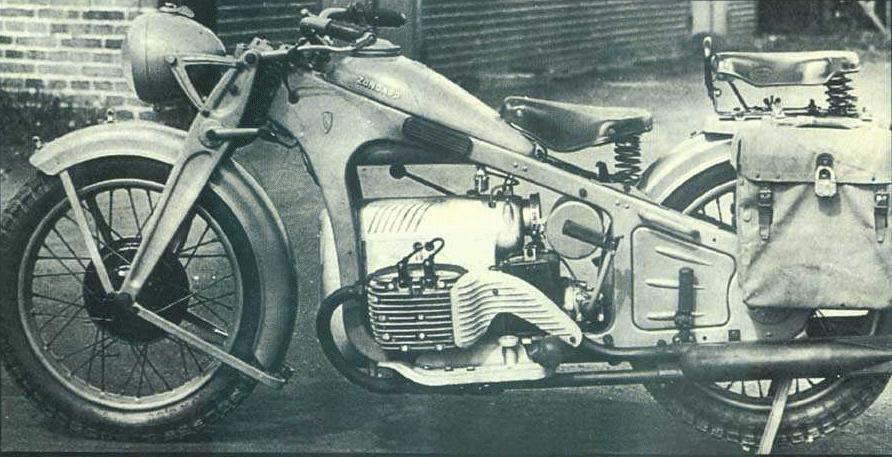

84k photo of Wehrmacht Zündapp-K800W
Zündapp-K800 (data for K800W)

Years of production: 1933-1938 (K800W - 1934-1938)
Overall production: 550 units
Engine: 22hp/4300rpm (normal mode - 20hp/4000rpm), opposite 4-cyl, 4-stroke SV 804cc
Bore/Stroke: 62/66,6 mm
Compression ratio: 5.8:1

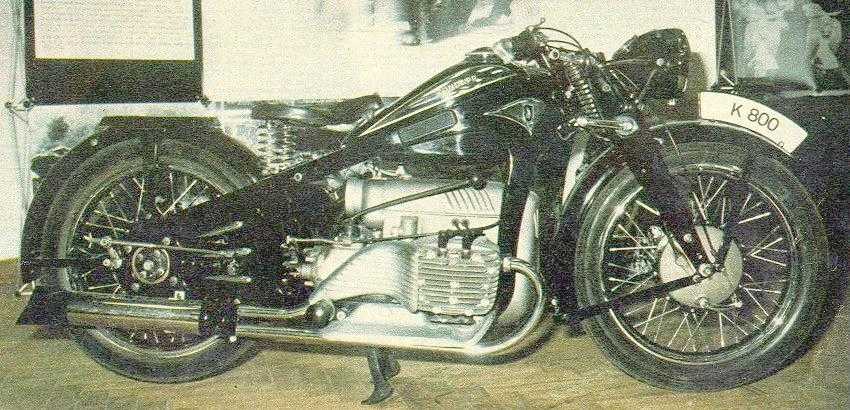

87k photo of civilian 1938 Zündapp-K800Length: 2165mm, width: 815mm, height: 900mm, saddle height: 72cm
Wheelbase: 1405mm, road clearance: 120mm
Carburetter: Amal 5/406 PS (later Amal M74/431 P)
Battery: Bosch, 6V, 7 Ah
Gearbox: 4 speed
Ratios: I - 3,00; II - 1,80; III - 1,13; IV - 0,88
Cardan

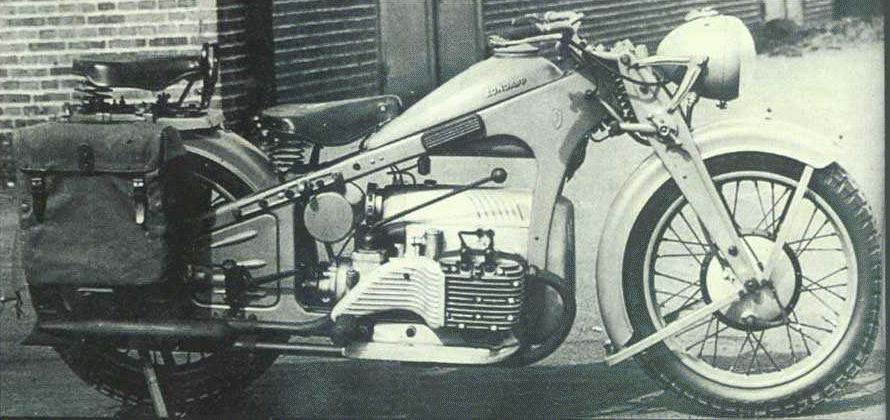

78k photo of Wehrmacht Zündapp-K800WRear axle ratios: solo - 4,56, sidecar version - 5,62
Weight: 212 kg (solo)
Maximal speed: 110 km/h solo, with sidecar - 95 km/h
Tyres: 3,50 or 4,00x19 inches
Fuel tank capacity: 15 L
Fuel consumption: 6,5 L/100km solo, 7,5 L/100km with sidecar
Price: 1550 DM
Zündapp-K800W is Wehrmacht version of K800.
Photos are from:
"Svet Motoru" magazine, Czechoslovakia. This 1938 motorcycle is from Berlin museum.
The book "The motorcycles of the third Reich", Sofia, 2000.
Thanks for help to Nicola Dimitrov (Bulgaria), see also his DKW-NZ350 homepage.
