Oldtimer picture gallery. Trucks. White 666.

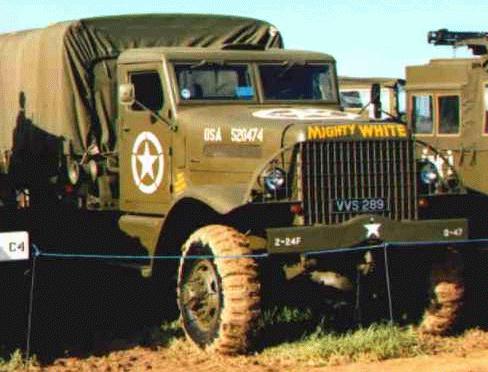

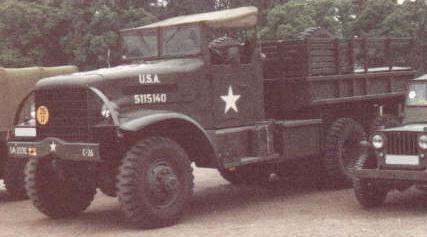

White 666 (coproduced by Brockway, Corbitt, FWD and Ward La France)
Years of production: 1941 - 1945, since 1942 soft-top cab was used
6x6 6-ton truck with metal or wooden body, with hard- or soft-top cab, with 12,5-ton winch
Overall production: over 21000 units of all types
Engine: Hercules HXD 202hp/2150rpm, petrol 6-cyl SV, 855 cu.in.
Early models - Hercules HXC 178hp, 799 cu.in.
Bore/Stroke: ?/? mm
Length: 289 in., width: 96 in., height: 119 (95) in.
Clearance: 10 inches; wheelbase: 185'', rear axles - 52"
Electrics: 6 Volt (starter - 12 Volt)
Gearbox: 4-speed + 1 back, 2-speed transfer box with front axle declutch.
Clutch: dry single plate
Axles gear ratio: 7,33:1 double reduction
Air brakes
Liquid cooling
Front axle: rigid with semi-elliptic leaf springs
Rear axle: rigid with inverted semi-elliptic leaf springs
Weight: 22900 lb (10487 kg)
Maximal speed: 35 mph
Tyres: 10,00-22 inches
Fuel tank capacity: 80 gallon
Fuel consumption: up to 75 Ltr./100km
Images are from Jan Szatan and from Militär Fordons Historiska Föreningen, Sweden.
Thanks for help to Liucijus Suslavičius (Vilnius), automobile historian and author of numerous publications.
