Oldtimer gallery. Trucks. RAF-10.
RAF-10

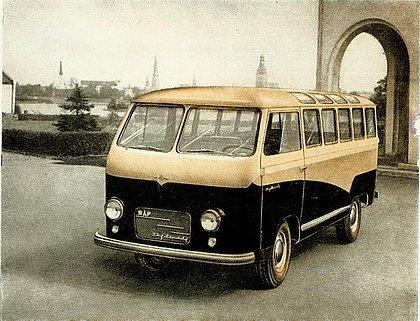

RAF-10, Moscow, VDNH, 1959, 42k photo Year of production: Summer - December 1958
Overall amount: 11 units
Body: 10-passenger bus
Engine: 70 hp/4000 rpm, 4-cyl., 2,445 cc
Compression ratio: 6.6 : 1
Bore/Stroke: 92/92 mm
Length: 4940 mm, width: 1810 mm, height: 1940 mm
Wheelbase: 2700 mm
Front wheel track: 1410 mm
Rear track: 1420 mm
RAF-10, Moscow, 1962, 184k photo Road clearance: 200 mm
Turning radius: ? m
Gearbox: 3-speed + back
Clutch: dry single plate
Differential ratio: 4,62 : 1
Weight: 1640 kg
Maximal speed: 100 km/h
Tyres: 6,70x15 inches
Fuel tank capacity: 60 Ltr. of A-72 gasoline
Fuel consumption: 18,5 Ltr/100km

Photos and data are from:
Author's archive.
Aleksandr Govoruha, Maksim Shelepenkov, "RAF", Svitok, Smolensk, 2006.
Photo by Vitalii Gumenjuk.
"Avtomobiljnaja promyshlennostj", ¹6, 1959.
