Oldtimer gallery. Cars. Opel-1,3 Liter

Oldtimer picture gallery. Cars. Opel 1,3-Liter.

1935 Opel-1,3 L 2-door cabriolet-limousine, instruments

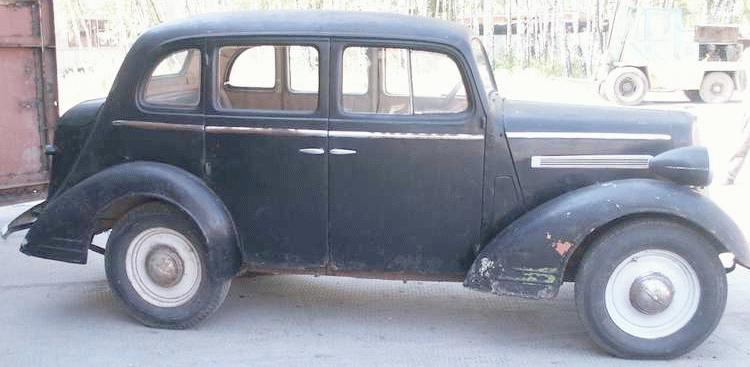

42k photo of 1935 Opel-1,3 L 4-door limousine

Opel 1,3-Liter (model 1397)
Years of production: (1933, pre-series) I 1934 - X 1935
Overall production: 29002
4x2 4-seater frame-based front-motor rear wheel drive car
Engine: 24hp/3500rpm, 4-cyl 4-stroke SV, 1279cc
Body modifications:
2-door 4-light limousine (LZ), price - 2650 RM (1934), in 1935 - 2850 RM,
4-door 6-light limousine (LV), price - 2950 RM (1934), in 1935 - 3150 RM,

43k photo of 1934 Opel-1,3 L 4-door limousine

24k photo of 1935 Opel-1,3 L 2-door cabriolet-limousine

2-door 4-light cabriolimousine (CL), price - 2750 RM (1934),
in 1935 - 2950 RM,
4-seater cabriolet (C4), price - 3250 RM (1934),
in 1935 - 3300 RM
Length: 4225mm, width: 1475mm, height: 1595mm
Wheelbase: 2474mm, road clearance: ?mm
Front wheel track: 1165mm; rear track: 1168mm
Turning radius: ?m

10k photo of 1935 Opel-1,3 L 2-door cabriolet-limousine

48k photo of 1934 Opel-1,3 L 2-door cabriolet-limousine

Bore/Stroke: 67,5/90,0 mm
Pistons type: AC, Nelson-Bonalite
Cold clearance between tappet and valve stem:
intake - 0,20mm, exhaust - 0,25mm
Compression ratio: 6 : 1
Spark plugs type: DM 95/0; 18mm; electrode clearance: 0,7 - 0,8 mm
Gearbox: 3 speeds (4 speeds on special request)
Mechanical brakes
Weight: 987kg

76k photo of 1934 Opel-1,3 L 2-door limousine

Maximal speed: 90 km/h
Tyres: 5,25-16 inches
Fuel tank capacity: 34 L
Petrol consumption: about 10 L/100km
Oil carter capacity: engine - 3,5 L

Pre-index of chassis and engine No:
Year Chassis Engine
1934   97-   -
1935   97-   -

Productionnumbers by Eckhart Bartels:

Year   1933   1934   1935   Total
cars      2  19840   9160   29002

69k photo of 1934 Opel-1,3 L 4-door limousine

39k photo of 1934 Opel-1,3 L 4-door limousine

Chassis numbers of cars with undefined year I really met: 97-2791, 97-14832 (motor Nr. 14784), 97-17527, 97-23503, 97-25237.
Photos are from:
W.Schmarbeck/B.Fischer "Alle Opel Automobile", 1989, Motorbuch Verlag Stuttgart,
Eckhart Bartels "Opel Fahrzeug-Chronik 1887-2000", Podszun, 2000,
"Autoclassic magazine", Hungary,
Veteran Bazar & Museum, Czech Rp.,
mobile.de.
Thanks for help to Denis Abramovich (Byelorussia).

If you have to add, ask or correct me, you are welcome to write me by E-mail Contact. Andrei Bogomolov.
