Oldtimer picture gallery. Cars. Mercedes-Benz 200.
13k image of 1934 Mercedes-Benz 200 Jaray Stromlinien prototype car54k photo of 1935 Mercedes-Benz 200 Cabriolet A of Mauricio V. Smith37k photo of 1935 Mercedes-Benz 200 Cabriolet A of Mauricio V. Smith
Mercedes-Benz 200 (W21)

Years of production: 1932-1937
Overall production: 15622 examples
(including 105 roadsters),
see Production table
Body modifications (price in RM):
Length: 4060-4150mm, width: 1630mm, height: 1580mm
Wheelbase: 2700mm (roadster - 2600mm)
Chassis (4400 RM, 1933-34; 4200 RM, 1935-36; 3700 RM, IX 1936-37)

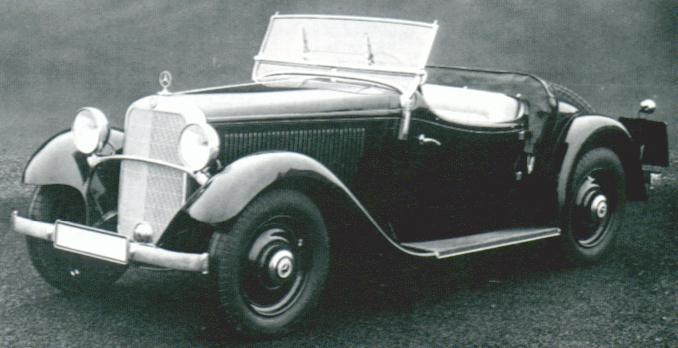

13k image of 1935 Mercedes-Benz 200 instrument panel84k image of 1934 Mercedes-Benz 200 Cabriolet C33k image of 1935-36 Mercedes-Benz 200 Roadster 2+22-door limousine (5150 RM, 1936,
+185RM for sunshine roof; 4450 RM,
IX 1936-37, +185RM for sunshine roof)
4-door limousine (5300 RM, 1933-34,
+150RM for sunshine roof; 4950 RM,
1935-36, +185RM for sunshine roof; 4450 RM, IX 1936-37, +185RM for sunshine roof)
Cabriolet C (6400 RM, 1933-34; 5950 RM, 1935; 6150 RM, 1936; 5650 RM, IX 1936-37)
2-door "Mannheim" tourenwagen (5800 RM, 1934-36; 5300 RM, IX 1936-37)

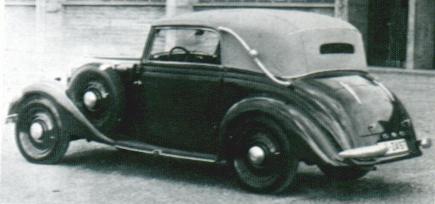

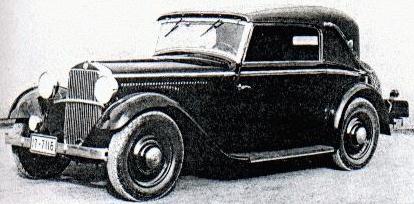

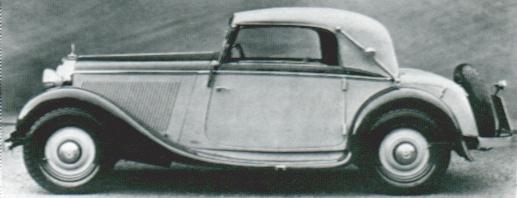

23k image of 1933 Mercedes-Benz 200 Cabriolet C by Sindelfingen15k image of 1936-37 Mercedes-Benz 200 2-door Limousine15k image of 1936-37 Mercedes-Benz 200 Cabriolet C4-door "Sindelfingen" tourenwagen
(6500 RM, 1933-35)
Sport-Roadster 2(+2)-seater
(6350 RM, 1934; 6200 RM, 1935-36;
5700 RM, IX 1936-37)
Sport-Cabriolet A 2/3-seater (7800 RM, 1934; 7650 RM, 1935-36; 7150 RM, IX 1936-37)
Engine: W21 40hp/3200rpm, straight 6-cyl, 4-stroke 1,961cc

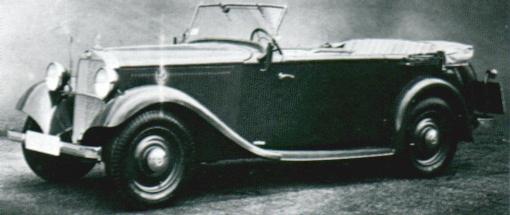

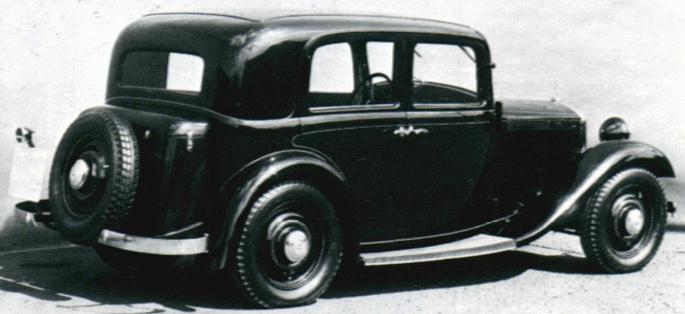

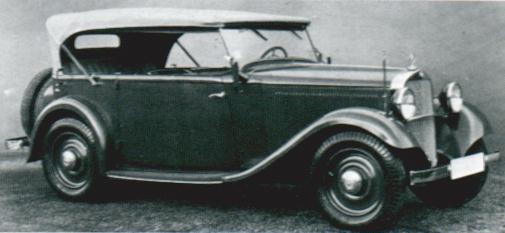

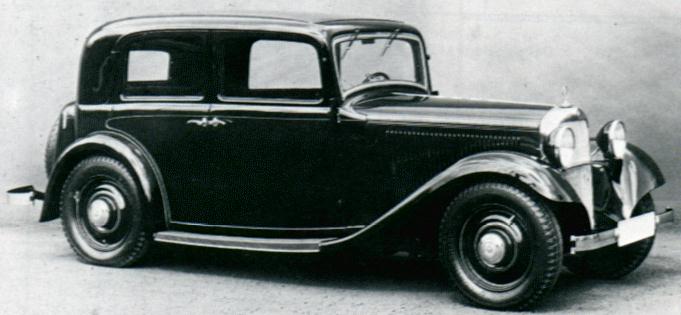

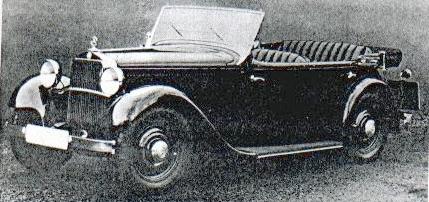

29k image of 1933 Mercedes-Benz 200 2-door Tourenwagen32k image of 1934-36 Mercedes-Benz 200 4-door Limousine18k image of 1934-37 Mercedes-Benz 200 2-door Mannheim TourenwagenCompression ratio: 5.75-6.0 : 1
Bore/Stroke: 70/85mm
Clutch: dry single plate
Front wheel track: 1340mm
Rear track: 1380mm
Rear axle clearance: ?mm
Turning radius: 5.2 m

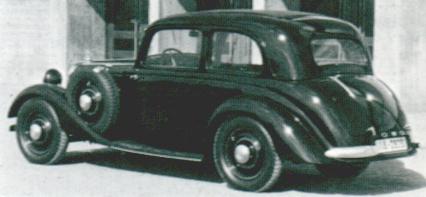

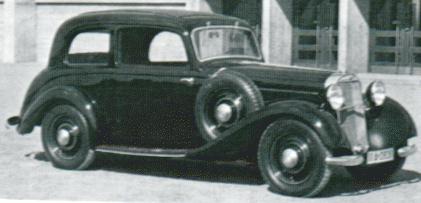

14k image of 1936-37 Mercedes-Benz 200 2-door Limousine30k image of 1934-36 Mercedes-Benz 200 4-door Limousine17k image of 1934-37 Mercedes-Benz 200 2-door Mannheim TourenwagenGearbox: 3 speeds with overdrive
Hydraulical brakes on all wheels
Weight: 1130 - 1350 kg
Maximal speed: 98 km/h
Tyres: 5.25(or 5.50) - 17 inches
Fuel tank capacity: 38 L

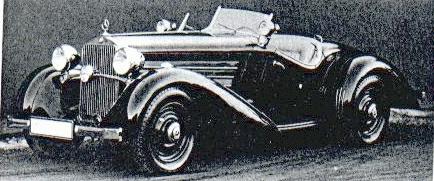

28k image of 1933 Mercedes-Benz 200 Spezial-Roadster for 1933 Berlin Autosalon1934 Mercedes-Benz 200 4-door Limousine20k image of 1934 Mercedes-Benz 200 Special Cabriolet A by Sindelfingen>Fuel consumption: 13 L/100km

Photos and data are from:
Werner Oswald's book "Mercedes-Benz
Personenwagen 1886-1986", 1987, Motorbuch Verlag Stuttgart.
http://www.infoxx.de/shop/oldtimer/.

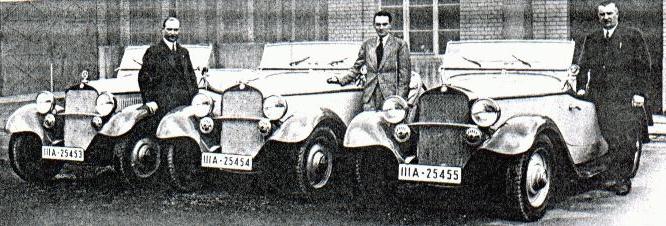

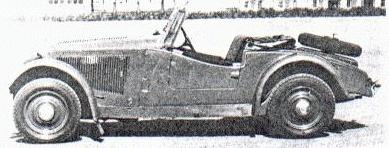

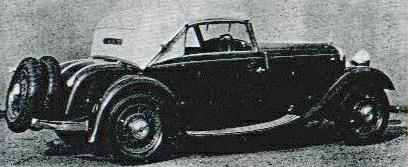

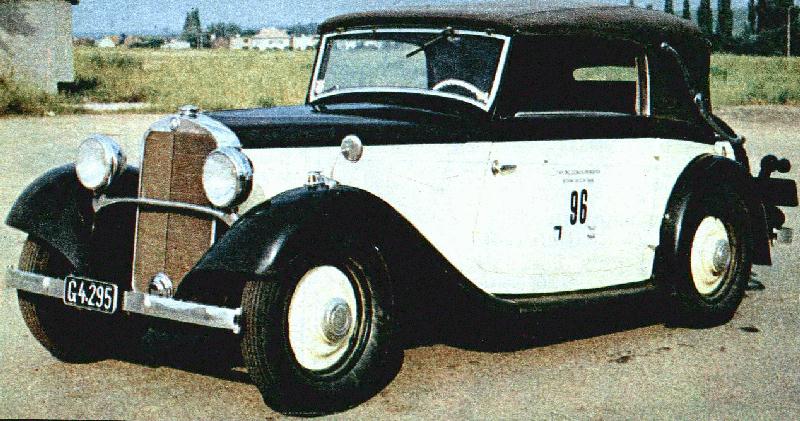

16k image of 1934-37 Mercedes-Benz 200 Cabriolet A by Sindelfingen17k image of 1933 Mercedes-Benz 200 Light Sportwagen51k image of 1933 Mercedes-Benz 200 Sport-Roadsters1934 Cabriolet C on color photo (from
Svet Motoru, CSSR) is owned by
W.Königshofer from Graz, Austria.

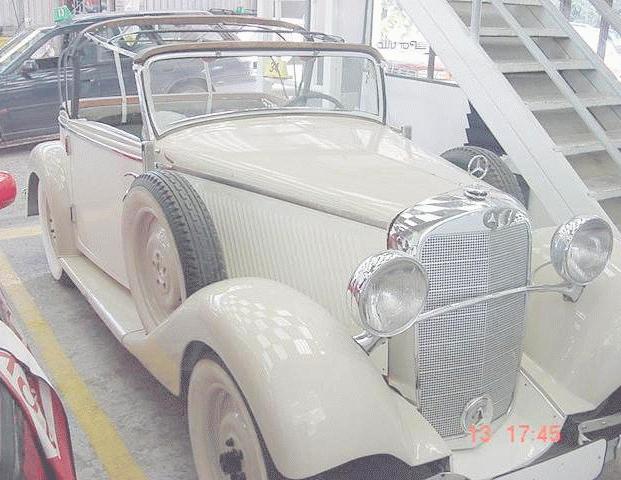

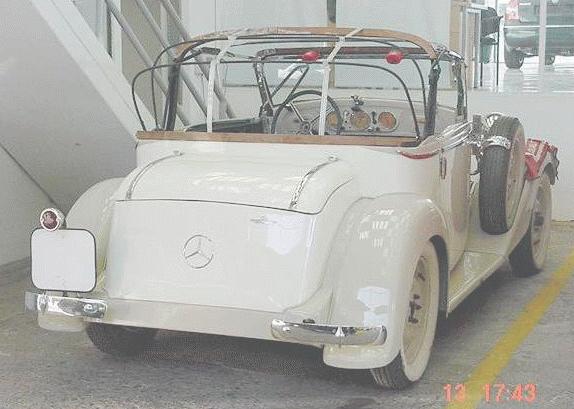

1935 Cabriolet A on color photos, Motor
Nr. 125251, is courtesy of the owner - Mauricio Vender Smith (Santiago, Chile).
