Oldtimer picture gallery. Cars. Mercedes-Benz 130.
Mercedes-Benz 130 (W23)
Years of production: 1933-1936
Overall production: 4298 examples, see Production table
Body modifications (price in RM):
Chassis (2800 RM, 1934-35)
2-door Limousine (3425 RM, 1934; 3680 RM, 1935; 3200 RM, 1936)
2-door Cabrio-Limousine (3625 RM, 1934; 3900 RM, 1935; 3350 RM, 1936)
2-door Tourenwagen (3900 RM, 1934; 4400 RM, 1935)
Engine: M23 26hp/3400rpm, straight 4-cyl, 4-stroke 1,308cc
Compression ratio: 6.0-6.5 : 1
Bore/Stroke: 70/85mm
Clutch: dry single plate
Length: 4050mm, width: 1520mm, height: 1510mm
Wheelbase: 2500mm
Front wheel track: 1270mm
Rear track: 1270mm
Rear axle clearance: 170 mm
Turning radius: 5m
Gearbox: 3 speeds with overdrive
Hydraulical brakes on all wheels
Weight: 980 kg
Maximal speed: 92 km/h
Tyres: 5.00x17 inches
Fuel tank capacity: 30 + 3 L
Fuel consumption: 10 L/100km

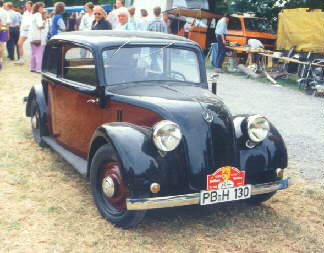

20k color image of Mercedes-Benz 130 Limousine has been kindly sent by Martin Vorwahl, collector of oldtimer photos, Oldenburg, Germany.
Many images and data are from Werner Oswald's book "Mercedes-Benz Personenwagen 1886-1986", 1987, Motorbuch Verlag Stuttgart.
If you have to add, ask or correct me, you are welcome to write me by E-mail Contact. Andrei Bogomolov.
Entrance Gallery Mercedes-Benz cars Sale Links
Last updated 1 XI 1998.
