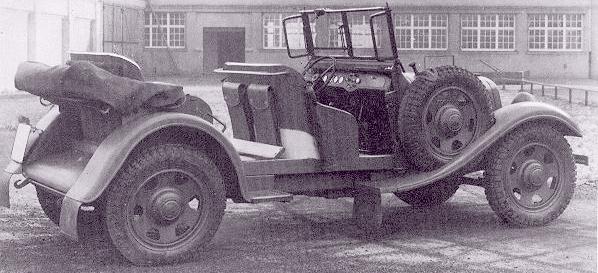

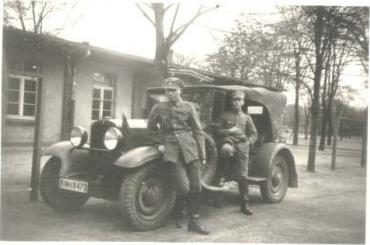

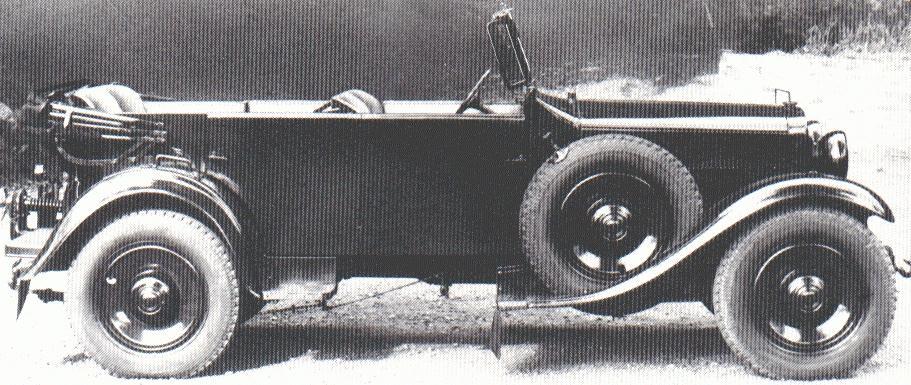

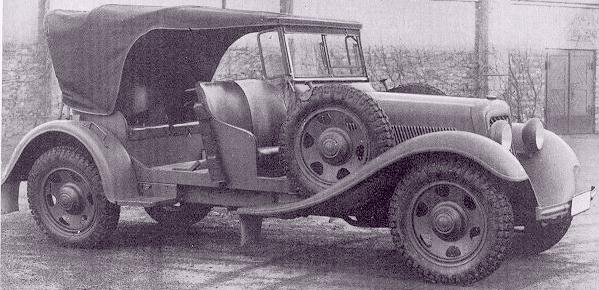

Oldtimer picture gallery. Cars. Wanderer W11 (2,5 Liter).
W11 (from serial Nr. 25350)
Kraftfahrzeug 12 (Kfz.12) and others by Wehrmacht classification
Years of production: 1933-1936, has been replaced by 1937-1941 Wanderer-W11 (3,0 Liter)
Overall production: 2844 units (by many sources, by one other sourse - 6984)
4x2 4-seater front motor rear wheeldrive military car
Length: 4800mm, width: 1780mm, height: 1950mm
Wheelbase: 3000mm, road clearance: 230mm
Front wheel track: 1420mm; toe-in: ?mm; camber: ?o; caster: ?o
Rear track: 1420mm
Turning radius: 7m
Engine:
"Wanderer 2,5 Liter" 50hp/3000rpm, straight 6-cyl. OHV, 2541cc
Bore/Stroke: 72/104 mm
Compression ratio: 5,3 : 1
Carburettor: Solex 35 BFRV
Ignition system: battery 12 Volt, battery capacity - 45 A*h
Interrupter-distributor type: ?; contact clearance: ? mm
Generator type and power: ?, 90W
Starter type and power: ?; 1,2hp
Spark plugs type: ?; ?mm; electrode clearance: ? mm
Cylinder firing order: ?
Water pump cooling
Clutch: dry single plate
Clutch pedal clearance: ?mm
Gearbox: "Prometheus AGN 8" or "Zahnradfabrik Aphon", 4 forward 1 back, without synchronization
Ratios:
"Prometheus AGN 8" I - 4,52; II - 2,61; III - 1,49; IV - 1,00; rear - ?
"Zahnradfabrik Aphon" I - 4,60; II - 2,20; III - 1,48; IV - 1,00; rear - ?
Axle gear ratio: 6,11 or 6,125 or 6,143
Self-blocking differential
U-profile pressed steel frame
Front suspension: leaf springs
Rear suspension: leaf springs
Steering: Zahnradfabrik-Ross
Hydraulic brakes of all wheels
Hand brakes: by line, on rear wheels
Weight: 1630 kg, gross - 2080kg
Maximal speed: 80 km/h
Climb: ?o
Ford passing depth: 550mm
Tyres: 6,00-20 inches, offroad
Tyre pressures (atmospheres): front - ?, rear - ?
Fuel tank capacity: 52 Ltr. (in motor division)
Fuel consumption (highway): 17 Ltr./100km
Cooling system capacity: 11,5 Ltr.
Oil carter capacity: engine - 8 Ltr.; gearbox - ? L; differential - ? L
Outer difference between Wanderer-W11 (2,5 Liter) and Wanderer W11 (3,0 Liter) was in form of wings.
Pictures and data are from:
Werner Oswald "Kraftfahrzeuge und Panzer der Reichwehr,Wehrmacht und Bundeswehr", 1982, Motorbuch Verlag Stuttgart.
eBay Deutschland.
Bart Vanderveen's book "Historic Military Vehicles Directory", "After the Battle" publication, 1989.
Reinhard Frank's book "Lastkraftwagen der Wehrmacht", PODZUN-PALLAS, 1992.
Peter Kirchberg, "Bildatlas Auto Union", Berlin, 1987.
Thanks for help to Jan Szatan, Poland (his homepage is very interesting) and
Johan Andersson, Sweden.
