Oldtimer picture gallery. Trucks. Unic P107.
Unic P107
Years of production: 1937 - 19??.
Overall production: ? (one of most widely
used French half tracks in WW2).
halftrack artillery tractor
Engine: own P39, 60hp/2800rpm,
liquid cooled 4-cyl., carburettor,
4-stroke OHV, 3450cc
Bore/Stroke: ?/?mm
Compression ratio: ?:1
Legth: 48500mm, Width: 1800mm,
Height: 2280mm
Road clearance: 340mm
Front track:1395mm
Rear track: 1340mm
Gearbox: 4-speed + 1 rear
2-speed auxiliary gearing.
2,9 or 3,2 :1 axle gear ratio
Clutch: dry plate
Hydraulic brakes on sprocket wheels
(also for steering in sharp turns)
Rigid front axle with semi-elliptic
leaf-spring suspension
Electrics: 6- or 12 Volt
Weight: 3000 kg (gross weight: 5400 kg)
Tyre size: 30x5
Fuel consumption: ? L/100km
Fuel tank capacity: 160 L
Maximal speed: ? km/h
Modifications: artillery tractor (generally), engineers vehicle, North Africa type (hardtop cab).
These vehicles were widely used by
German Wehrmacht in WW2 under
designation "Leichter Zugkraftwagen 37
Unic (f) or Zgkw. U 304 (f)".

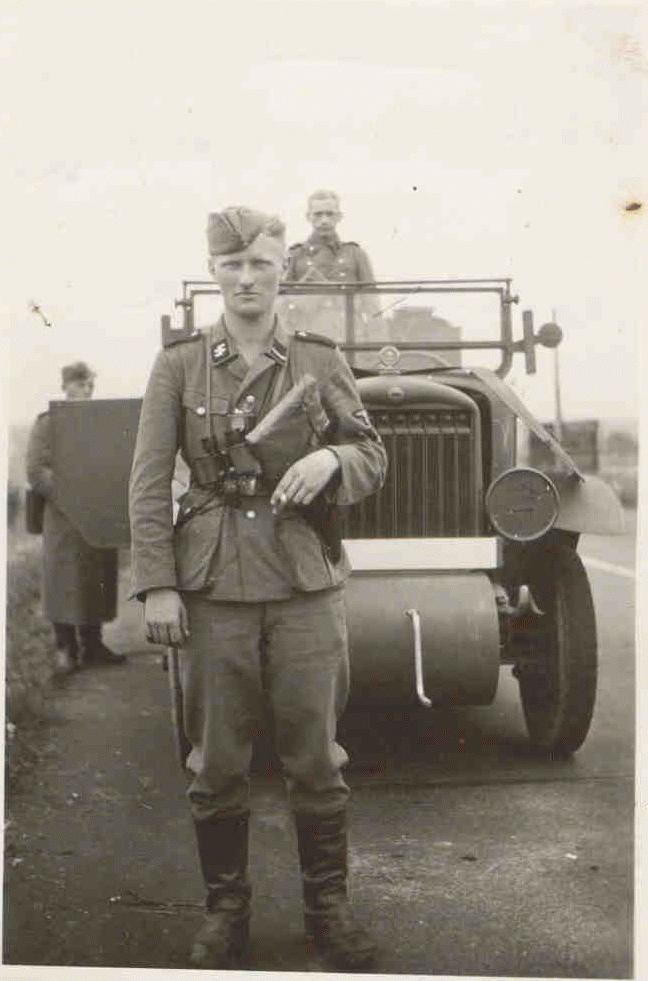

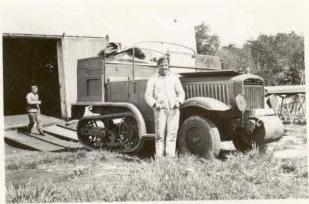

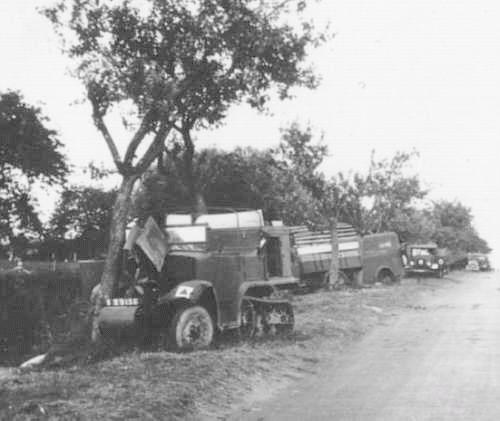

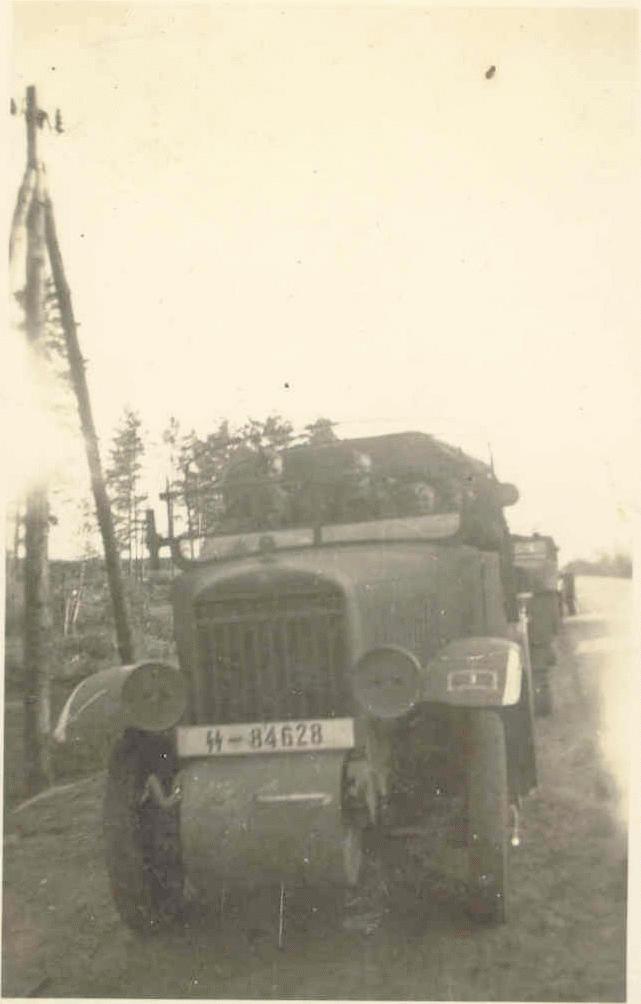

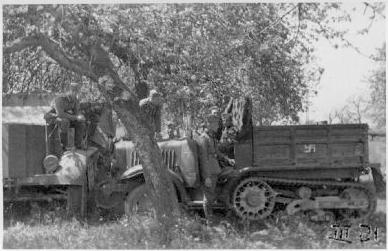

Photos are from:

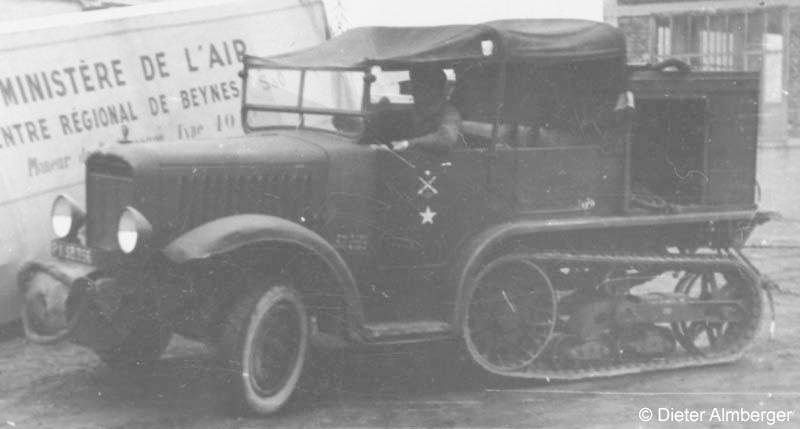

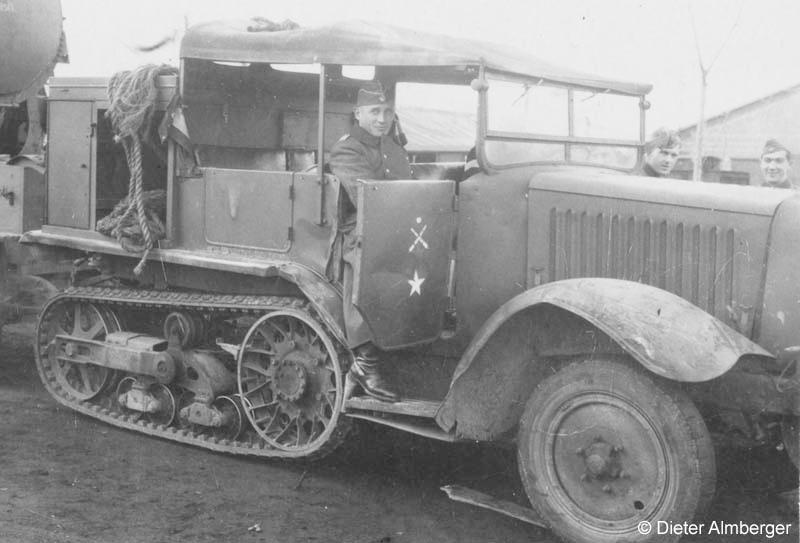

2 photos are courtesy of Dieter
Almberger (Austria, homepage).
Data are from Bart Vanderveen's book "Historic Military Vehicles Directory".
eBay Deutschland.
(16 XII 2001) For Unic type P107
halftrack artillery tractor wanted: fenders,
rubber belts, headlights, top, seats,
intruments and other parts. E-mail:
aasphjell@hotmail.com, Audun Asphjell,
Norway. Everything related is interesting. Thanks!
