Oldtimer gallery. Cars. Peugeot 402.

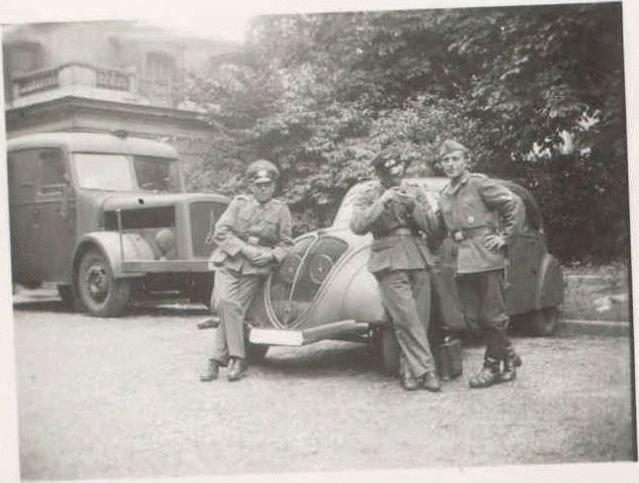

37k WW2 photo of Peugeot 402, Paris41k WW2 photo of Peugeot 402 and Magirus, Paris(?)46k photo of 1937/38 Peugeot 402B 4-door saloon, dashboard
Peugeot 402, 402B, 402L (Lègére),
402DS, DK5J, D5A

Years of production: 1935-1937-1941
Overall production: 79862 (402) +
24745 (402L, since 1937) +
approximately 200 (402DS)
by another source: 15500 (402 sedan, 1935-1938),
7936 (402 Eclipse, 1936-1939), 10000 (402B, 1938-1941).
14500 (DK5J/D5A - 402B based 1,4-ton commercials, IX 1939 - VI 1941)
Body types: 4-door sports saloon, 5/6-seater saloon, 6/8-seater family saloon, commercial saloon,
2-door coupe, 2-door cabriolet, 4-door cabriolet, roadster, roadster-coupe, Variante Eclipse with
hard-top disappearing to the rear part of body, 1,4-ton DK5J/D5A commercial.
Engine (pre-1939): watercooled 55hp/4000rpm straight 4-cyl. 4-stroke OHV, 1991cm3

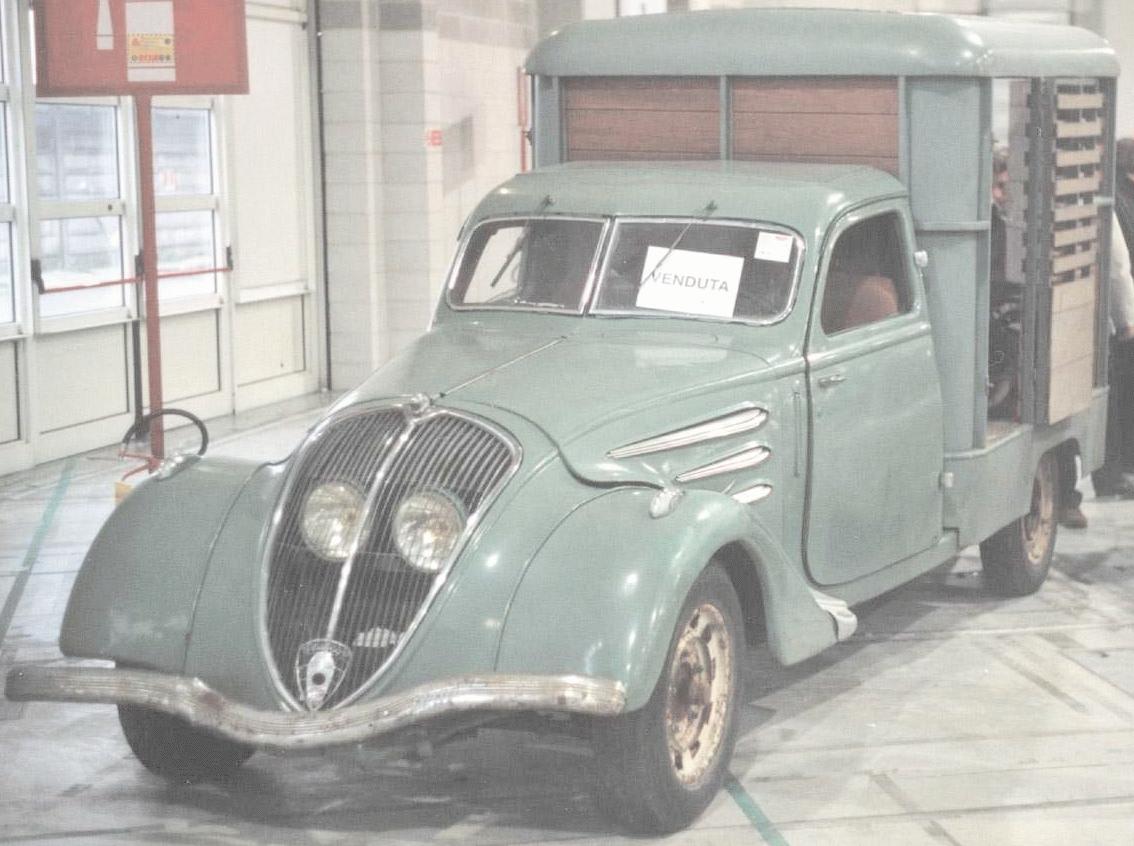

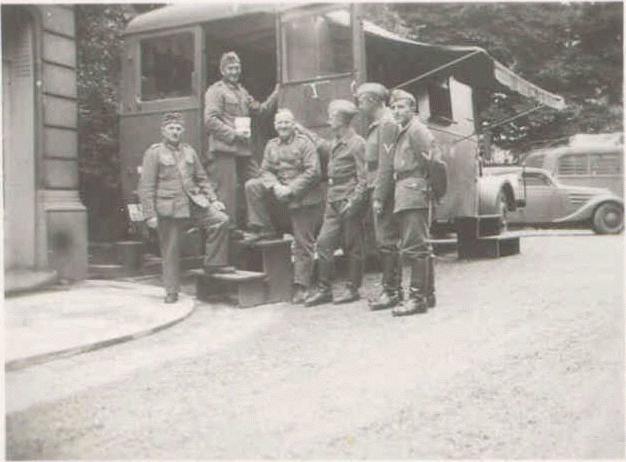

22k photo of Peugeot DK5 grille107k photo of early Peugeot 402 horse delivery box van?36k WW2 photo of Peugeot 402 and Magirus, Paris(?)Bore/Stroke: 83/92 mm
Engine (since 1938): watercooled
60hp/4000rpm straight 4-cyl.
4-stroke OHV, 2142cm3
Bore/Stroke: 83/99 mm
Engine (DK5J/D5A): Peugeot THU2,
watercooled 45hp/?rpm straight
4-cyl. 4-stroke OHV, 2142cm3
Bore/Stroke: 83/99 mm

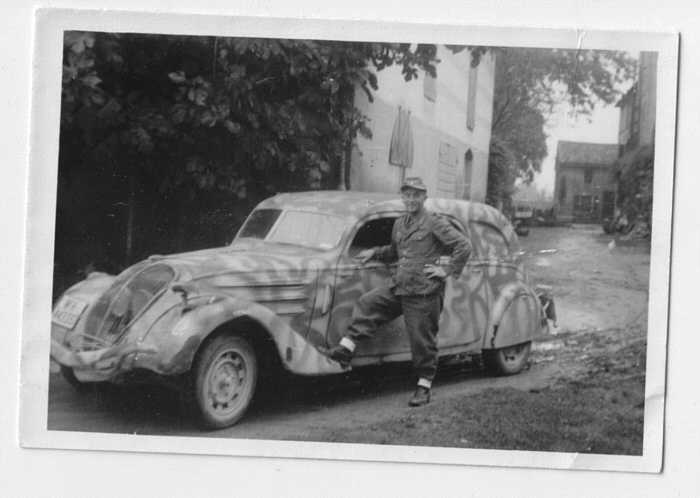

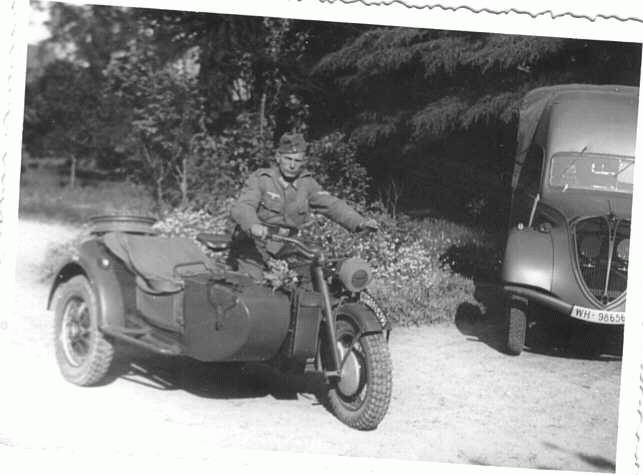

34k WW2 photo of Peugeot DK5, Zuendapp37k WW2 photo of Peugeot 40237k WW2 photo of Peugeot 402 long wheelbaseDimensions:
402 (1935-1938): length: 485cm, width:
164cm, height: 160cm, wheelbase: 315cm
402 Eclipse (1936-1939): length: 500cm,
width: 166cm, height: 157cm,
wheelbase: 330cm
402B (1938-1941): length: 485cm,
width: 164cm, height: 154cm, wheelbase: 315cm
DK5J/D5A (IX 1939 - VI 1941): length: 5130mm, width: 1850mm, height: 2270mm, wheelbase: 3385mm

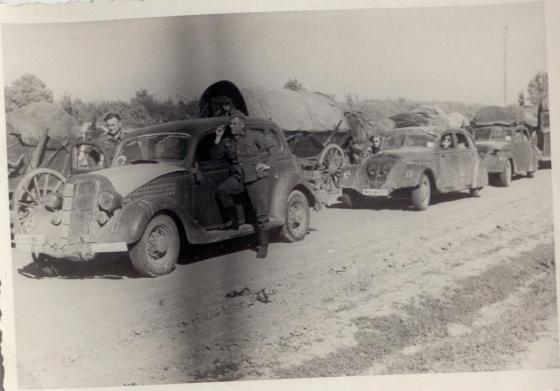

28k WW2 photo of Ford V8, Peugeot 402, Peugeot 30233k WW2 photo of Peugeot 402 long wheelbase51k photo of 1937/38 Peugeot 402B 4-door saloonFront wheel track: 1318mm,
independent suspension with
transversal leaf spring
(since 1938 - 135cm)
Rear track: 1353mm, cantilever
suspension (since 1938 - 1383mm)
402L (1937-1939-?):
length: ?mm, width: ?mm, height: ?mm, wheelbase: 2883mm
402L and 402DS were light versions, combination of Peugeot 302 body and 402 engine, 402DL only with 1991cc engine to

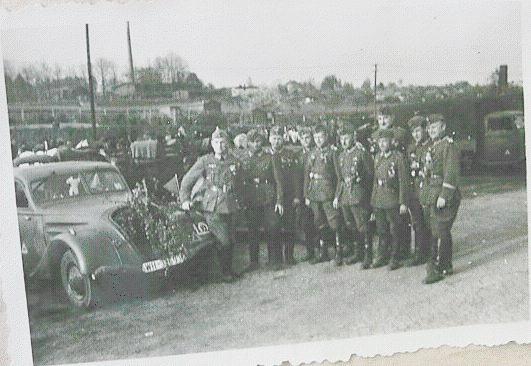

26k WW2 photo of Peugeot 202, Peugeot 402, trailers of French Army38k WW2 photo of Peugeot 402, Ostfront55k photo of 1939-1941 Peugeot DK5Jbe in under 2 Litre sport class.
Compression ratio: 8,4 : 1 (402DS)
Carburettor type: ?
Gearbox:
3-speed, with overdrive by special order
Brakes: ?
12 Volt electrics
Weight: 1265kg (402 sedan, 1935-1938), 1419kg (402 Eclipse, 1936-1939), 1690kg (DK5J/D5A)

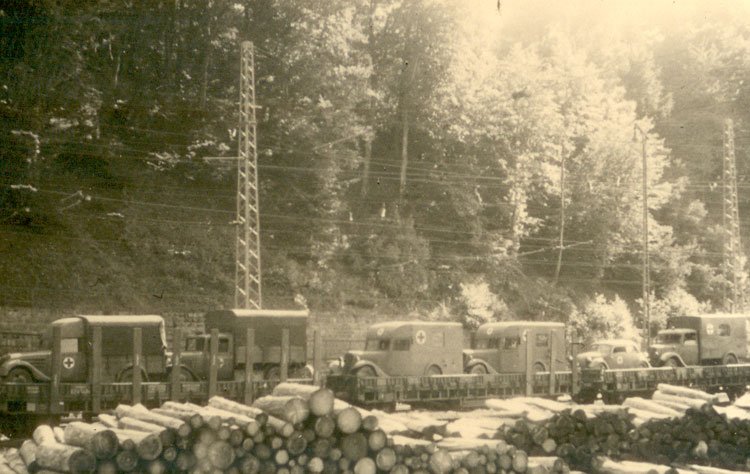

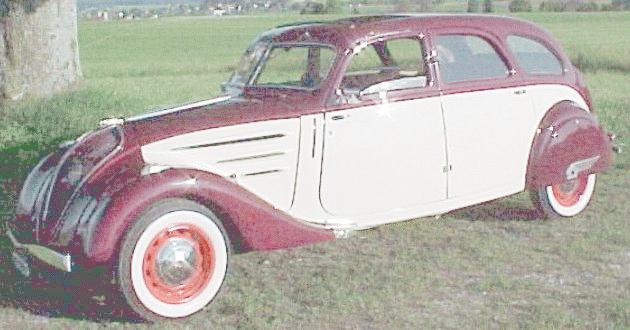

101k 1940 photo of Peugeot 402 (back), Duenkirchen15k photo of 1939 Peugeot 402B 4-door saloon87k 1941 photo of Peugeot DK5 (left), RussiaMaximal speed:
110 km/h (since 1938 - 125 km/h)
Tyres: 15x50 inches (DK5J/D5A, dual on
the rear)
Fuel tank capacity: ? L
Fuel consumption: ? L/100km
Price: ?
In 1937/38 402 was modified to 402B, with larger engine, humpback luggage compartment and slightly different grille.

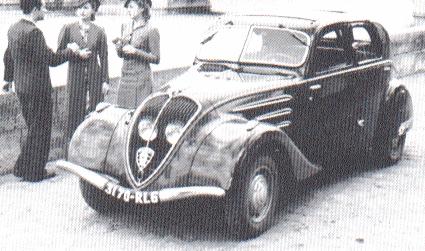

33k WW2 photo of Peugeot DK5, Ju-52 Segelschlepper, Holm, Novgorod region, USSR28k photo of 1939 Peugeot 402L 4-door saloon11k old photo of early (slant back) Peugeot 402 4-door saloon
Sources of photos:
eBay Deutschland.

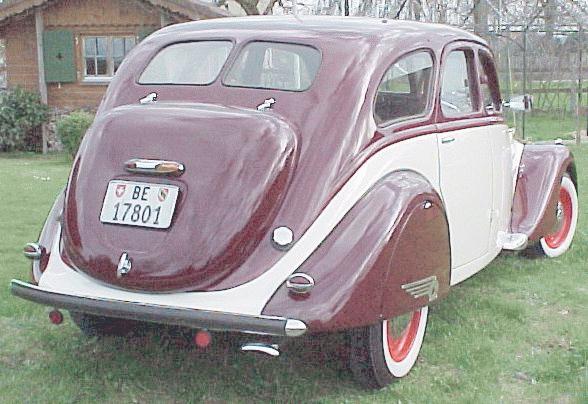

Heinz Luder (Büren zum Hof,
Switzerland), owner of this duo-tone
1937/38 Peugeot 402B,
"A-Z of Cars of the 1930s" by M.Sedgwick & M.Gillies,
Patrick Castelli (Italy),

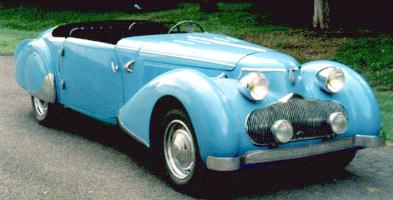

39k photo of 1937/38 Peugeot 402B 4-door saloon17k photo of 1937 Peugeot 402 cabriolet by Pour Tout1937 Peugeot 402DS roadsterJan Szatan, Poland, (this is link to his interesting site),
Hemmings Motor News,

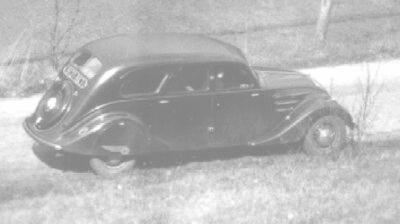

Yannick Philipp Schwarz (Kassel,
Germany). This old black & white photo of pre-1938 Peugeot 402 is
from family album.
Pennsylvania Motor Sport

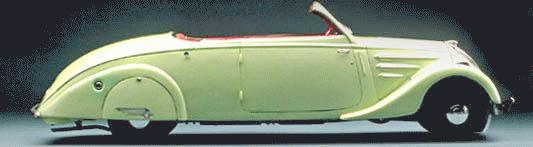

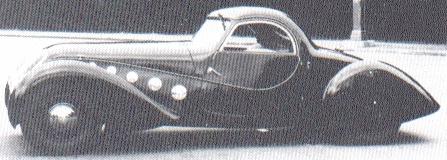

19k photo of 1939 Peugeot 402DS roadster coupe by Paulin13k photo of 1937 Peugeot 402 Variante Eclipse
