Oldtimers picture gallery. Cars. Mercedes-Benz 600 V.

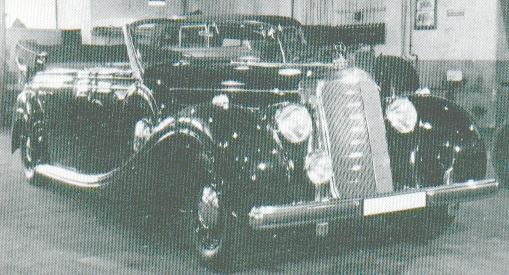

38k photo of 1940-1941 Mercedes-Benz 600 W W148 Pullman-Cabriolet F
Mercedes-Benz 600 V (W148) (and 600 W?)
(some data are summary with 600 K W148)
Years of production: 1941-1942
Overall production: 12
Body types (on the photos are 1:5 scale models of April 1940):

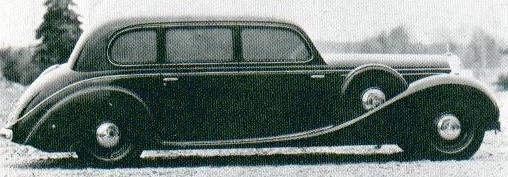

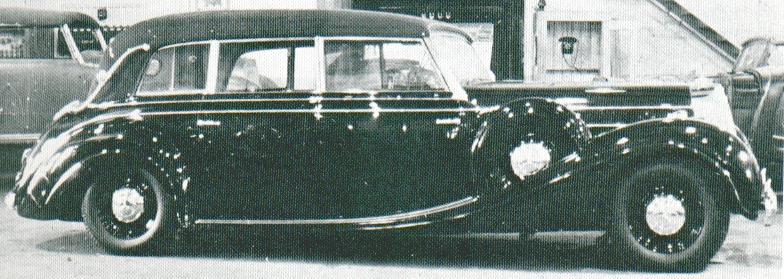

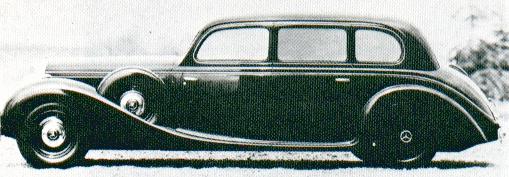

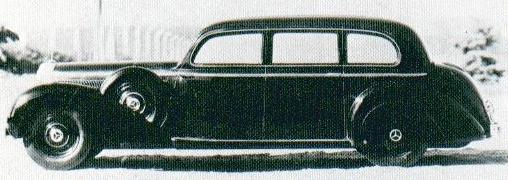

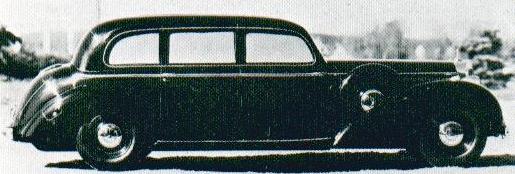

Pullman-Limousine (left), Pullman-Limousine (right), Tourenwagen, Cabriolet F, Innenlenker-Limousine (left), Innenlenker-Limousine (right), Cabriolet D.
Engine: Daimler-Benz M148 V12-cyl (80o), 4-stroke, 6020cc 170hp/3600rpm

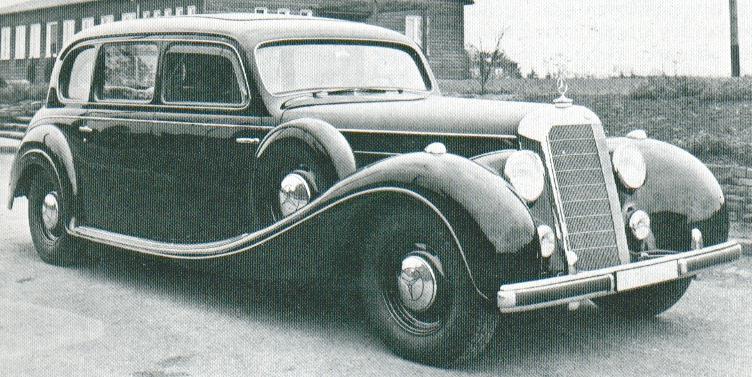

75k photo of 1940-1941 Mercedes-Benz 600 W W148 Innenlenker-LimousineWheelbase: 3780 or 3880mm
Length: 5870-6000mm, width: 2070mm; height: 1800mm
Compression ratio: 6,3 : 1
Bore/Stroke: 82/95mm
Clutch: Dry twin plate
Front wheel track: 1600mm
Rear track: 1650mm

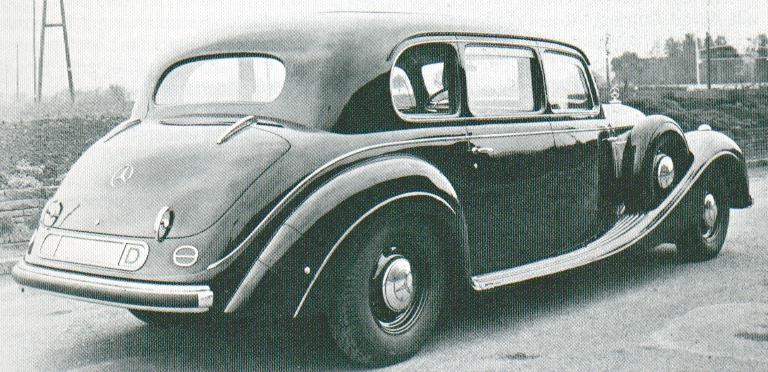

73k photo of 1940-1941 Mercedes-Benz 600 W W148 Innenlenker-LimousineRoad clearance: ?mm
Turning radius: 7,50 - 7,85 m
Gearbox: 5-speed (V = overdrive)
Brakes: hydraulic, all-wheel
Weight: 3200-3400 kg
Maximal speed: 160 km/h
Tyres: 8,25-17 inches
61k photo of 1940-1941 Mercedes-Benz 600 W W148 Pullman-Cabriolet FFuel tank capacity: 195 L
Fuel consumption: 32 L/100km
Photos and data are from Werner Oswald's book "Mercedes-Benz Personenwagen 1886-1986", 1987, Motorbuch Verlag Stuttgart..
