Oldtimer picture gallery. Motorcycles. Pre-1932 USA makes. Eagle.
IX 1909 - 1911, Eagle Motor Works, Minneapolis, Minnesota, USA.
Entrance Gallery
Motorcycles
Pre-1932 USA motorcycles

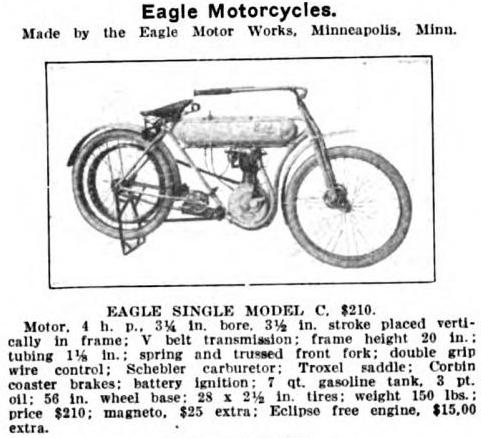

1911 (seems nothing changed, no Model A, options: magneto ($25 extra), Eclipse free engine (belt "clutch", $15))

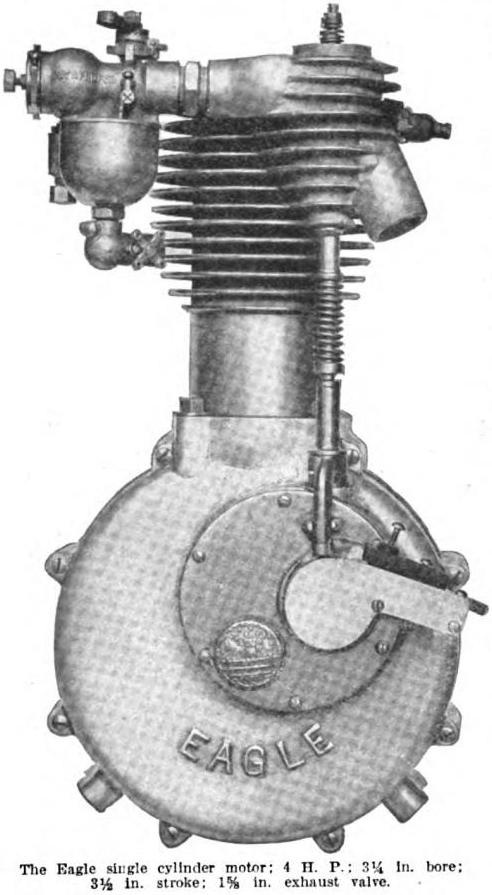

Eagle Model C,
1-cyl. IOE, 4hp,
29.04 cu in (475.8cc), bore 31/4", stroke 31/2", battery ignition, 1-speed,
V-belt drive, ? mph, $210, color French grey, 40k photo.
1910 (seems nothing changed, the same photo of Model A used, no Model B)

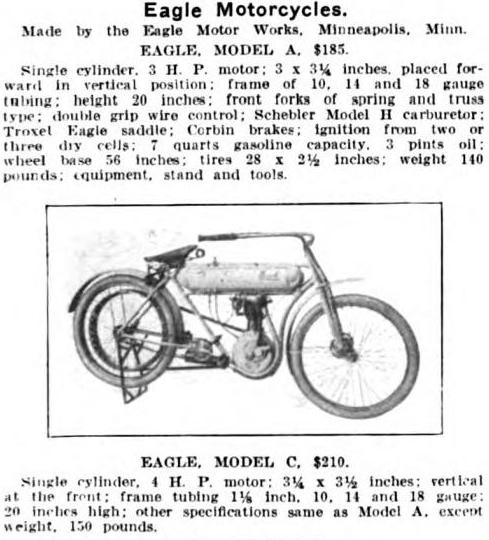

Eagle Model A, 1-cyl. IOE, 3hp,
24.74 cu in (405.4cc), bore 3", stroke 31/2", battery ignition, 1-speed, V-belt drive, ? mph, $185, color
French grey, 84k photo.
Eagle Model C,
1-cyl. IOE, 4hp,
29.04 cu in (475.8cc), bore 31/4", stroke 31/2", battery ignition, 1-speed,
V-belt drive, ? mph, $210, color French grey, 50k photo.

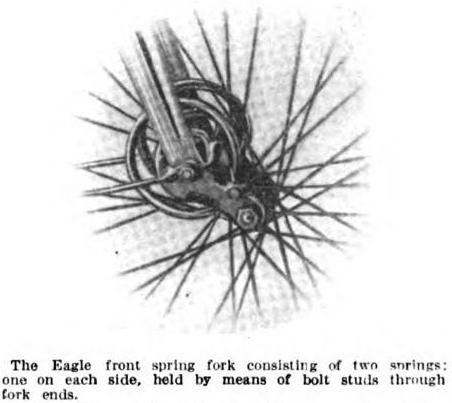

1909 (Model B was menchioned in IX 1909, but wasn't mentioned in XI 1909, Eagle spring fork)

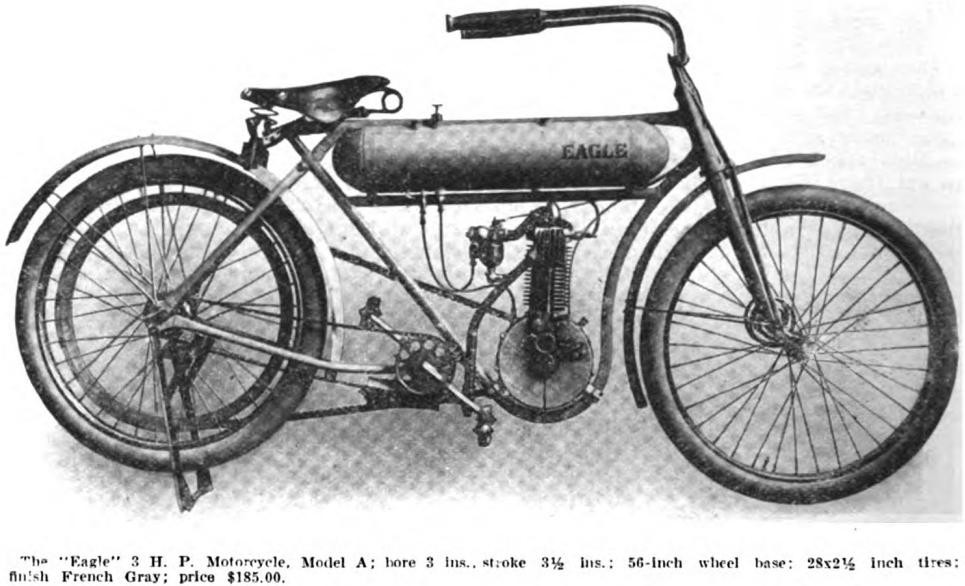

Eagle Model A, 1-cyl. IOE, 3hp,
24.74 cu in (405.4cc), bore 3", stroke 31/2", battery ignition, 1-speed, V-belt drive, ? mph, $185, color
French grey, 84k photo.
Eagle Model B, 1-cyl. IOE, 31/2hp, ? cu in, bore ?, stroke?, battery ignition, 1-speed,
V-belt drive, ? mph, $200, color French grey.
Eagle Model C, 1-cyl. IOE, 4hp,
29.04 cu in (475.8cc), bore 31/4", stroke 31/2", battery ignition, 1-speed,
V-belt drive, ? mph, $225 (IX 1909), $210 (XI 1909), color French grey.
Photos and data are from:
Author's archive.
Cycle and Automobile Trade Journal, 1909, 1910, 1911.
eBay.
Standard Catalog of American Motorcycles 1898-1981 by Jerry Hatfield.
Thanks for help to Evgenii Pevzner (Moskva), motorcycle historian.
