Oldtimers picture gallery. Cars. Delahaye 135MS.

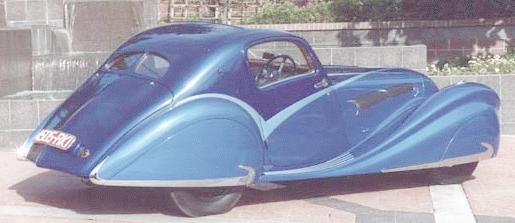

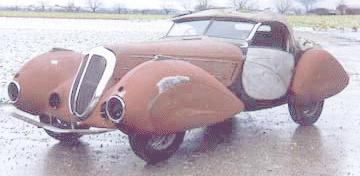

49k photo of 1936 Delahaye 135 Competition Court coupe by Figoni et Falaschi, Chassis 4657615k photo of 1938 Delahaye 135 Competition roadster by Figoni et Falaschi
Delahaye 135MS

Years of production: 1936-1954
Overall production: about 2000 all "135" model cars
4x2 front engine, rear wheel drive
Engine: 120hp/?rpm, 6-cyl. OHV, water cooled, carburettor, 4-stroke, 3557cc
Bore/Stroke: 84/107 mm
Length: ?mm, width: ?mm, height: ?mm
Chassis: length: 4028mm, width: 1790mm
Wheelbase: 2950mm (2,70m on factory shortened Figoni & Falaschi court coupe shown here); road clearance: ?mm

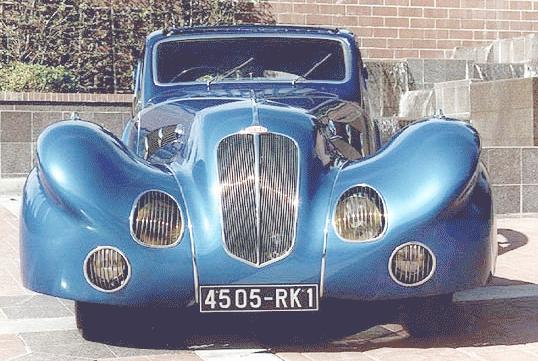

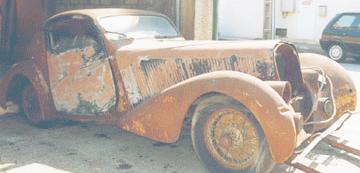

12k photo of 1936 Delahaye 135 Competition coupe by Figoni et Falaschi29k photo of 1936 Delahaye 135 Competition Court coupe by Figoni et Falaschi, Chassis 46576Front wheel track: 1410-1380 mm
Rear track: 1485mm
Both axles: transverse-leaf independent
Carburetter: ?
Gearbox: 4-speed?
Bendix brakes
Centre-lock wire wheels

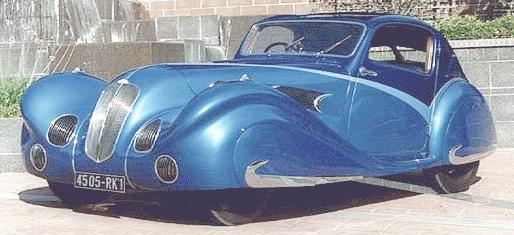

20k photo of 1936 Delahaye 135 Competition Court coupe by Figoni et Falaschi, Chassis 46576Weight: ? (chassis - 935kg)
Maximal speed: 177? km/h
Tyre size: 5,50x17 inches
Fuel tank capacity: 75 Ltr.
Fuel consumption: ? L/100km
Photos are from:
Blackhawk Collection,
Fine Classic Cars site of Christoph Grohe.
Data are from "A-Z of Cars of the 1930s" by M.Sedgwick & M.Gillies and from Kai Rübenhagen (Germany), thanks, Kai!.
