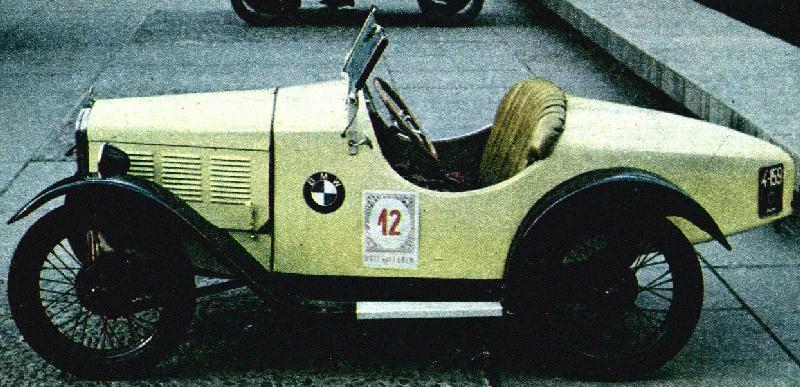

BMW Dixi DA3
Years of production: 1929-?
Overall production: ? units
4x2 2-seater sport
Engine: 15hp/3000rpm (or 22-24hp/4000rpm), 4-cyl 4-stroke SV, 748cc
Length: ?mm, width: ?mm, height: ?mm
Wheelbase: 1905mm, road clearance: ?mm
Front wheel track (sport): 1000mm; toe-in: ?mm; camber: ?degree; caster: ?degree
Rear track(sport): 1030mm
Turning radius: ?m
Bore/Stroke: 56/76 mm
Pistons type and material: ?, ?
Cold clearance between tappet and valve stem: intake - ?mm, exhaust - ?mm
Compression ratio: 5,6:1
Carburettor: horizontal Zenith 22 K (sport - Solex HK)
Dimensions: diffusor - ?mm; main jet - ?/?; idling jet - ?mm
Ignition system: magneto (Bosch, 6V, sport - 12V)
Interrupter-distributor type: ?; contact clearance: ? mm
Generator type and power: ? ?
Spark plugs type: ?; ?mm; electrode clearance: ? mm
Cylinder firing order: ?
Clutch: dry single plate
Clutch pedal clearance: ?mm
Gearbox in one block with motor: 3 speeds + rear
Ratios: I - ?, II - ?, III - ?, rear - ?
Differential ratio: ?
Front suspension: ? with one spring
Rear suspension: ? on 2 quarterelliptical springs
Mechanical all-wheels shoe brakes
Normal flexure of ventilator belt: ?mm
Weight: 460kg (sport - 370kg)
Maximal speed: 75 km/h (sport - 100 km/h)
Climb: ? degrees
Tyres: 4.50-19 inches
Tyre pressures (atmospheres): front - ?, rear - ?
Fuel tank capacity: ? L
Fuel consumption: 9-11 L/100km (315/1 - 10 L/100km)
Cooling system capacity: ? L
Oil carter capacity: engine - ? L; gearbox - ? L; differential - ? L
What else in the net:
Dixi-Kasi (in German) - Alles über die kleinen Oldies aus Eisenach!
Photoa are from:
"Svet Motoru" magazine, Czechoslovakia.

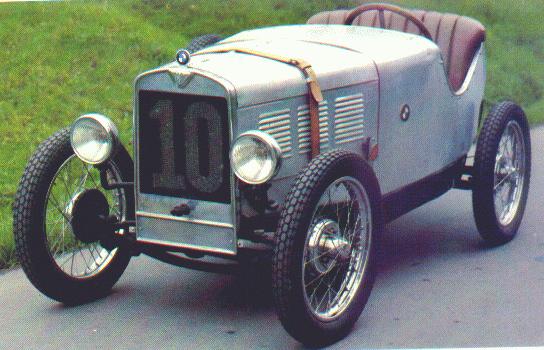

Sergei Zadov (owner of the 1st pictured car) and Andrei Urban (Rubezhnoje, Lugansk region, Ukraine).
