Oldtimer picture gallery. Motorcycles. L-300.

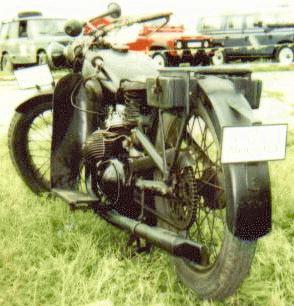

23k photo of 1931 L-30079k photo of L-30026k photo of 1931 L-300
L-300 (since 1933 also
"Krasnyi Oktyabr")

Year of production: IX 1930 - 1933
("Tremass" plant), 1933 - 1939
("Krasnyi Oktyabr" plant)
Overall production: ?
Engine: 6hp/2800rpm, 1-cyl, 2-stroke 293cc (with deflector)
Bore/Stroke: 74/68 mm
Compression ratio: ?
Length: ?mm, width: ?mm, height: ?mm, saddlehight: ?mm
105k photo of L-30084k photo of L-30016k photo of L-300Wheelbase: ?mm, road clearance: ?mm
Carburetter: LKZ-22 (of Framo type)
Ignition: flywheel magneto
Gearbox: 3 speeds, separate unit
Ratios: ?
Chain
Frame: stamped, on bolts
Front fork: stamped, parallelogram
Weight: 135 kg (fuelled)
16k photo of L-300107k photo of L-30077k photo of L-300Maximal speed: 80 km/h
Tyres: 26x3,25" inches
Fuel tank capacity: ? L
Fuel consumption: ? L/100km
Photos are from:

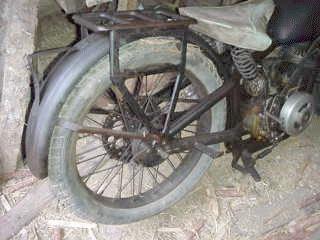

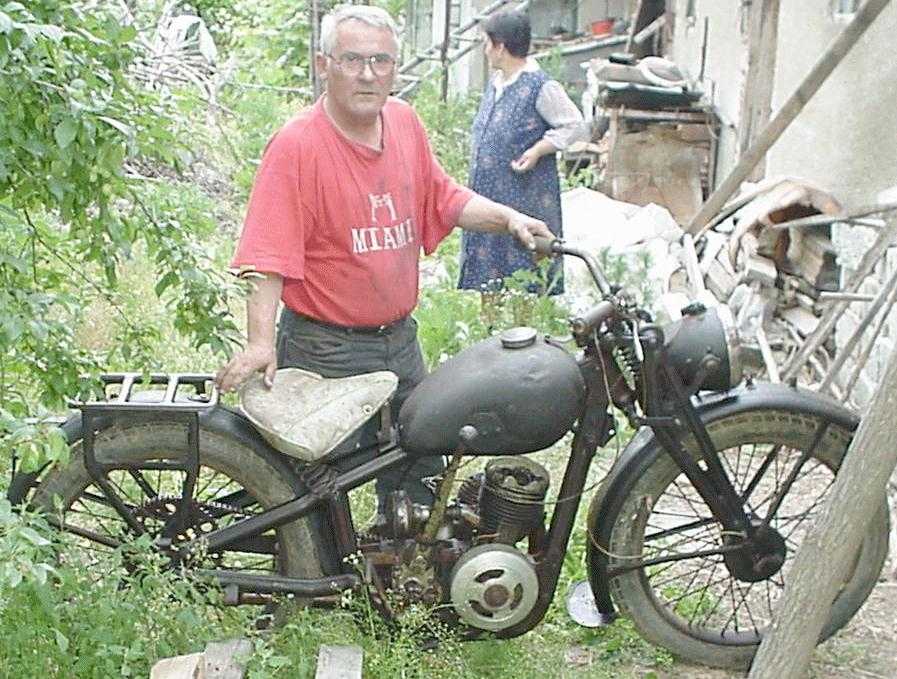

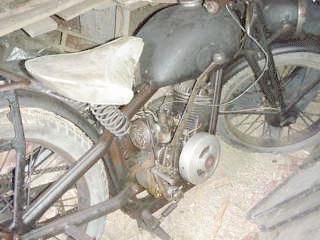

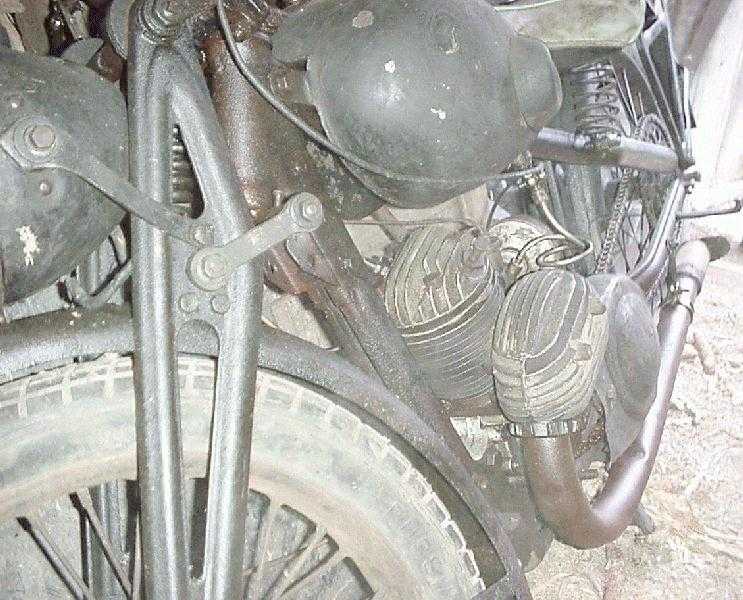

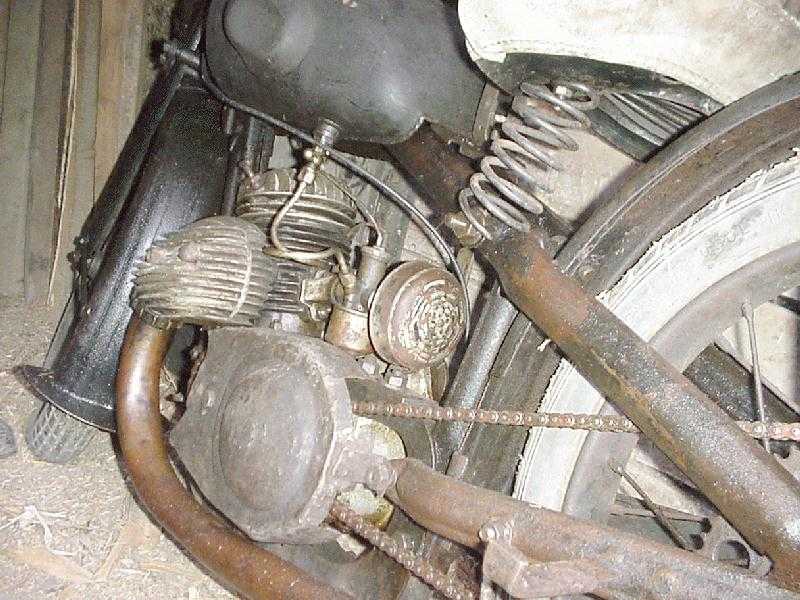

Andrei Badescu (Bucharest), Andrei
found this barn fresh L-300 staying
unused since WW2 times,

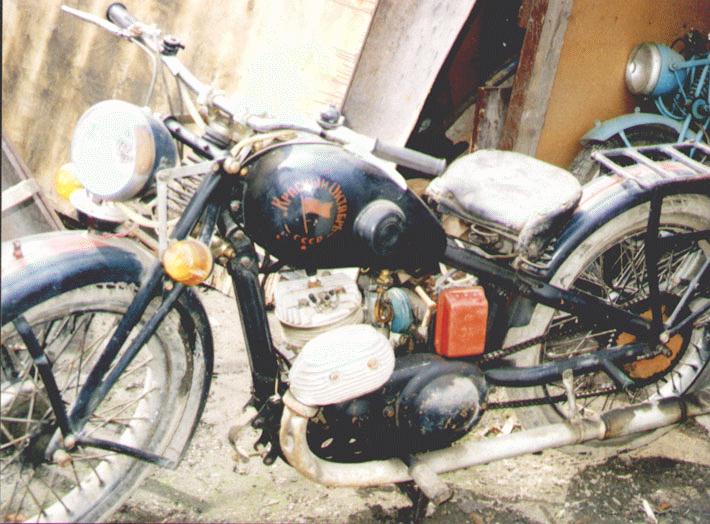

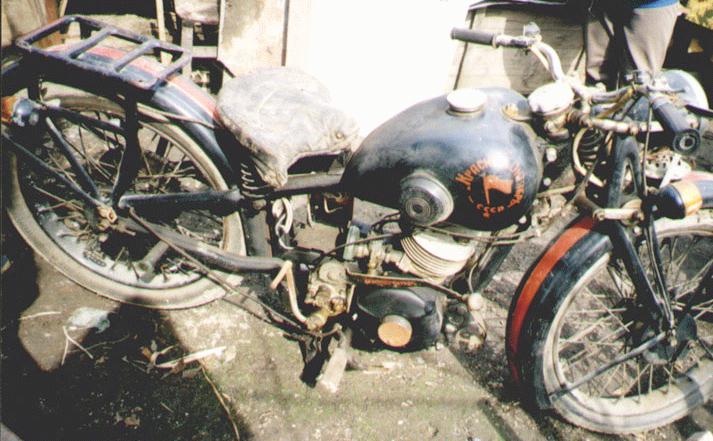

Igor Guzienko (Kiev),
67k photo of L-30068k photo of 1933-1939 L-300Za Rulyom magazine (Russia).

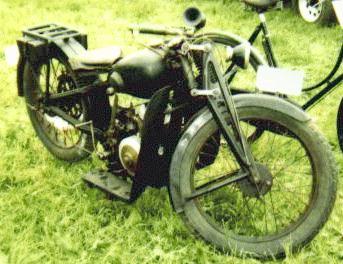

1933 L-300 on upperleft and upperright photos is owned by Andrei Myatijev (Moscow) (Bicycle Museum)
