Oldtimer picture gallery. Motorcycles. DKW-NZ500.

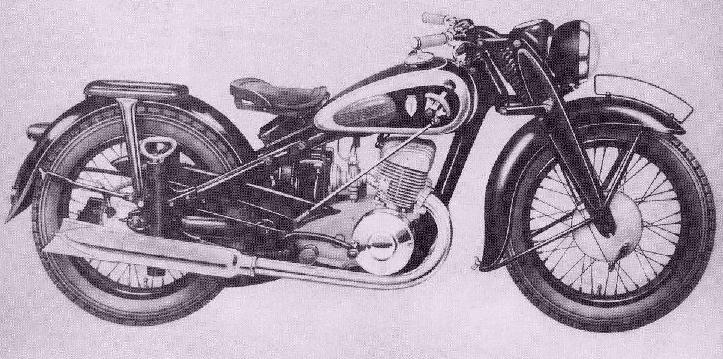

80k image of DKW-NZ500
DKW-NZ500 (data for solo)

Years of production: 1939 - 1941
Overall amount: 4600 units
Engine: 18.5hp/4200rpm, 2-cyl, 2-stroke 489cc
Bore/Stroke: 64/76 mm
Compression: 6.0:1
Length: 2200mm, width: 73cm, saddleheight: 74cm
43k image of Wehrmacht DKW-NZ500Wheelbase: 144cm, Clearance: 14cm
Gearbox: 4 speeds
Carburettor: Amal WN 76/456
Chain
Weight: 195 kg
Maximal speed: 115 km/h
Tyres: 3.50-19 inches
Fuel capacity: 14 L
Fuel consumption: 4.5 L/100km
These pictures are from Peter Kirchberg's book "Bildatlas Auto Union", Berlin, 1987.

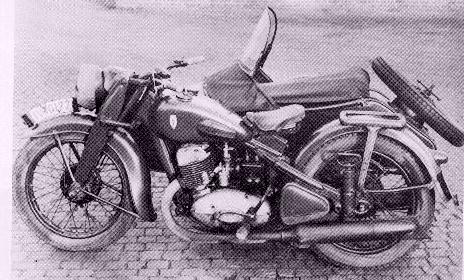

Bottom picture shows NZ500 in Wehrmacht version.
Thanks for help to Pedro J. Hernandez Romera (Spain) and to
Jancsó András, owner of DKW NZ500 (Hungary).
