Oldtimer picture gallery. Trucks. Citroën Type 23.

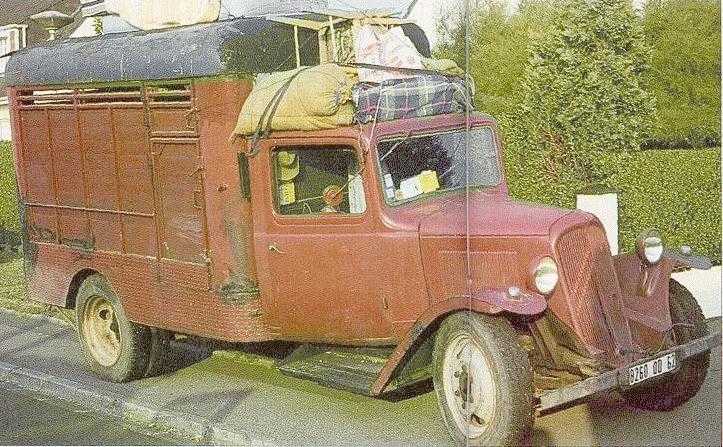

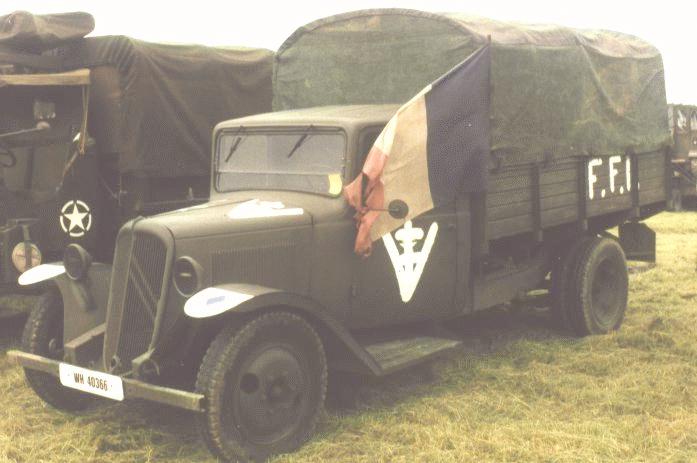

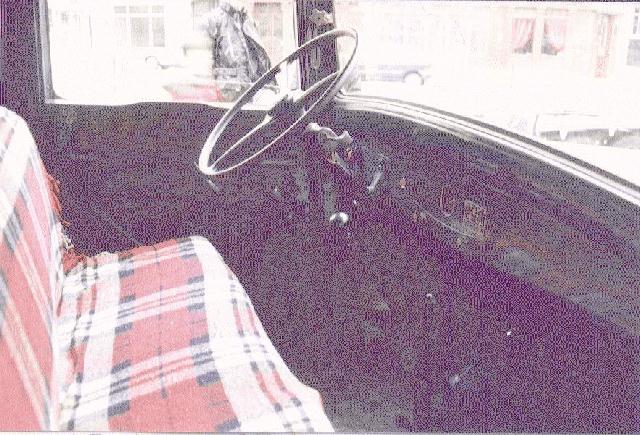

106k photo of Citroën T2381k photo of Citroën T23, interior
Citroën T23

Years of production: 1935 - 1944.
Overall production: ? (3700 units in 1941-1944).
4x2 1,5-ton General Service truck with rear wheel drive.
Engine: Citroën 11CV, 50hp/?rpm, 4-cyl., carburettor, 4-stroke OHV, 1911cc
Bore/Stroke: ?/?mm
Compression ratio: ?:1
Length: 5540mm, Width: 1960mm, Height: 2700mm

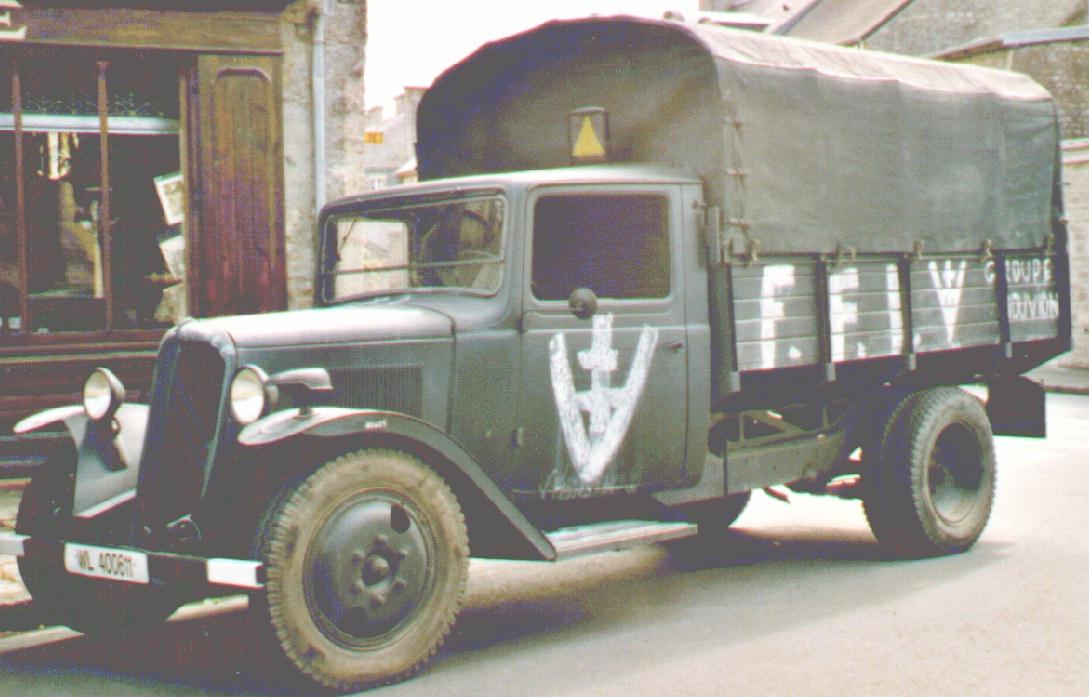

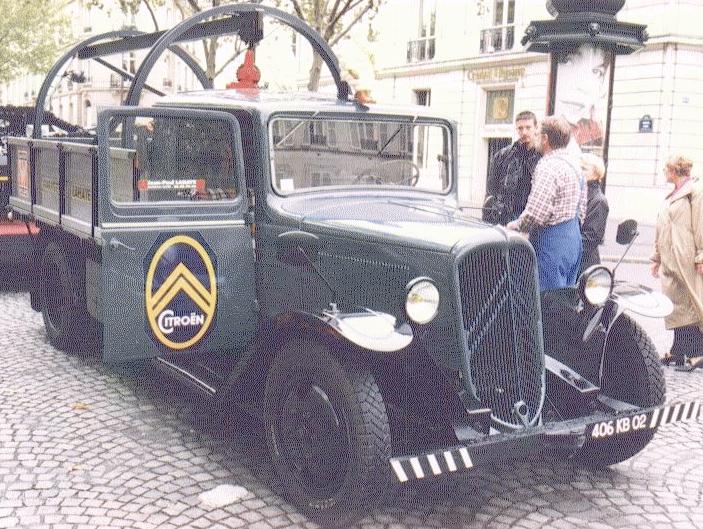

42k photo of Citroën T2392k photo of Citroën T23Wheelbase: 3750mm (early versions - 3380mm), road clearance: ?mm
Gearbox: 4-speed + 1 rear
Mechanical brakes
Leaf-spring suspension
Weight: 2130 kg
Tyre size: 16x50C
Fuel consumption: ? L/100km
Fuel tank capacity: ? L

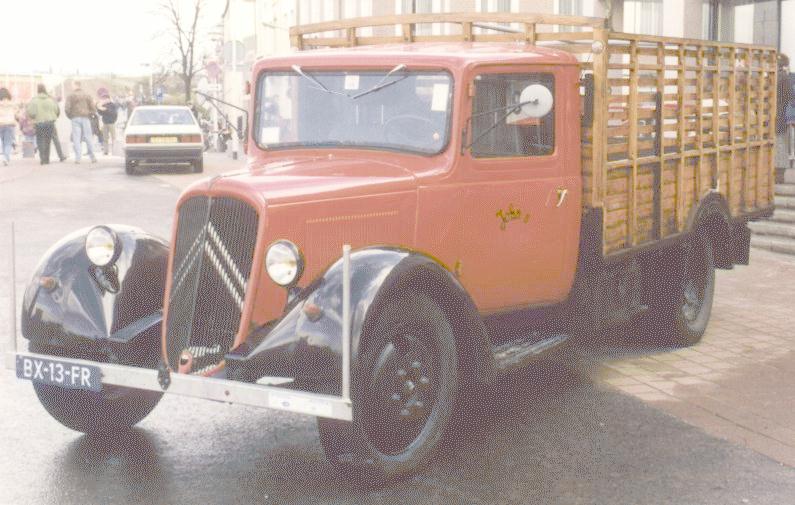

73k photo of Citroën T2386k photo of Citroën T23Maximal speed: ? km/h
Photos are from:
Piet van Hees (Eindhoven, Holland, visit his interesting homepage!)
Denis Orlov, Moscow.
Jan Szatan, Poland (his homepage is very interesting too!)
Data are from Bart Vanderveen's book "Historic Military Vehicles Directory".
You are welcome to write me by E-mail Contact. Andrei Bogomolov.
