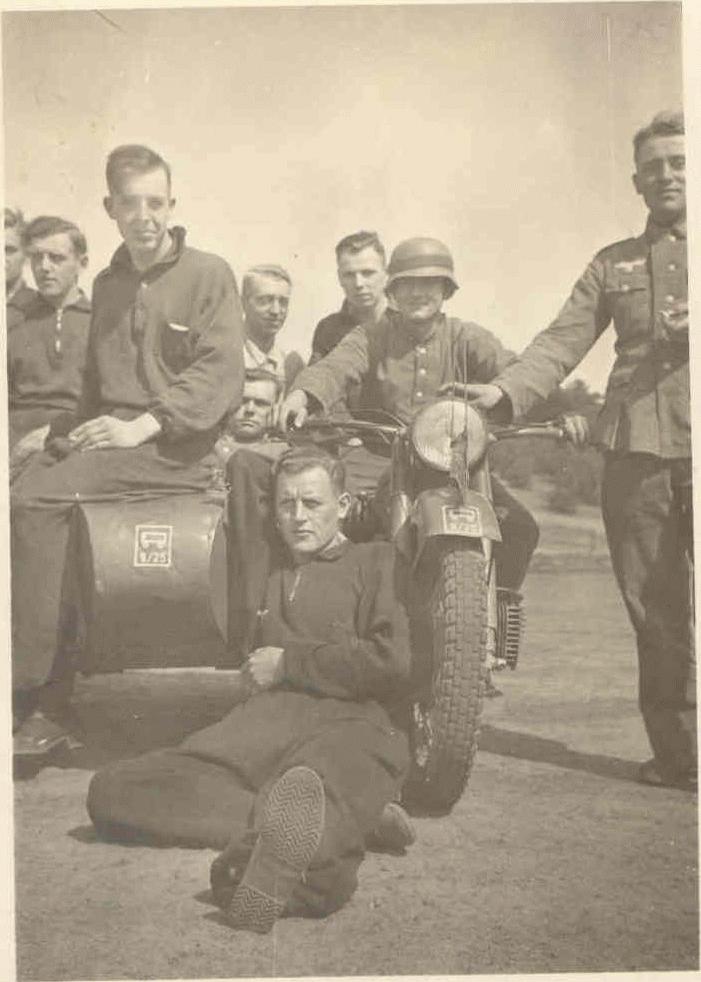

67k WW2 photo of early BMW-R12 sidecar, 9th company of 25th Infantry Regiment72k WW2 photo of early BMW-R12, 9th company of 25th Infantry Regiment57k WW2 photo of BMW-R12 Wehrmacht
BMW-R12

Years of production: 1935 - 1941
Overall production: about 20000 civilian
+ about 10000 military, total: 36008
Engine: sidevalve 18hp/3400rpm or
20hp/4000rpm, 2-cyl 4-stroke aircooled
boxer-motor 745cc SV
Bore/Stroke: 78/78 mm
Compression ratio: 5,2 : 1
Dimensions (solo):
length: 2100mm, width: 900mm,
height: 940mm, saddle height: 70cm
Dimensions (gespann, with sidecar):
length: 2520mm, width: 1615mm, height: 1000mm
Wheelbase: 1380mm
Rear track (gespann, sidecar version): 1070mm
50k WW2 photo of BMW-R12 Wehrmacht gespann21k WW2 photo of early BMW-R12 sidecar, 9th company of 25th Infantry Regiment79k 1943 photo of BMW-R12, USSRRoad clearance (solo): 120mm
Road clearance (sidecar): 245mm
Carburetter: Amal 6/406 SP and
6/407 SP (by other source - Sum)
Starter: 45/70 Watt
Battery: 6 Volt 7 Ah
Clutch: dry single plate
Gearbox: 4-speed
Ratios:
I - 3,18; II - 2,06; III - 1,42, IV - 1,09
Cardan
Transmission ration: solo - 4,07 (14 : 57),
gespann - 4,75 (12 : 57),
heer (military) - 5,18 (11 : 57)
Pressed steel frame
35k WW2 photo of Luftwaffe BMW-R12, Afrikakorps25k WW2 photo of Luftwaffe BMW-R12, Afrikakorps45k WW2 photo of BMW-R12Telescope front fork
Rear wheel without dampers
Foot brake: lever to rear wheel
Hand brake: cable to front wheel
Turning radius: 2,25m (left), 1,8m (right)
Weight (solo): 188 kg
Maximal speed: 125 km/h (civilian);
100 km/h (Wehrmacht solo);
85 km/h (Wehrmacht gespann)
Tyres: 3,50x19 or 4,00x19 inches
Tyre pressures, atm.: front - 1,4
(with sidecar - 1,4); rear - 1,5
(with sidecar - 1,9, for three - 2,3)
Fuel tank capacity: 14 L
Fuel consumption: 4,4 L/100km (civilian); 5,5 L/100km (Wehrmacht solo); 6,5 L/100km (Wehrmacht gespann).
27k WW2 photo of BMW-R12 Wehrmacht gespann66k WW2 photo of BMW-R12 Wehrmacht gespann45k WW2 photo of BMW-R12 Wehrmacht gespannOil for engine, gearbox and cardan - SAE
40 (Summer), to change after every 2000
km, to change oil filter every 12.000 km.
Water ford depth: 250mm
BMW-R12 is most frequent BMW in
Russia (on my estimation - few hundreds
or even thousand), although R35 (before
1945), R71, R75 and others are also very
popular.

Photos are from:
eBay Deutschland.
Militär Fordons Historiska Föreningen
(Sweden),

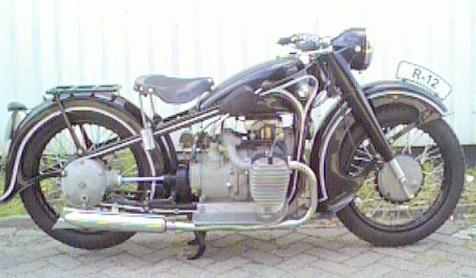

Investment Bikes,

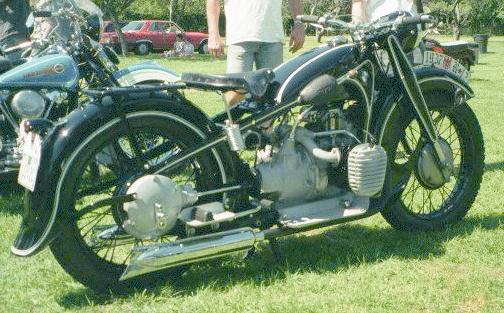

33k WW2 photo of BMW-R1265k WW2 photo of BMW-R12 Wehrmacht gespann, 9th company of 25th Infantry Regiment137k WW2 photo of BMW-R12 Wehrmacht gespannDmitriy Nikelberg, New York, USA
(1937 civilian R12),

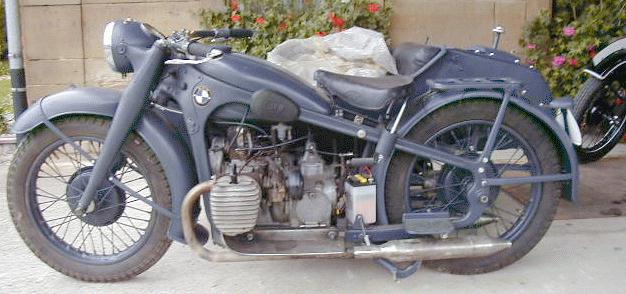

Vintage Imports,
Motorrad Markt magazine, Germany,
Bator International,
www.michaelsmotorcycles.com.

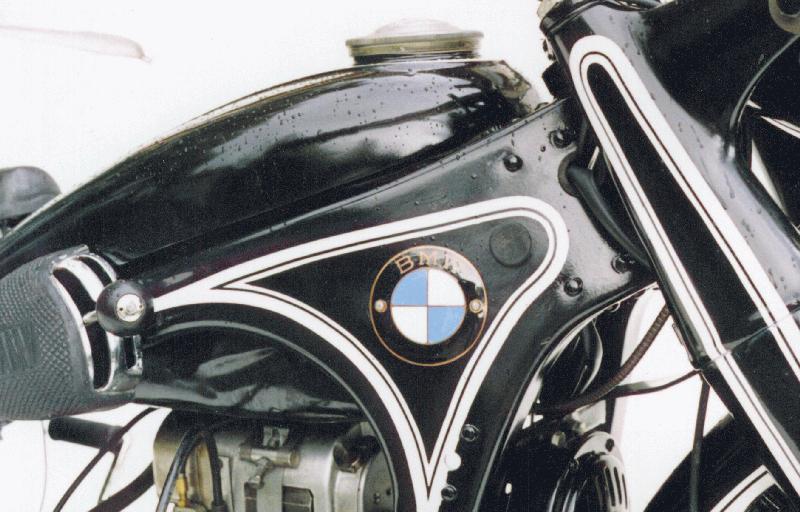

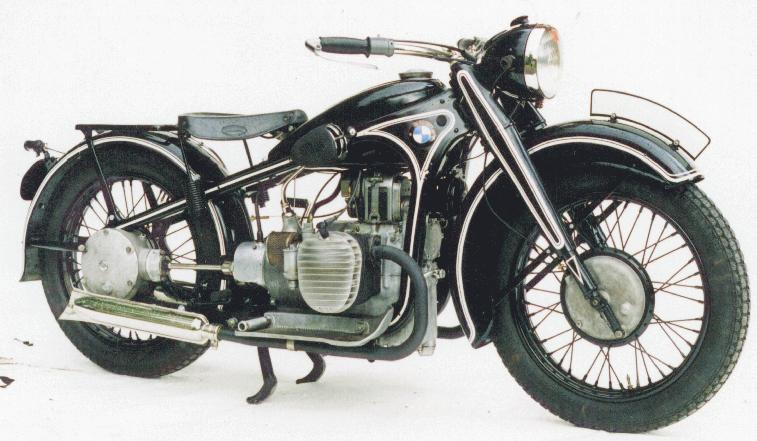

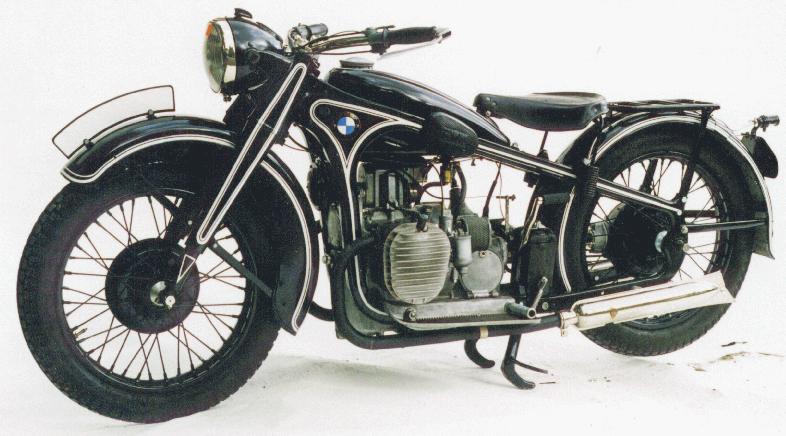

Esko Järvinen, Vammala, Finland (1937
civilian R12 is almost restored by Esko,
the only missing part is air filters. May be
you can help? (24 X 2001)).
Thanks for help to Vladimir Kolotovkin
(Moscow, Club RKKA).

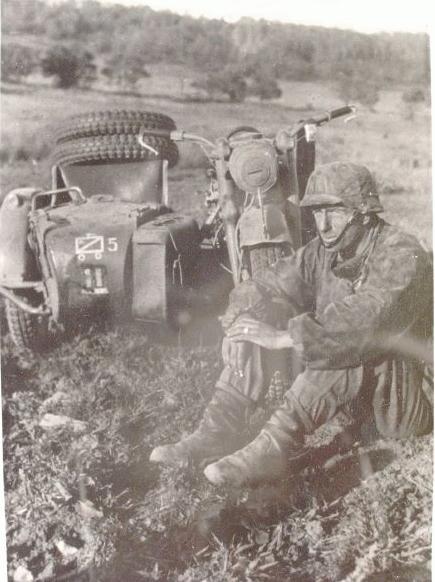

32k WW2 photo of BMW-R12 Wehrmacht gespann44k WW2 photo of BMW-R12 of 23th tank division, Laux66k WW2 photo of BMW-R12 Wehrmacht gespann40k WW2 photo of early BMW-R12 Polizei, Essen













24k WW2 photo of early BMW-R12 Wehrmacht gespann22k WW2 photo of BMW-R12 Wehrmacht gespann38k WW2 photo of BMW-R1221k WW2 photo of BMW-R12 Wehrmacht gespann










34k WW2 photo of BMW-R1269k photo of 1937 BMW-R12 civilian31k WW2 photo of BMW-R12 Wehrmacht gespann39k WW2 photo of BMW-R12, Ostfront









26k WW2 photo of BMW-R12, Ostfront61k WW2 photo of BMW-R12 with Maxim MG34k WW2 photo of early BMW-R12 Luftwaffe gespann29k photo of 1939 civilian BMW-R12








28k WW2 photo, BMW-R12 of 1st Tank Regiment22k WW2 photo of BMW-R12, SS-Division Nord120k WW2 photo of BMW-R12 Wehrmacht gespann28k WW2 photo of BMW-R12 Wehrmacht gespann

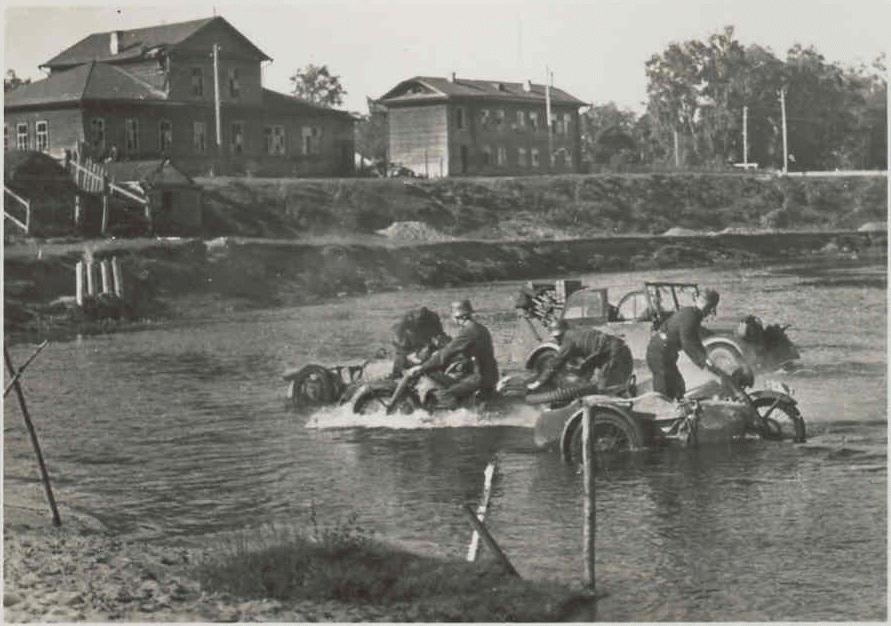

34k WW2 photo of BMW-R12 Wehrmacht gespann57k WW2 photo of BMW-R1279k WW2 photo of BMW-R12, Mercedes-Benz 170VK, Lushno, Novgorod region, USSR52k WW2 photo of BMW-R12 moto show








31k WW2 photo of BMW-R12 Wehrmacht gespann18k WW2 photo of BMW-R12 Wehrmacht solo42k 15 III 1939 photo of BMW-R12 Wehrmacht gespann74k WW2 photo of BMW-R12 Wehrmacht gespann, Matford F917WS

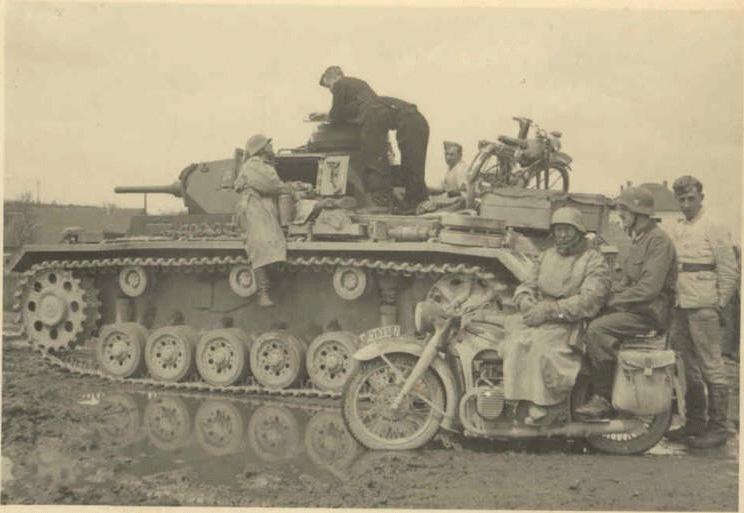

18k WW2 photo of Luftwaffe BMW-R1255k WW2 photo of BMW-R12, Balkan49k WW2 photo of BMW-R12, Balkan45k WW2 photo of BMW-R12, Balkan
